Body Electrical System

Removal

Front Speaker
1. Remove the front door trim.
.

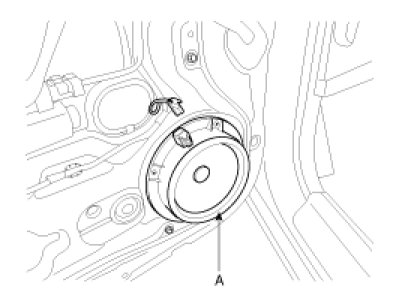

2. Remove the front speaker (A) after removing 4 rivets.





Rear Speaker
1. Remove the rear door trim.
.
2. Remove the rear speaker (A) after removing 4 rivets.





External Amplifier
1. Remove the right side trunk trim and disconnecting the connector
.

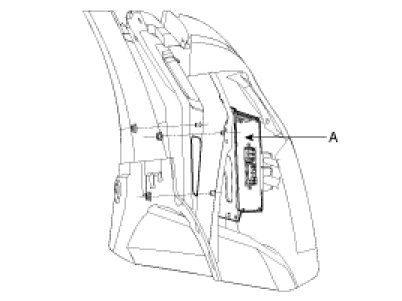

2. Remove the external amplifier (A) after loosening the 3 bolts.





Tweeter Speaker

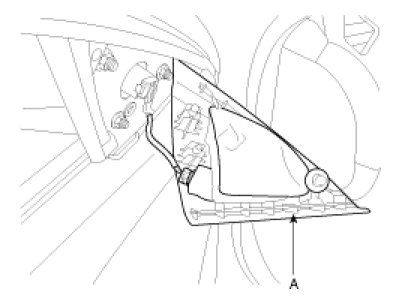

1. Remove the front door delta cover (A).
.
2. Remove the tweeter speaker (A) after disconnecting the connector.





SDARS Roof Antenna
1. Remove the rear headlining.

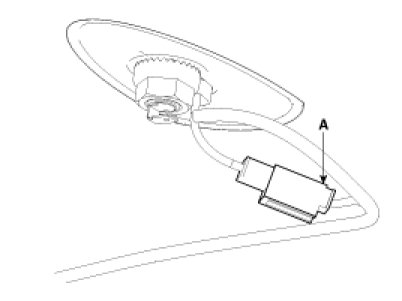

2. Disconnect the antenna connector(A) to the feeder cable connectors.




3. Disconnect the 1p power connector from the roof antenna.

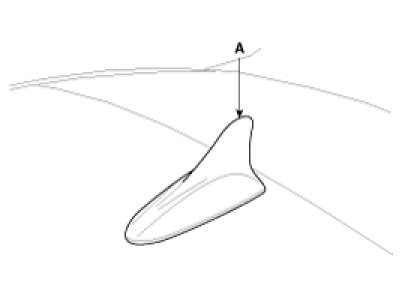

4. Remove the SDARS roof antenna(A) from the roof panel hole after loosening a nut.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door delta cover.

External Amplifier
1. Install the external amplifier and connect the external amplifier connector.
2. Install the right side trunk trim.

SDARS Roof Antenna
1. Reassemble the roof antenna and connect the connector and antenna jack.
2. Reassemble the rear headlining.
