Alarm Module: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad. .

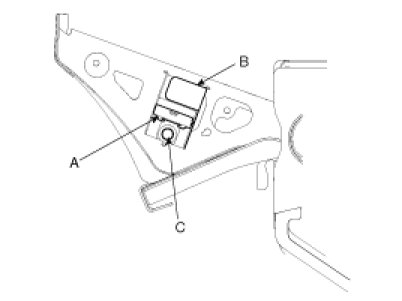

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) and bracket (B)after loosening a shear bolt (C).

NOTE:
- Punch the shear bolt using a centering punch.
- And drill its head off with a drill bit.
- Becarefull not to damage the SMARTRA unit.





Installation

1. Install the immobilizer control unit and bracket after connecting the unit connector.

NOTE:
- Tighten the shear bolt until the bolt head break off.

2. Install the crash pad.
