Repair procedures (A4CF2)

Removal

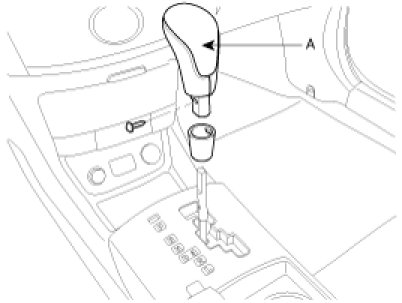

1. Remove the shift lever knob (A).

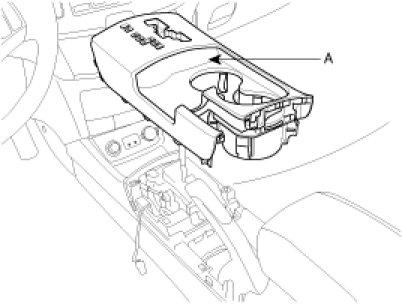

2. Remove the center console cover (A).




3. Remove the center console.

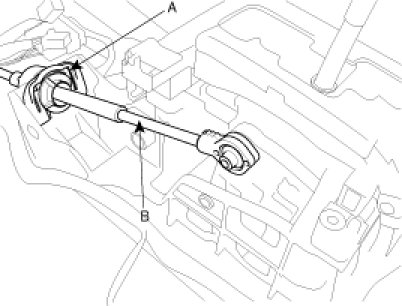

4. Remove the control cable assembly (B) by removing the clamp (A).

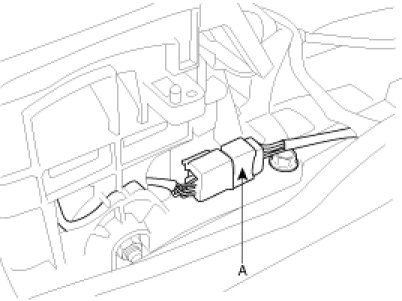

5. Disconnect the interlock switch connector (A).

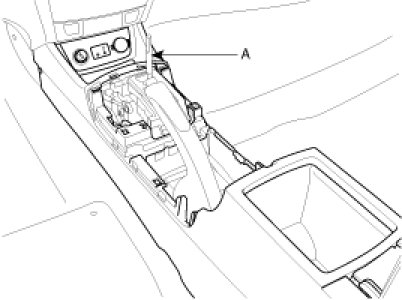

6. Remove the shift lever assembly (A).




7. Remove the retainer (A) and nuts (B).

NOTE:
In case, remove the crush pad and cowl cross bar.




8. Remove the control cable assembly from the transaxle.
9. Remove the control cable assembly.

Installation

1. Install the control cable assembly to transaxle.
2. Install the retainer (A) and nuts (B).

Tightening torque :
12-15Nm (1.2-1.5kgf.m, 8.7-10.8Ib-ft)


NOTE:
In case, install the crush pad and cowl cross bar.




3. Install the shift lever assembly (A).

Tightening torque :
9-14Nm (0.9-1.4kgf.m, 8.7-10.8Ib-ft)





4. Connect the interlock switch connector (A).




5. Install the control cable assembly (B) by installing the clamp (A).




6. Install the center console.




7. Install the center console cover (A).




8. Install the shift lever knob (A).
