Crankshaft

Crankshaft Journal Diameter & Limits

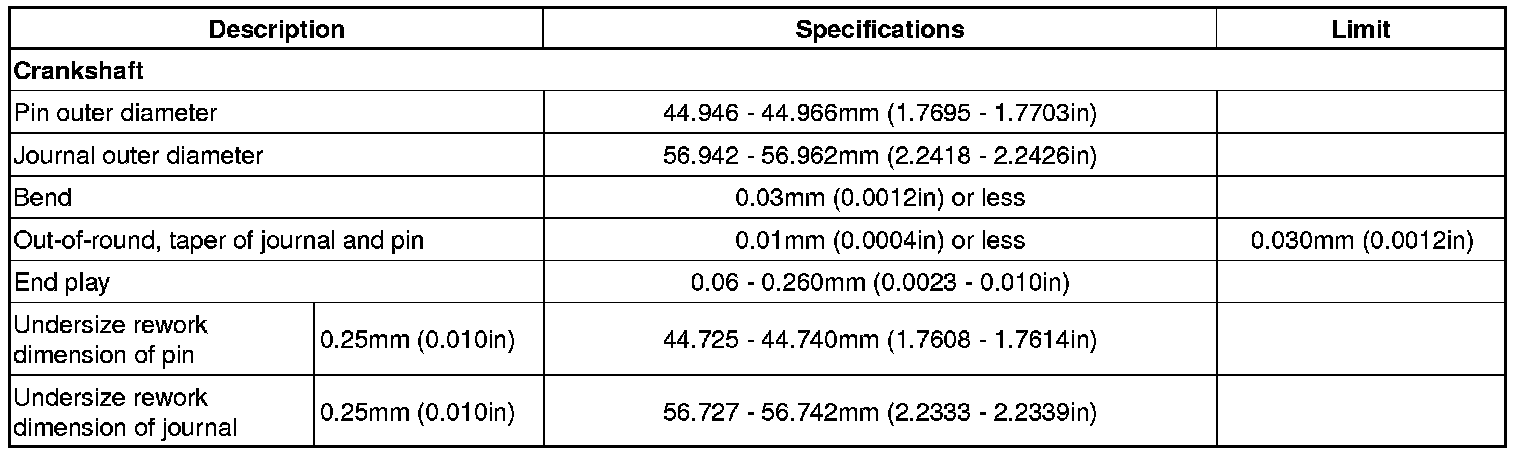

Crankshaft Specifications

Reinstall the bearings and caps, then torque the bolts.

Tightening torque 27.5 - 31.4 Nm (2.8 - 3.2 kgf.m, 20.3 - 23.11 lb-ft) + 60° ~ 64°

Main journal diameter 56.942 - 56.962 mm (2.2418 - 2.2426 in)
Crank pin diameter 44.946 - 44.966 mm (1.7695 - 1.7703 in)

Check crankshaft end play

Standard end play 0.06 - 0.26 mm (0.0023 - 0.010 in)
Limit 0.30 mm (0.0118 in)

Main journal diameter 56.942 - 56.962 mm (2.2418 - 2.2426 in)
Crank pin diameter 44.946 - 44.966 mm (1.7695 - 1.7703 in)
