Valve Clearance: Specifications

Valve Clearance






Valve Clearance

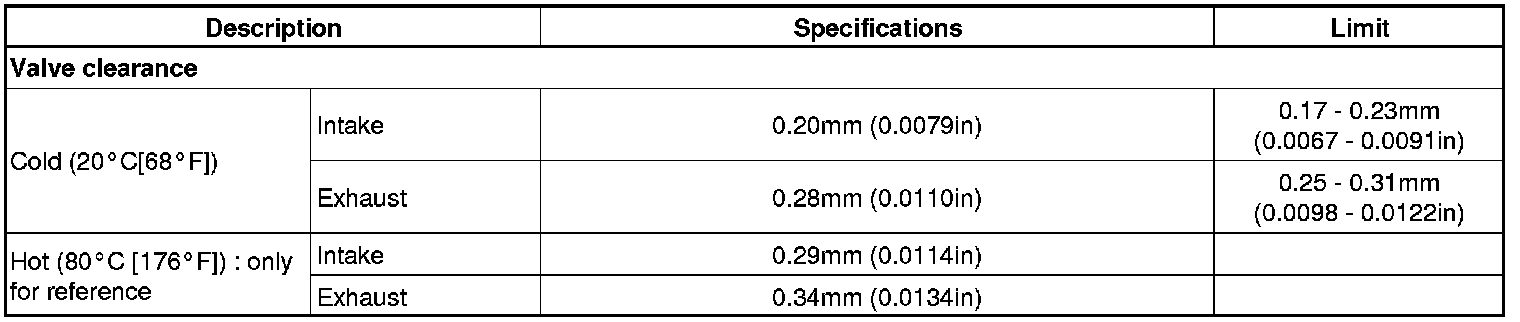

Valve clearance
Specification
Engine coolant temperature 20 °C [68 °F]
Intake 0.20 mm (0.0079 in.)
Exhaust 0.28 mm (0.0110 in.)

Engine coolant temperature 80 °C [176 °F]
Intake 0.29 mm (0.0114 in.)
Exhaust 0.34 mm (0.0134 in.)

Limit
Intake 0.17 - 0.23 mm (0.0067 - 0.091 in.)
Exhaust 0.25 - 0.31 mm (0.0098 - 0.0122 in.)
