Repair Procedures

Radiator
1. Drain the engine coolant.
2. Remove the upper and lower radiator hoses (A, B), and ATF cooler hoses.

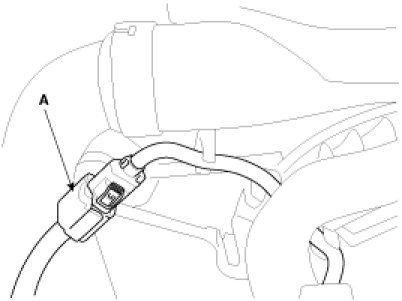

3. Disconnect the fan motor connector(A).




4. Separate the air conditioner condenser with radiator.
(1) Remove the battery and battery tray.
(2) Remove the air duct and make task space.
5. Remove the radiator upper bracket (A), then pull up the radiator.





Installation

Radiator
1. Install the cooling fan to the radiator.
2. Install the radiator at the air conditioner condenser.
Installation is in the reverse order of removal.
3. Connect the fan motor connector(A).




4. Install the upper and lower radiator hoses(A, B), and ATF cooler hoses.




5. Fill with engine coolant.

Quantity :
6.5 - 6.6L (6.87 - 6.97US qt, 5.72 - 5.81lmp qt)


6. Start engine and check for leaks.
