ABS(Anti-Lock Brake System)

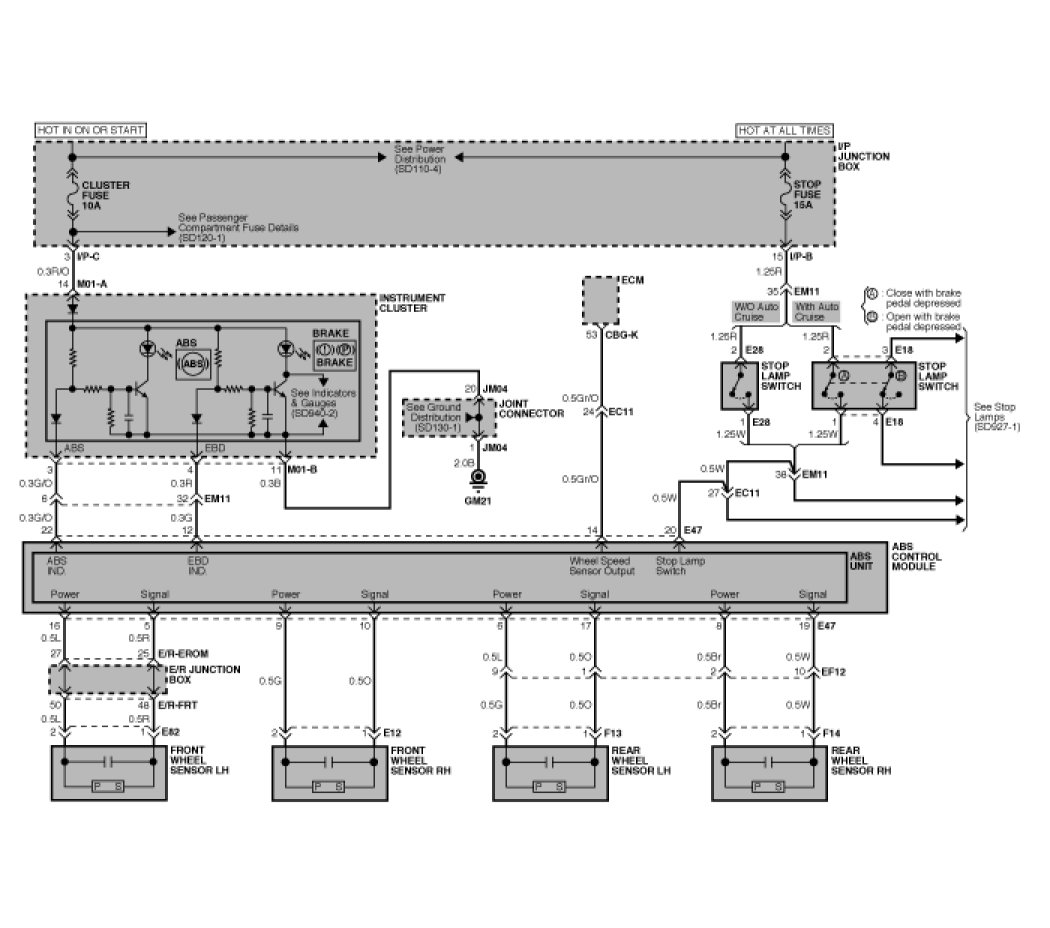

ABS Circuit Diagram(1)

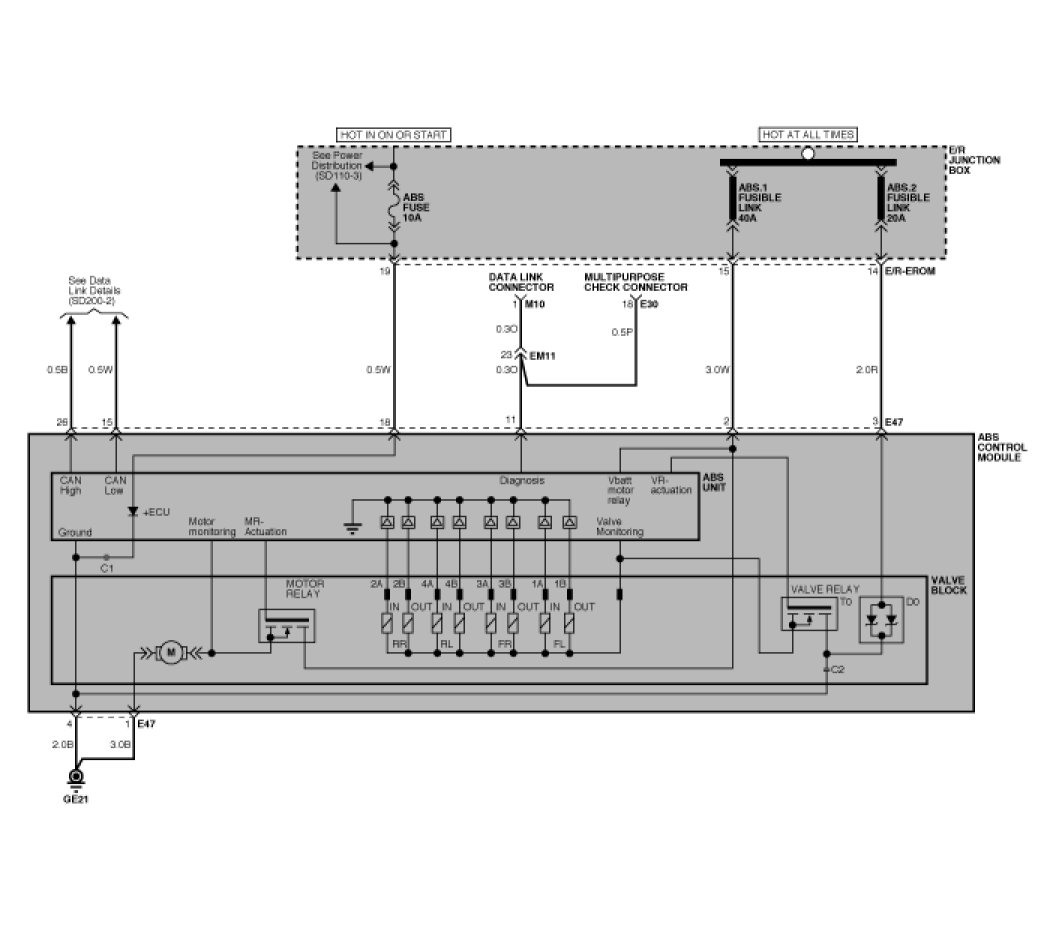

ABS Circuit Diagram(2)

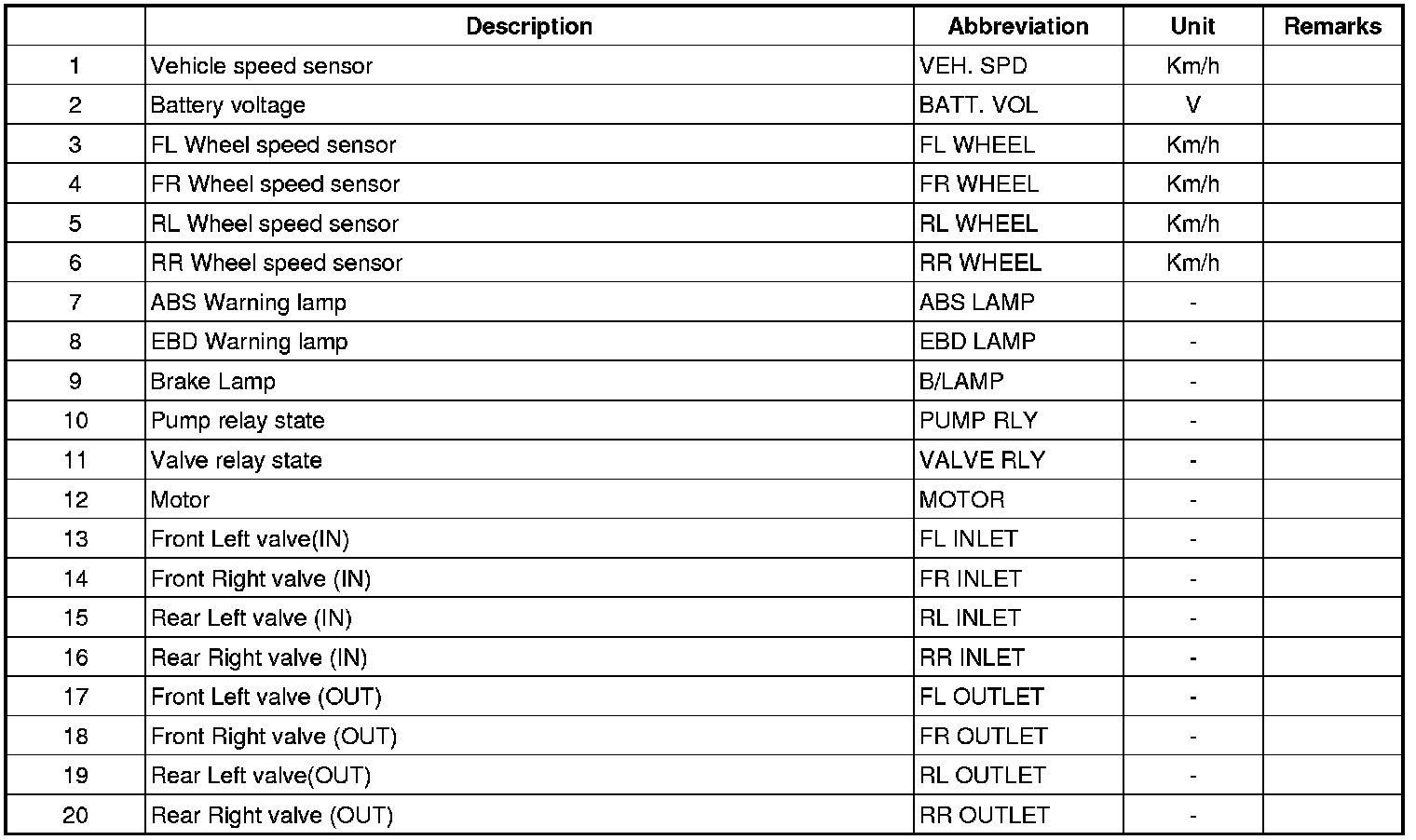

Sensor Output On Scan Tool(ABS)
