Interior - Sun Visor Vanity Lamp Switch Change
Group ELECTRICALNumber 09-BE-021
Date AUGUST, 2009
Model
2009 ELANTRA
Subject
SUNVISOR VANITY MIRROR LAMP SWITCH CHANGE
DESCRIPTION:

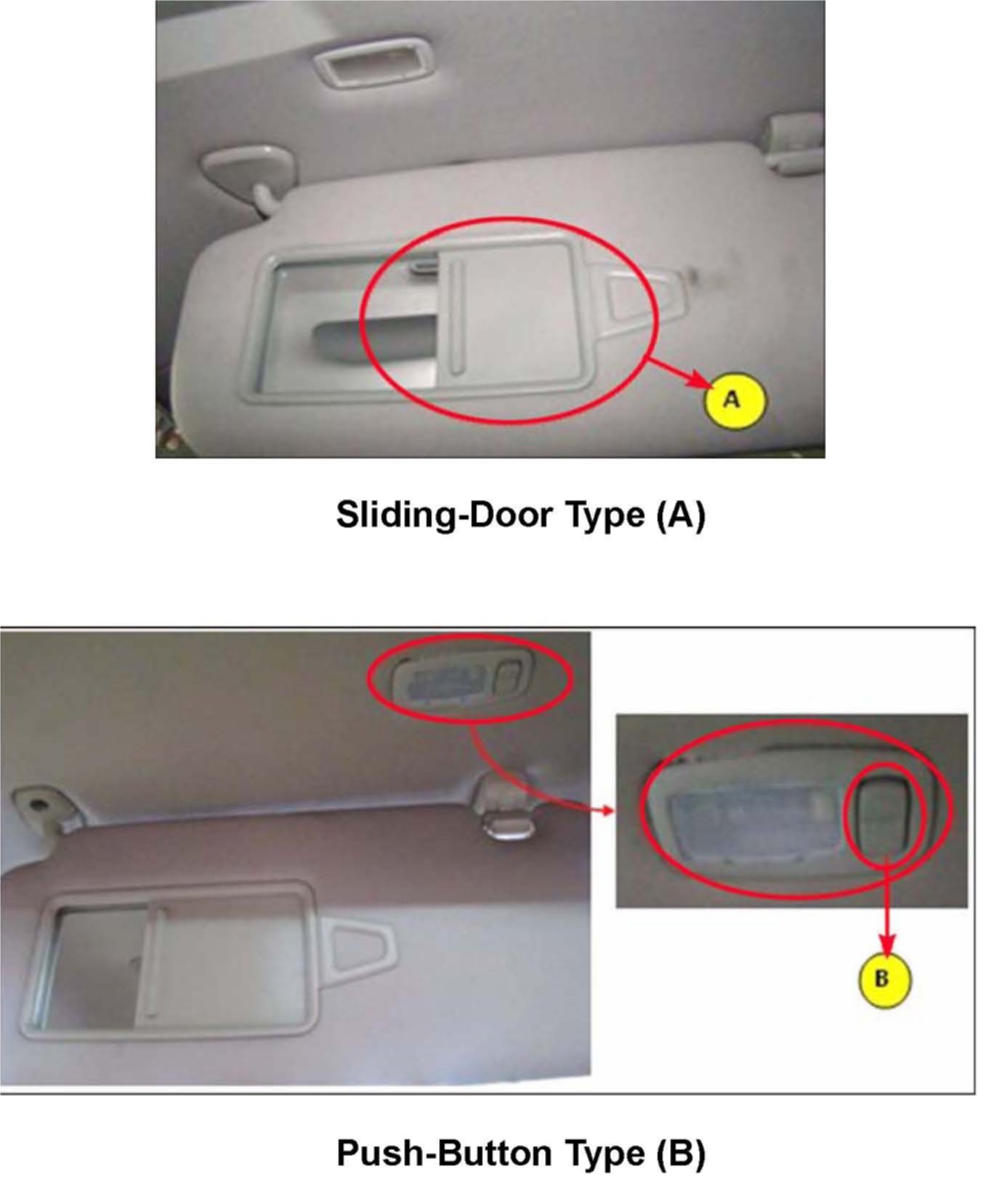

Beginning in March 3rd, 2009 production vehicles, the sunvisor vanity mirror lamp switch in vehicles without a sunroof have been changed from a sliding-door type to a push-button type.
This bulletin provides the revised Electrical Troubleshooting Manual (ETM) pages reflecting the change in the 2009 Elantra sunvisor vanity mirror lamp switch. The ETM pages in the hmaservice.com website have been updated to reflect the change.
VEHICLES AFFECTED:
2009 Elantra vehicles produced beginning March 3rd, 2009.
REVISED SCHEMATIC DIAGRAMS:
See the revised ETM pages shown above relating to the 2009 Elantra sunvisor vanity mirror lamp switch change.
