Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics
Inspection
1.

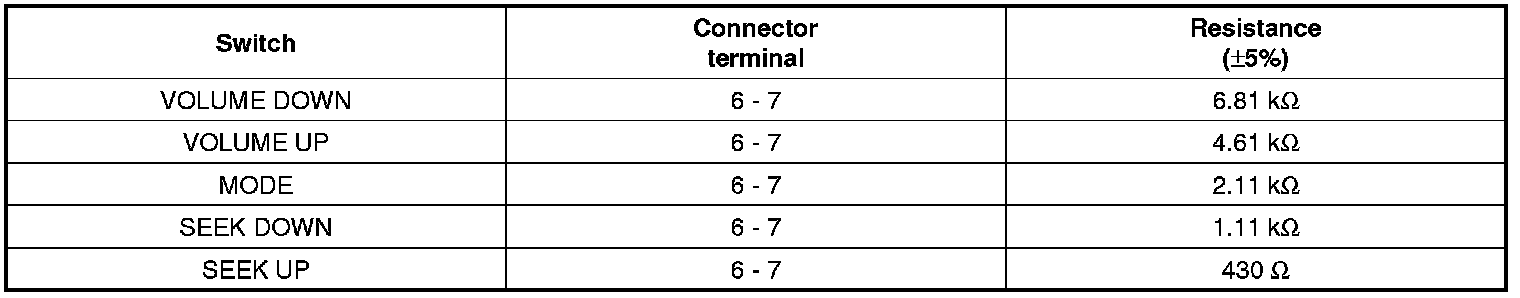

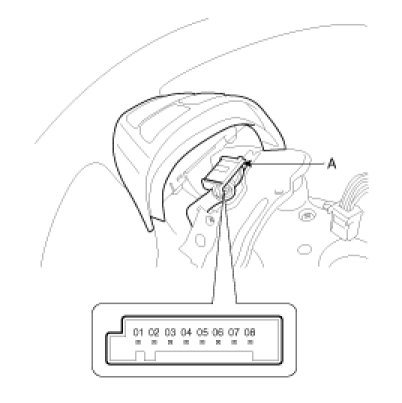

Check for resistance between No.6 and No.7 terminals in each switch position.
