Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect ISCA valve connector

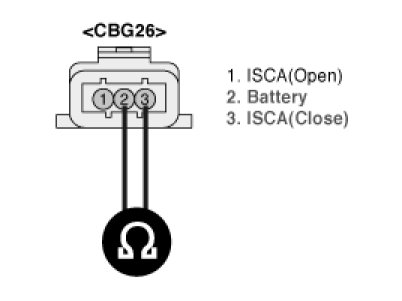

3. Measure resistance between terminals 2 and 3 of the valve connector (Component side)
Specification :









4. Is resistance within the specification ?
