General Information

Component Location





General Description

The Automatic Transmission changes the gear position of the transmission by utilizing a combination of Clutches and Brakes, which are controlled by solenoid valves. The HIVEC Automatic Transmission consists of a: LR (Low and Reverse Brake), 2-4 (2-4 Brake), UD (Under Drive Clutch), OD (Over Drive Clutch).

DTC Description

The PCM/TCM checks the Low and Reverse Control Signal by monitoring the feedback signal from the solenoid valve drive circuit. If an unexpected signal is monitored (for example, high voltage is detected when low voltage is expected, or low voltage is detected when high voltage is expected), the PCM/TCM judges that the Low and Reverse control solenoid circuit is malfunctioning and sets this code.

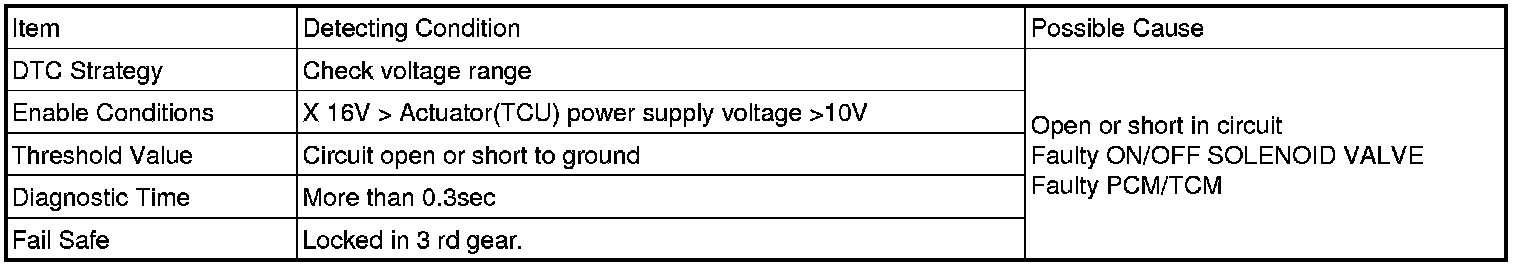

DTC Detecting Condition





Schematic Diagram





Specification

Solenoid Valve for Pressure Control
- Sensor type : Normal open 3-way
- Operating temperature : -30 °C ~ 130 °C
- Frequency :PCSV-A,B,C,D :50 Hz (at the ATF temp. -20 °C above)
VFS : 400 - 1000
** KM series : 35Hz
- Internal resistance : 3.5 ± 0.2 Ohms (20 °C)
- Surge voltage : 56V

Signal Waveform
