W/Harness Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect PCSV connector

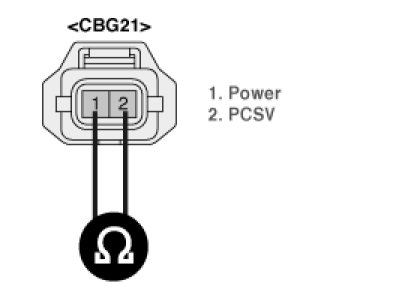

3. Measure resistance between terminals 1 and 2 of the PCSV connector (Component side)









4. Is resistance within the specification ?
