Component Inspection





Component Inspection

1. Measure resistance between terminals 1 and 2 of OTS connector (Component side).

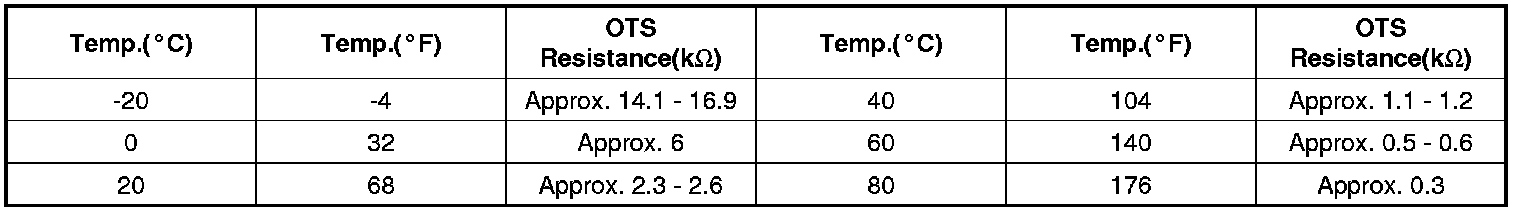

Specification :









2. Is resistance within specification ?
