System Inspection

System Inspection

Air Cleaner Inspection
1. Check air cleaner condition. Is air cleaner clogged with dirt ?





Air Leakage Inspection
1. Check intake tube, breather hose and MAFS for source of any air leaks. Are there any cracks in intake tube, MAFS or breather hose
2. Verify oil cap and dipstick are properly installed and oil cap screwed on completely.
3. Has a problem been found ?





TPS INSPECTION
1. Ignition "ON" & Engine "OFF"
2. Install Scantool and monitor the "THROTTLE P.SENSOR (V)" parameter on the Scantool data list.

Specification : Approx. 0.20 - 0.47V (Closed throttle Valve) / Approx 4.3 - 4.7V (Wide Open Throttle)

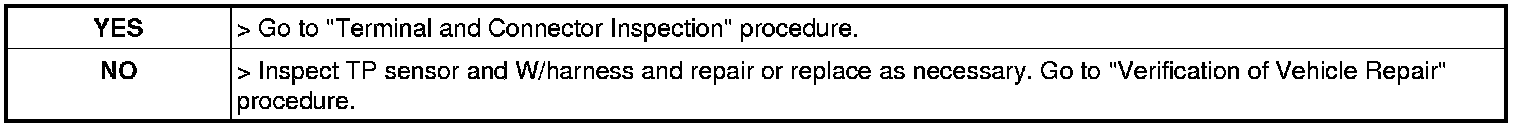

3. Is "THROTTLE P.SENSOR (V)" within the specification ?
