Engine Control System

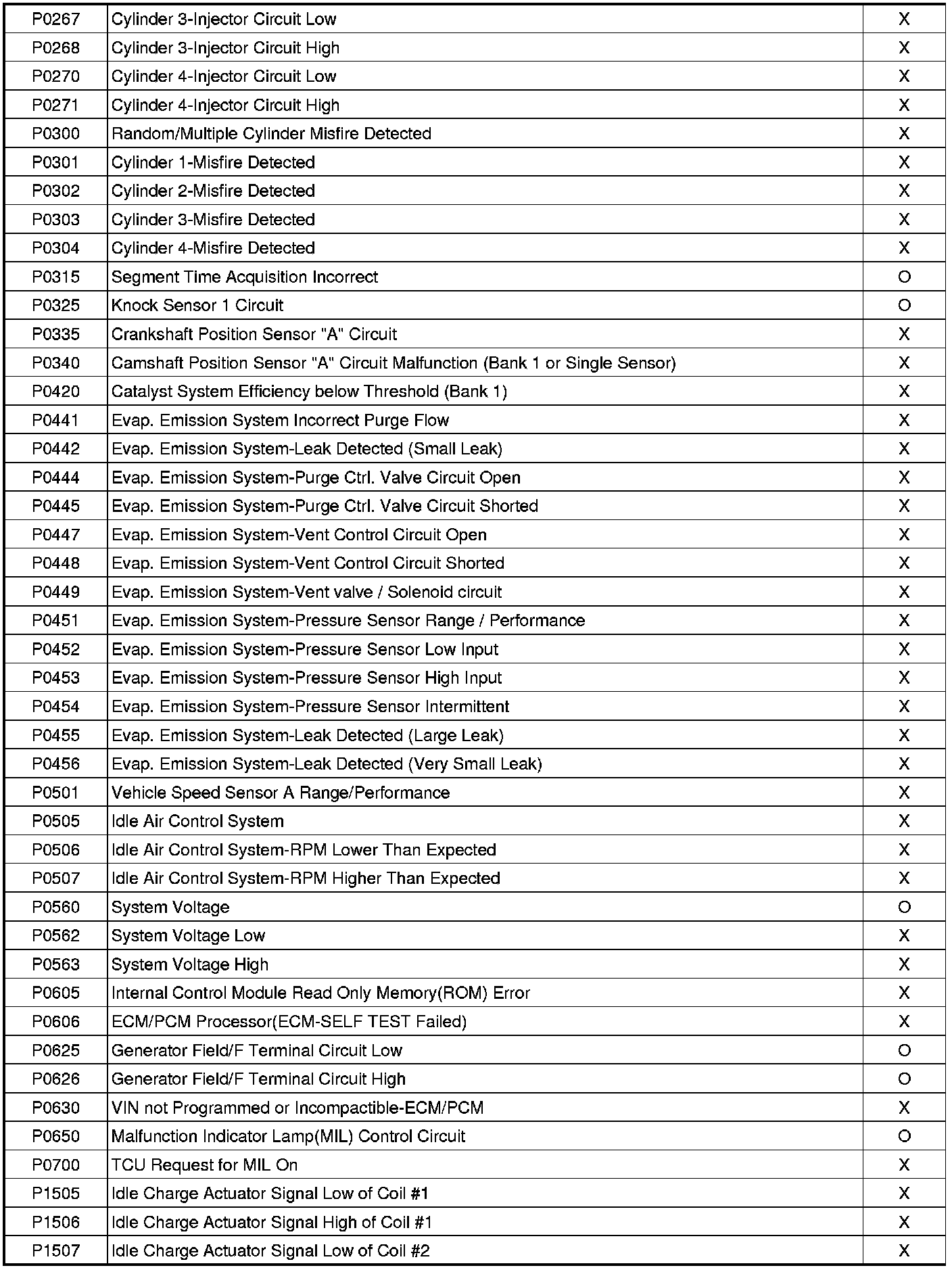

Inspection Chart For Diagnostic Trouble Codes (DTC)













NOTE:
X: MIL ON & MEMORY
O: MIL OFF & MEMORY
