Electric Power Steering System

Troubleshooting

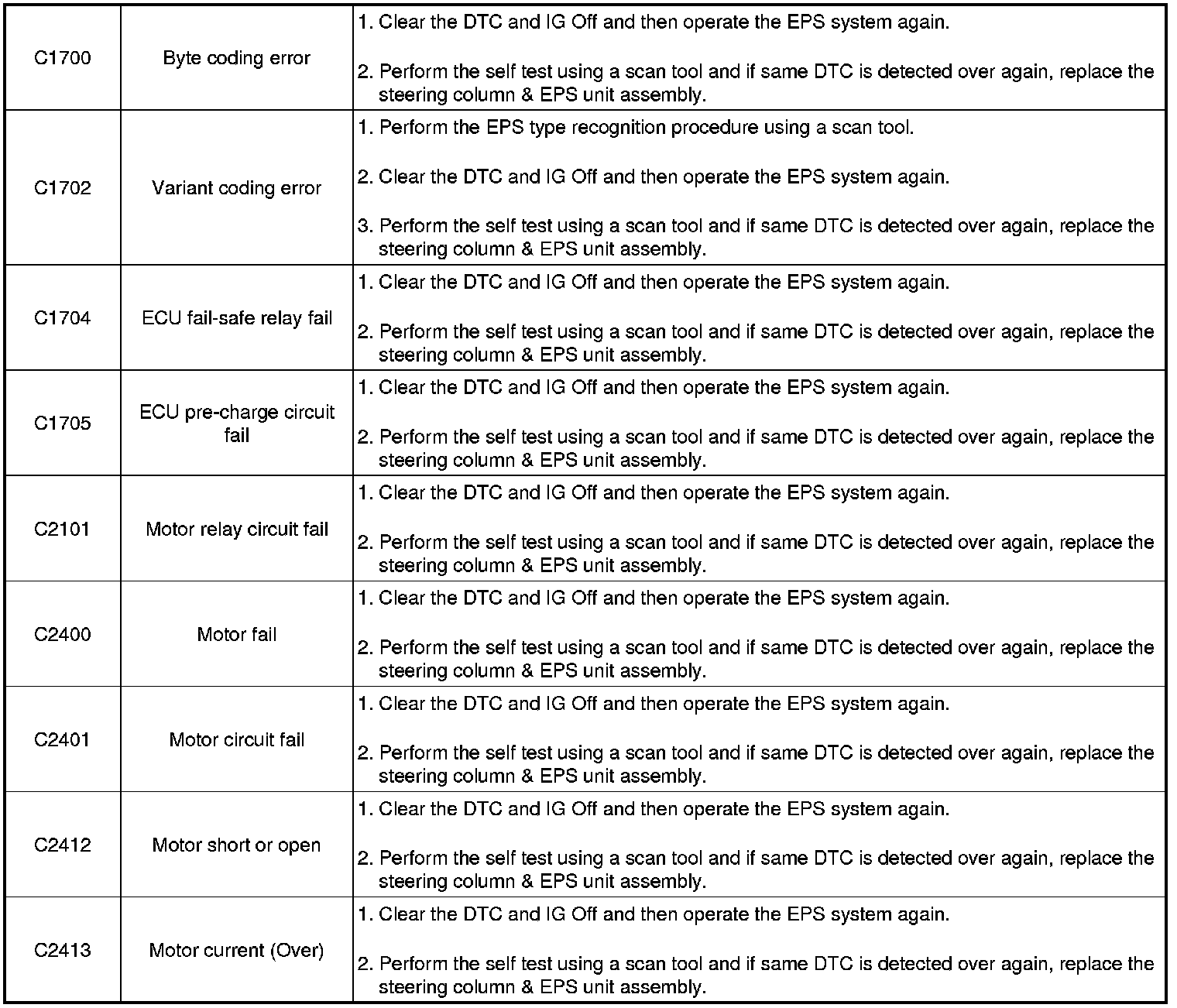

When DTC for parts in EPS unit assembly is detected by the system, clear the DTC and then inspect problem for detected DTC. Next, perform the self test using a scan tool and if the same DTC detected over again, do not repair the parts but replace the steering column & EPS unit assembly. After replacing the steering column & EPS unit assembly, perform ASP (Absolute Steering Position) calibration and EPS type recognition procedure using a scan tool.
