General Information

Component Location





General Description

The ESC is a system to stabilize a car in an emergency (kind of under steering or over steering) by supplying appropriate wheel with braking pressure according to signal of yaw & G sensor, SAS, WSS, pressure sensor.
ESC system help to escape from facing in an accident.

DTC Description

Under normal conditions, the inlet valves of all four wheels are not closed during control for longer than 1.28s or If the controller requests pressure-hold or pressure-decrease for longer than 1.28s, a fault is detected.
The ABS/ESC warning lamp is turned ON and the EBD warning lamp is turned OFF.

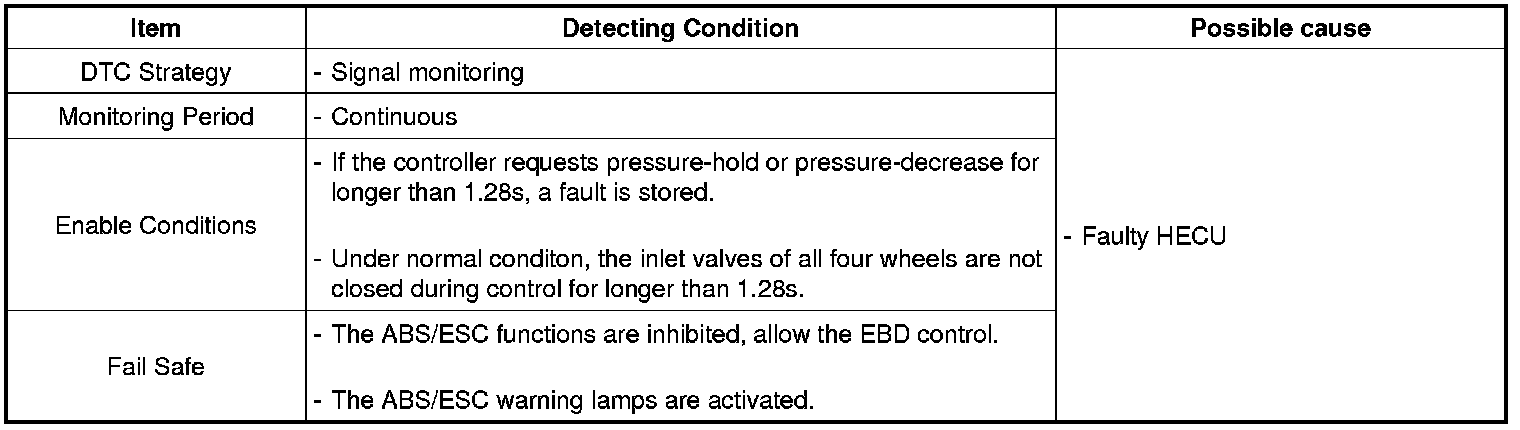

DTC Detecting Condition





Schematic Diagram
