Component Inspection

Component Inspection

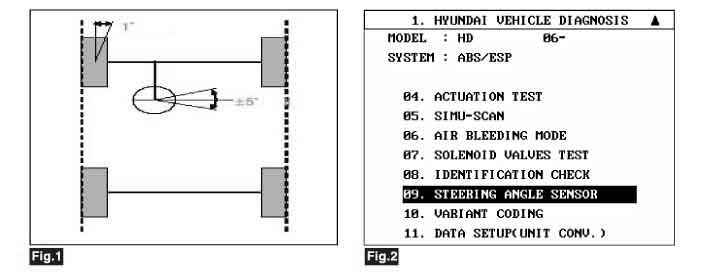

1. Line up wheels like figure 1.
(1) Perform the wheel alignment.
(2) Line up the steering wheel in a straight.
(3) Go ahead and Go back the vehicle 2 - 3 times without holding steering wheel.
2. Connect scantool to Data Link Connector (DLC).
3. Go in Anti-Rock brake system. (figure 2).
4. Perform steering angle sensor calibration. (figure 3).
5. Disconnect scantool.
6. Check the condition of SAS zero point adjustment by operating the vehicle (turn right and left at least 1 time)








7. Is zero point adjustment completed?
