Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Turn the steering wheel to the left or right.
4. Monitor the "STEERING ANGLE SNSR" parameters on the Scantool.

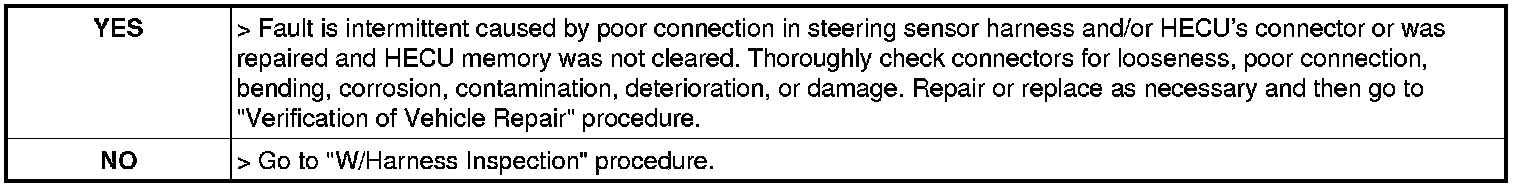

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?
YES
(1) Connect scantool to Data Link Connector (DLC).
(2) Ignition "ON" & Engine "ON".
(3) Turn the steering wheel to the full left or right position.
(4) Monitor the "STEERING ANGLE SNSR" parameters on the Scantool.




(5) Is parameter displayed within specifications?





NO
> Go to "W/Harness Inspection" procedure.
6. Perform steering angle sensor calibration.
(1) Ignition "ON" & Engine "OFF".
(2) Line up the steering wheel in a straight.
(3) Connect scantool to Data Link Connector (DLC).
(4) Go in Anti-Rock brake system. (figure 4).
(5) Perform steering angle sensor calibration. (figure 5).
(6) Go to "Component Inspection" Procedure.




7. Whenever steering wheel is turned, is the steering sensor's scantool data changed HIGH/LOW?
