Monitor Scantool Data

Monitor Scantool Data

1. Ignition "ON" & Engine "ON".
2. Connect scantool to Data Link Connector (DLC).
3. Start and drive vehicle in gear and maintain vehicle speed is Approx. 12 km/h. (7 mph)

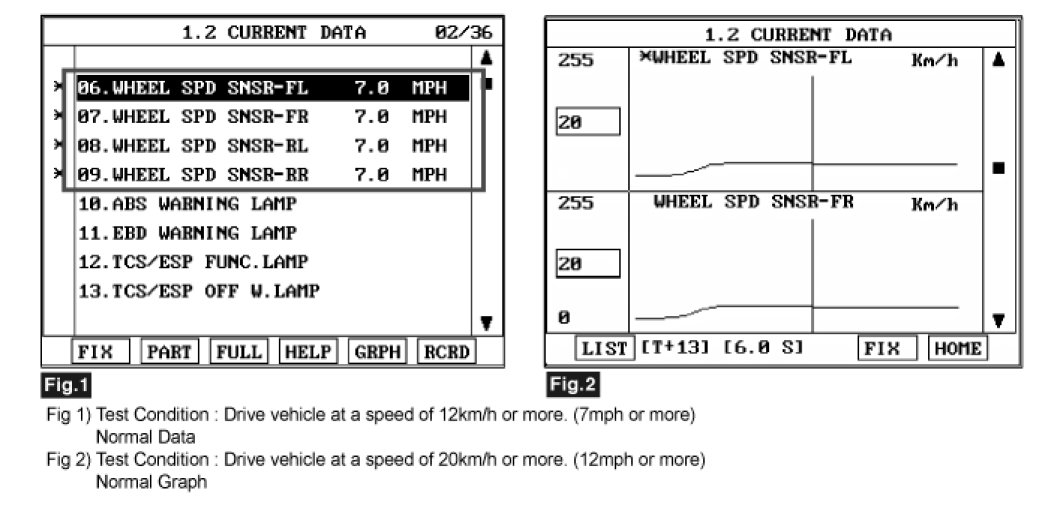

4. Monitor the "WHEEL SPD SENSOR-FL" parameter on the Scantool.

Specification : Compare with another parameters related to wheel speed sensor.
If it is the same as another parameters, it is in normal condition.




5. Is parameter displayed within specifications?
