Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".

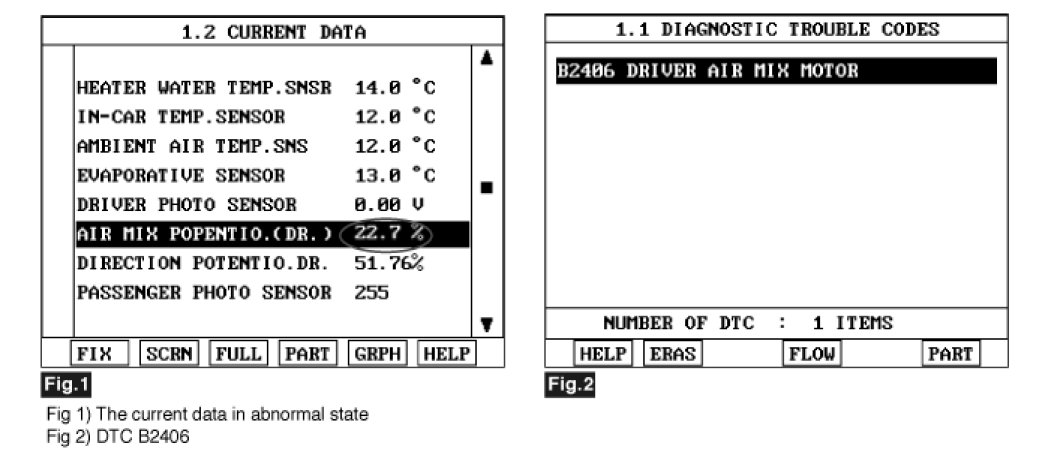

3. Monitor the "DR AIR MIX potentiometer" Parameter on the Scantool. While operating temp switch.




4. Are the DTC B2406 present and is parameter of "DR AIR MIX potentiometer" fixed ?

NOTE:
** There is any fault in DR AIR MIX Motor. If the parameter of "DRIVER AIR MIX DOOR" is 30% or less when the actuator operates to the hot position, or If the parameter is 60% and more when the actuator operates to the cold position.
