Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".
3. Monitor the "WATER TEMP SENSOR" Parameter on the Scantool.

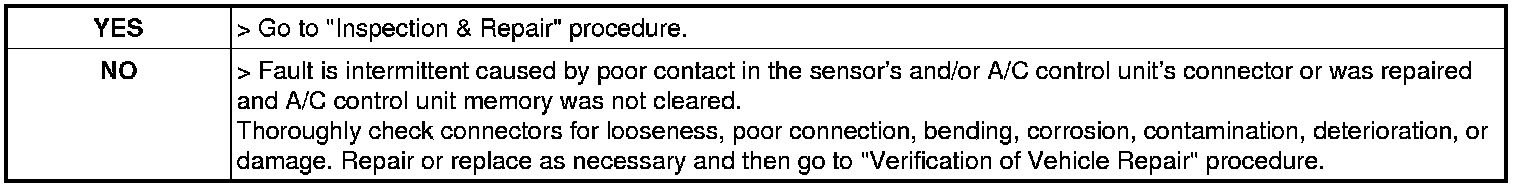

4. Are the DTC B1202 present and is parameter of "WATER TEMP SENSOR" fixed ?

NOTE:
** Parameter of "WATER TEMP SENSOR" will be fixed at 28.4 °F, if there is any fault in WATER TEMP SENSOR
