Center Bearing and Inner Shaft

CENTER BEARING AND INNER SHAFT

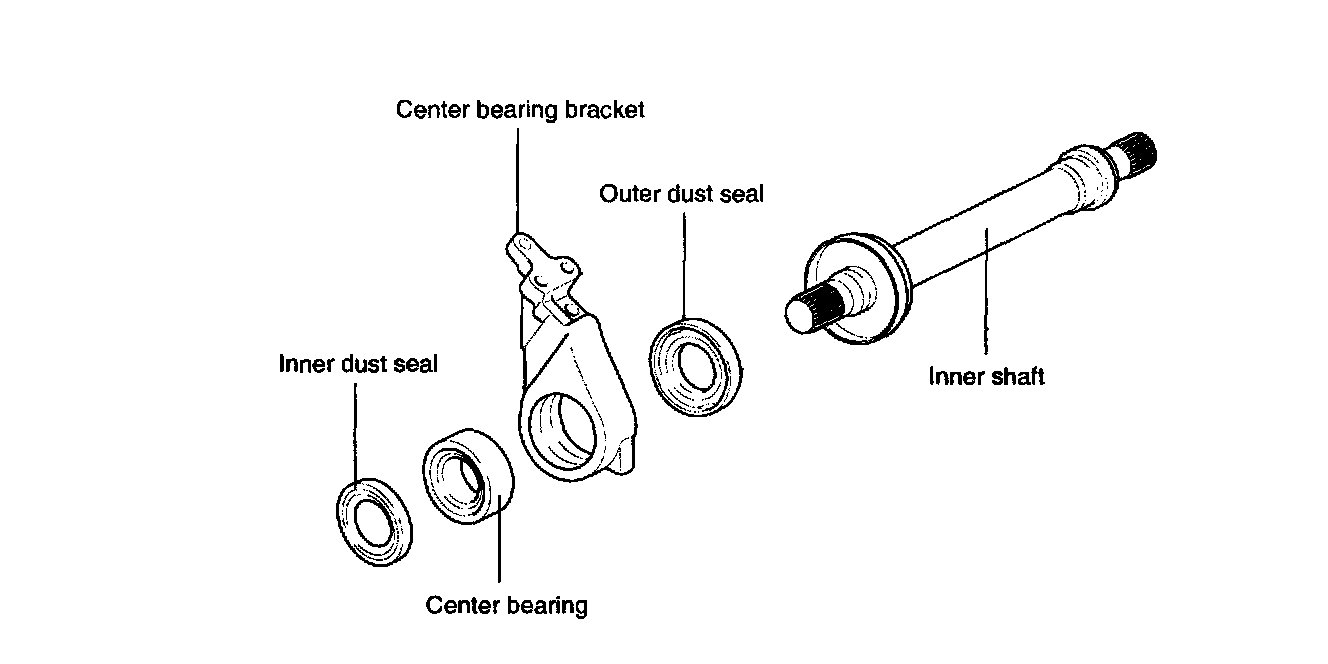

COMPONENTS (2.7L)

DISASSEMBLY

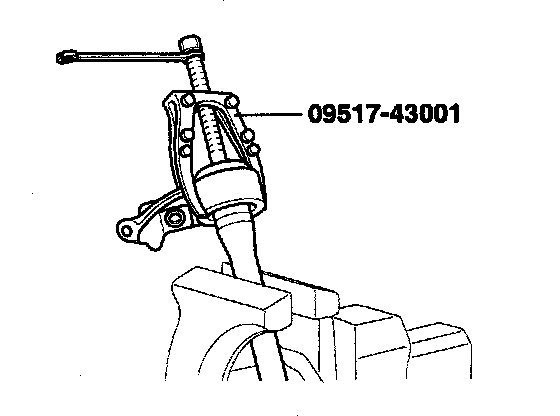

1. Using the special tool (09517-43001), disassemble the center bearing bracket from the inner shaft.

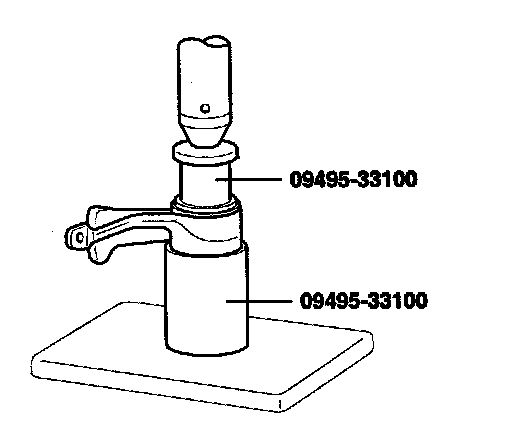

2. Using the special tools (09216-21100, 09495-33100), press out the center bearing from the outside to the inside direction of the center bearing bracket as shown in the illustration.

INSPECTION
1. Check the inner shaft for damage, bending or rust.
2. Check the inner shaft splines for wear or damage.
3. Check the center bearing for scoring, discoloration and roughness of the roller journals moving surfaces.

REASSEMBLY

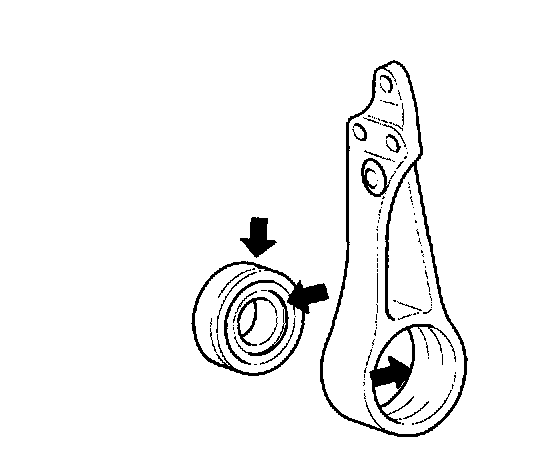

1. Apply multipurpose grease to the center bearing and inside the center bearing bracket.

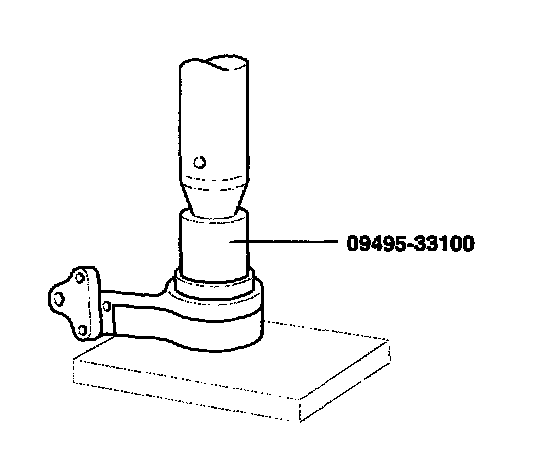

2. Using the special tool (09495-33100), press the center bearing into the center bearing bracket.

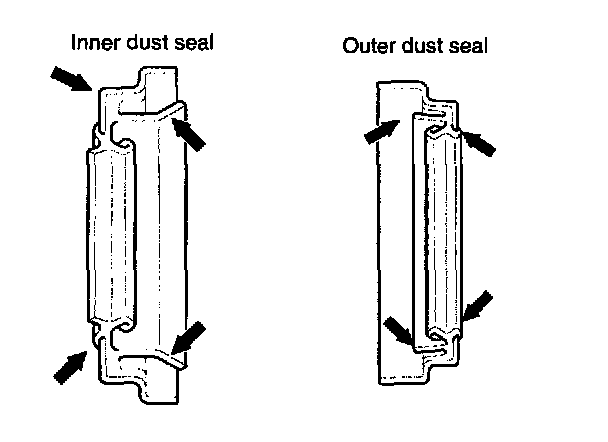

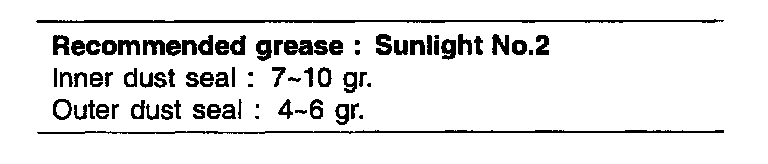

3. Apply multipurpose grease to the rear surface of all dust seals.
4. Install the inner shaft into the center bearing bracket.
