No Start Testing
No Start Testing

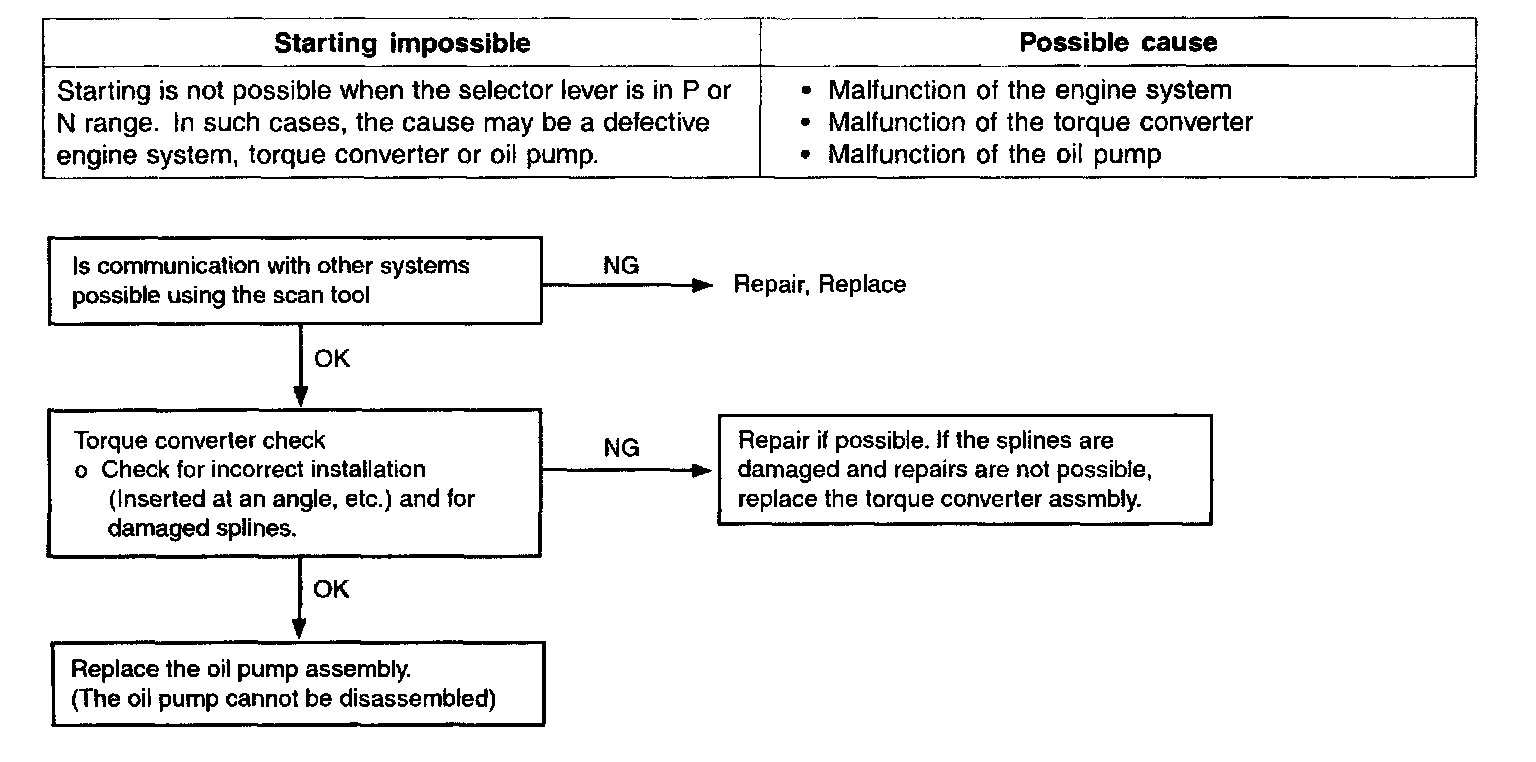

The diagnostics for the symptom of not starting, are found under Diagnosis By Symptom / Inspection Procedure 2 - Starting Impossible.
They are also shown here for your convenience:
