Home >> Hyundai >> 2008 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Elements In Use In Each Gear

Elements In Use In Each Gear

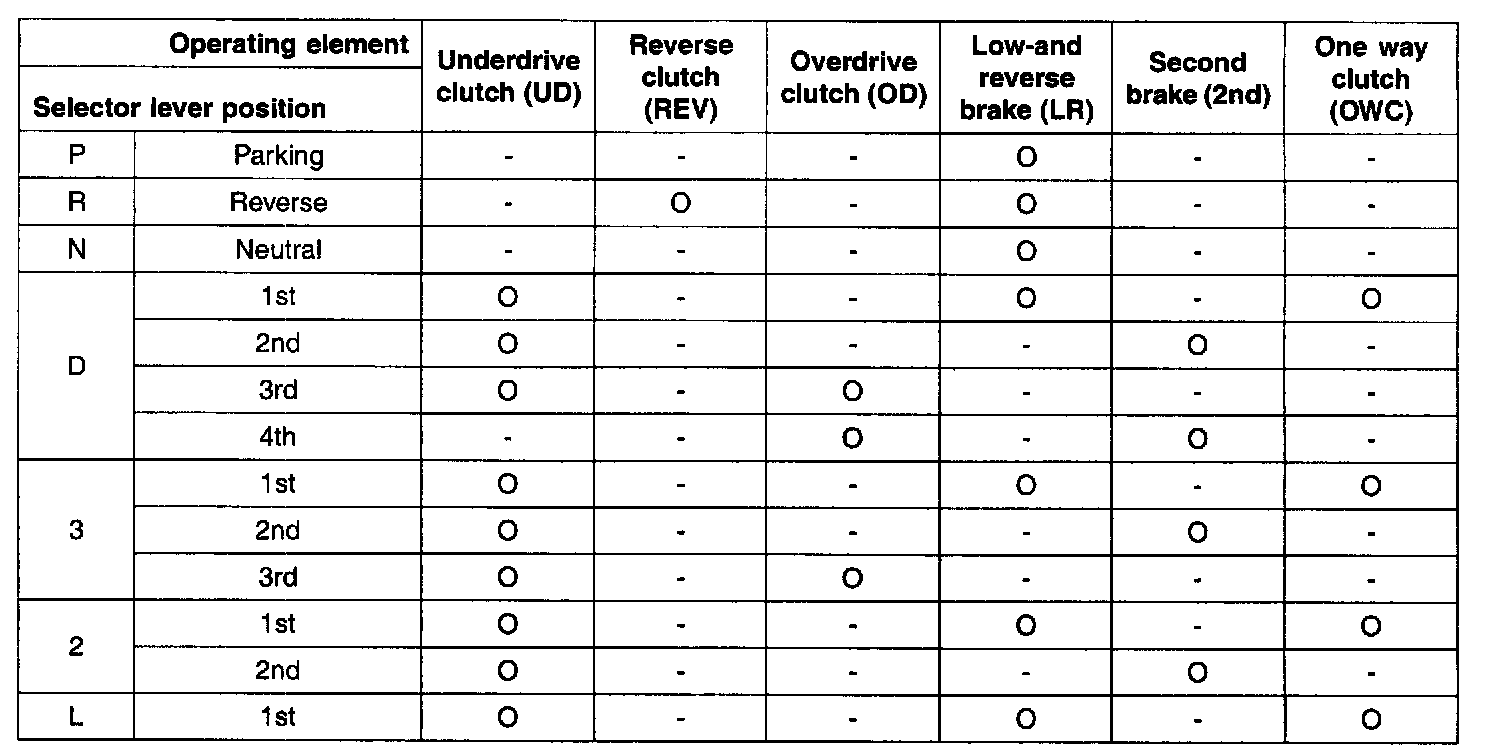

ELEMENTS IN USE IN EACH GEAR

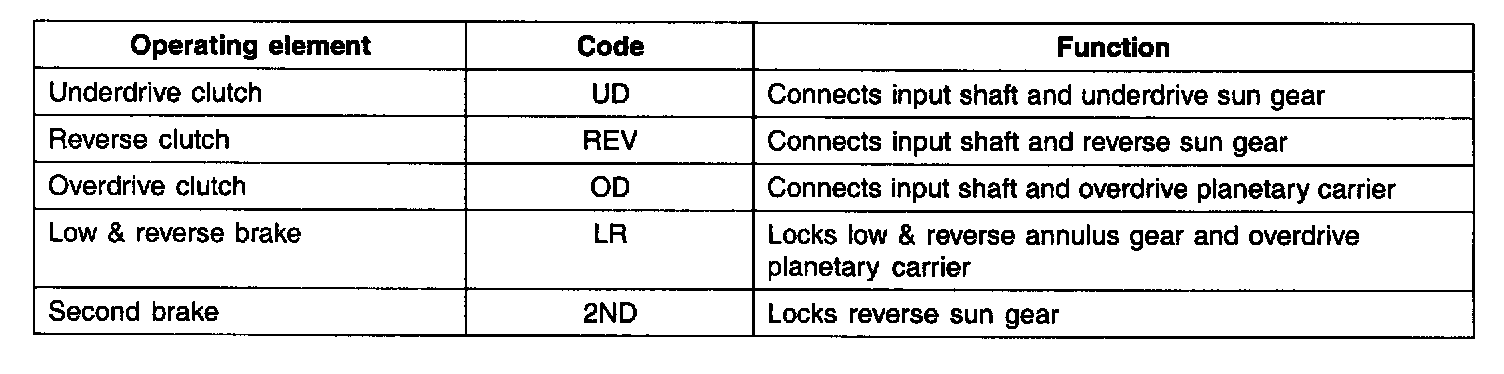

OPERATING ELEMENTS AND THEIR FUNCTION
