Disassembly

DISASSEMBLY

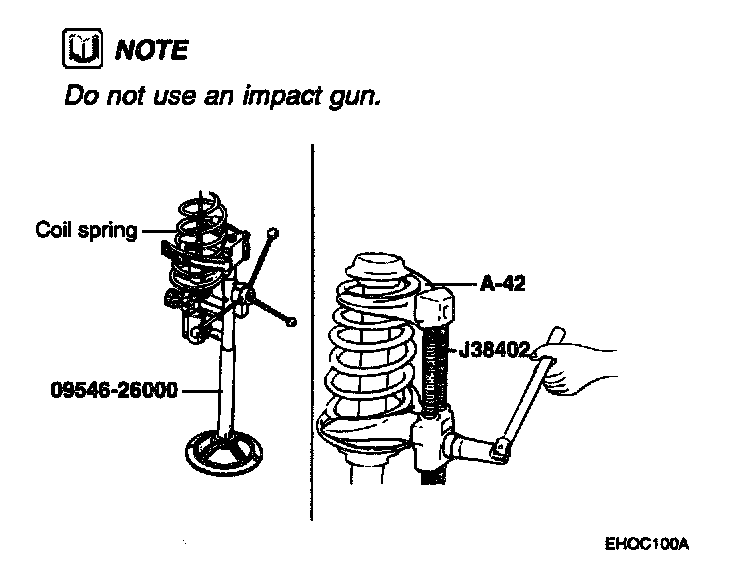

1. Using the special tools (09546-26000 or J38402),compress the coil spring until there is only a little tension on the strut.

NOTE: Do not use an impact gun.





2. Remove the nut at the top end of shock absorber.
3. Remove the insulator, spring seat, coil spring, dust cover from the strut assembly.

INSPECTION

1. Check the strut insulator bearing for wear or damage.
2. Check rubber parts for damage or deterioration.
3. Check the coil spring for sagging and weakness.

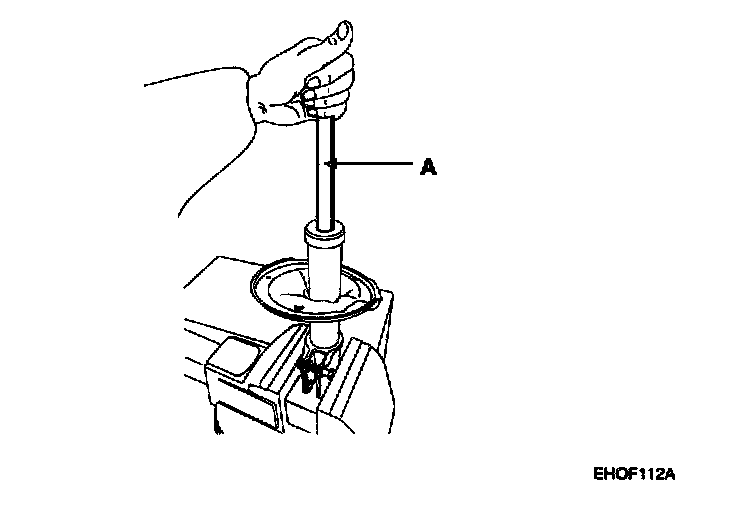

4. Check the shock absorber for abnormal resistance or unusual sound.
