Removal

POWER STEERING OIL PUMP

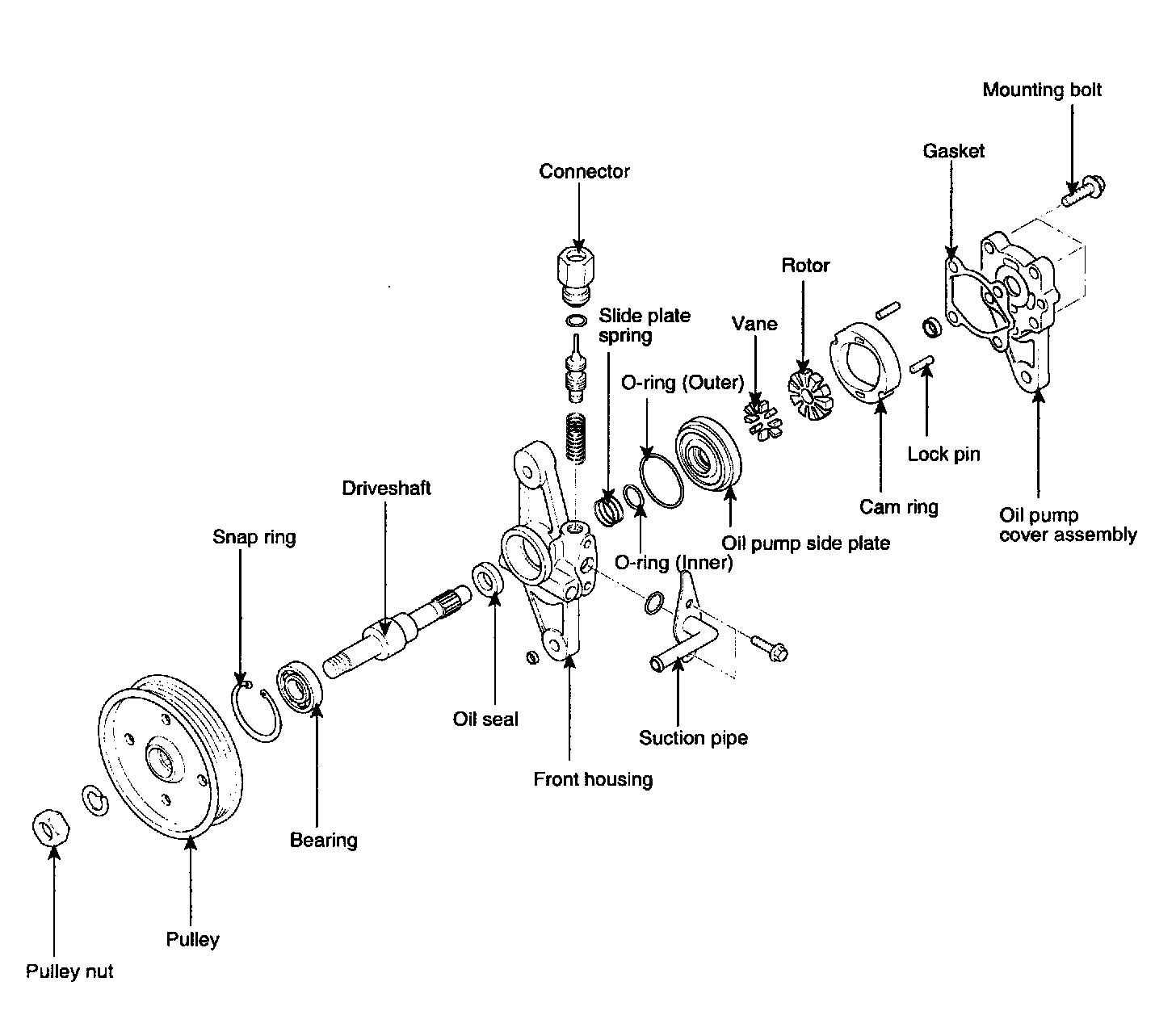

COMPONENTS

REMOVAL

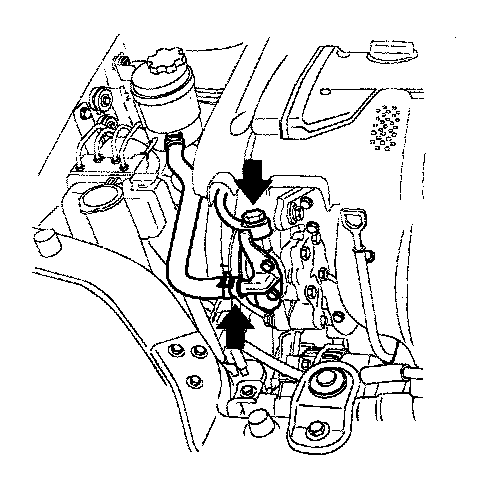

1. Remove the pressure hose from the oil pump. Disconnect the suction hose from the suction connector and drain the fluid into a container.





2. Loosen the power steering "V" belt tension adjusting bolt.

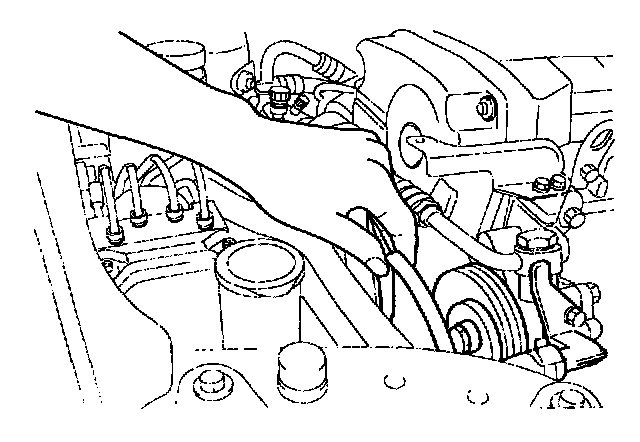

3. Remove the "V" belt from the power steering oil pump pulley.

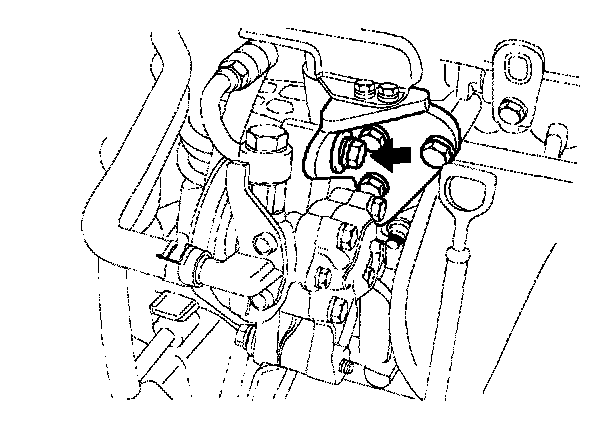

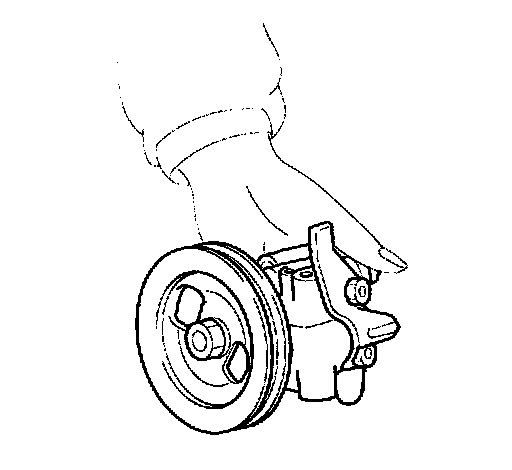

4. After remove the power steering oil pump mounting bolts and the tension adjusting bolt, remove the power steering oil pump assembly.

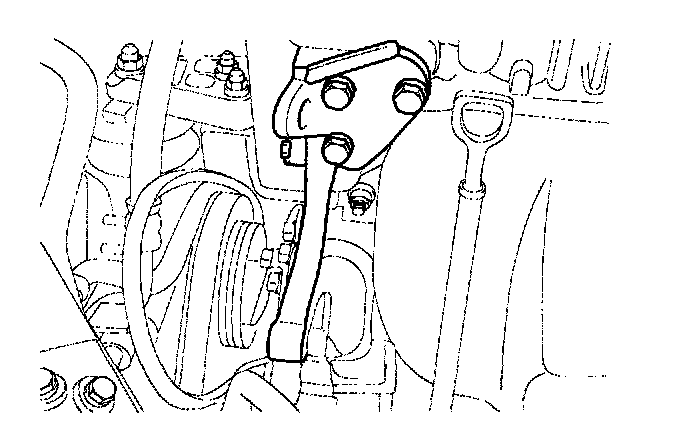

5. Remove the power steering oil pump mounting bracket.
