Removal and Replacement

ALTERNATOR

REMOVAL

2.0 DOHC ENGINE
1. Disconnect the battery negative terminal first, then the positive terminal.

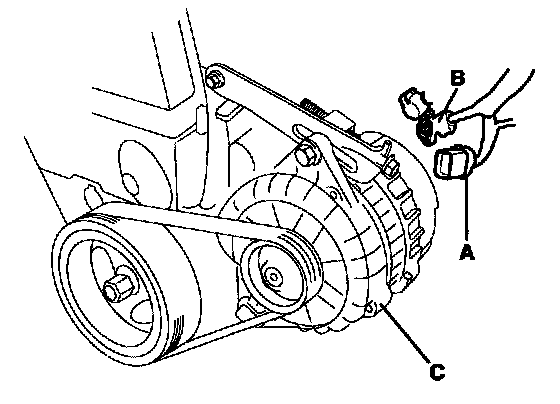

2. Disconnect the alternator connector (A) and "B" terminal cable(B) from the alternator (C).

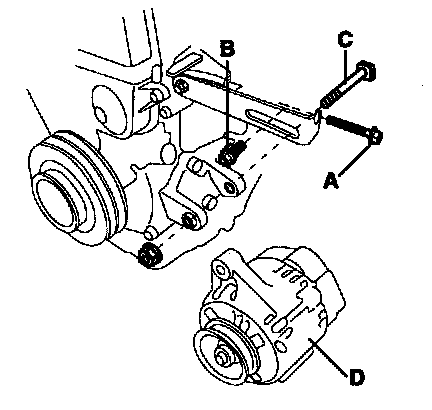

3. Remove the adjusting bolt (A) and mounting bolt (B), then remove the alternator belt (C).
4. Pull out the through bolt (C), then remove the alternator (D).






5. Installation is the reverse of removal.
6. Adjust the alternator belt tension after installation.
