Seat Belt Buckle Switch: Service and Repair
SEAT BELT BUCKLE SWITCHREMOVAL
1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the front seat assembly.

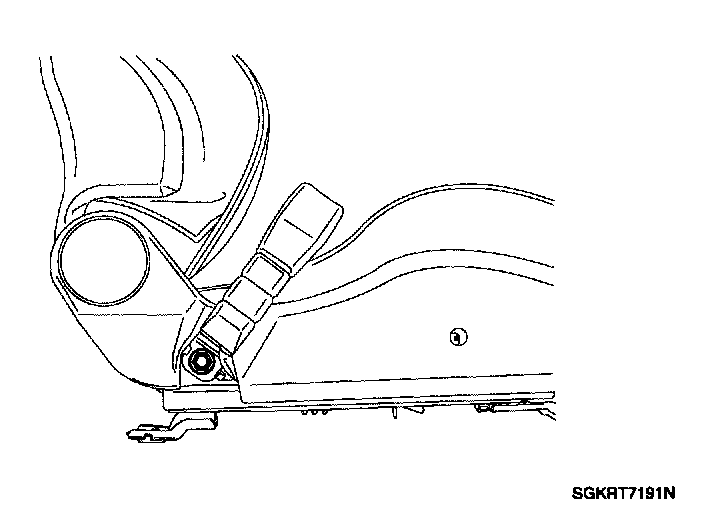

3. Loosen the seat belt buckle mounting bolt and remove the seat belt buckle switch.
INSTALLATION
CAUTION: Ensure that the harness is ins and routed properly to prevent damage to the wiring.
1. Remove the ignition key from the vehicle.
2. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
3. Install the seat belt buckle switch.
Tightening Torque : 4.0 - 5.5 kgf.m (39.2 - 53.9 N.m 28.9 - 39.8 lb.ft)
4. Install the front seat assembly.
5. Reconnect the battery negative cable.
6. After installing the Seat Belt Buckle Switch, confirm proper system operation.
Turn the ignition switch ON, the SRS indicator should be turned on for about six seconds and then go off.
