Rear Seat Belt

REAR SEAT BELT

Rear Seat Belt:

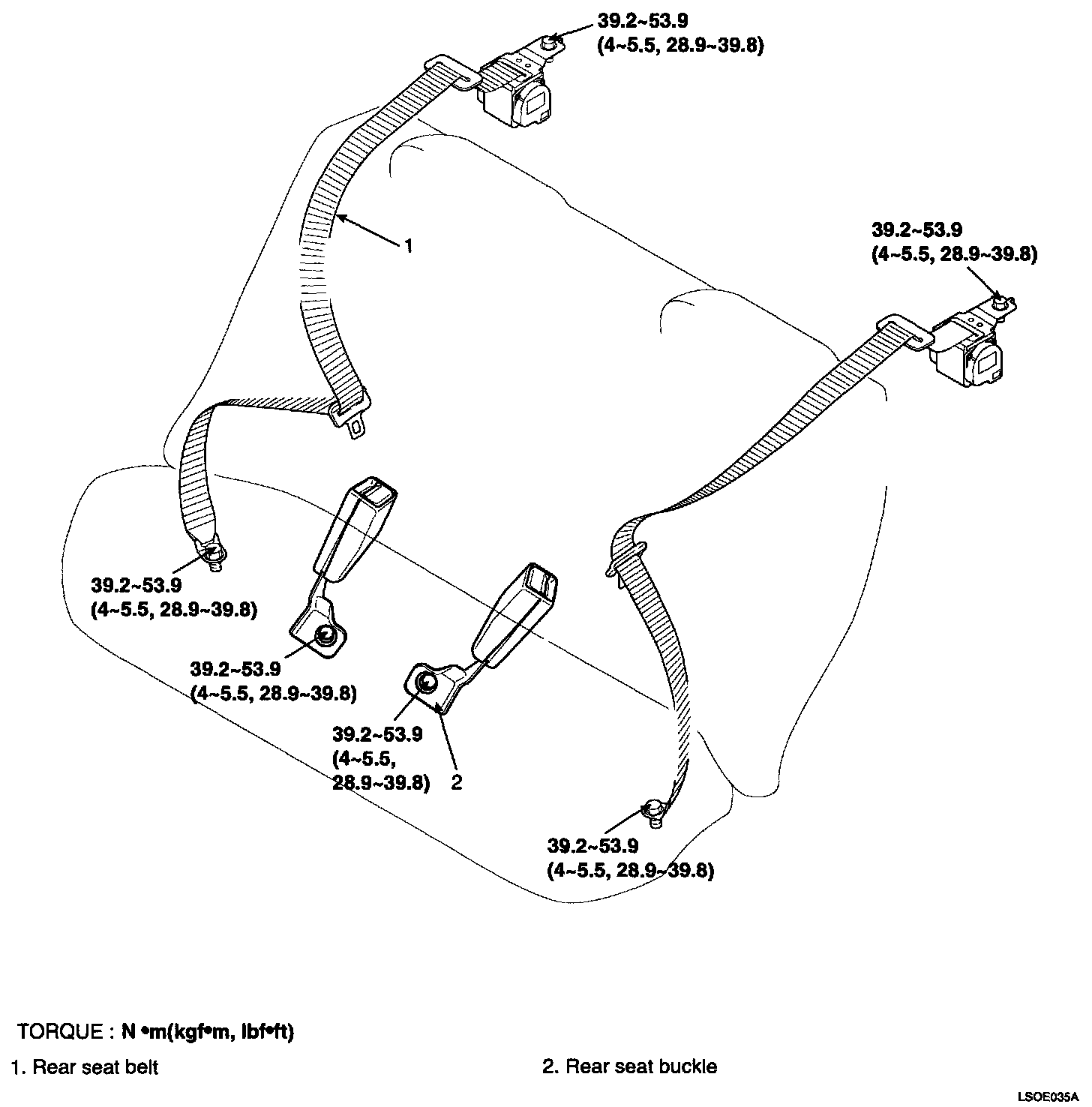

REAR SEAT BELT REPLACEMENT

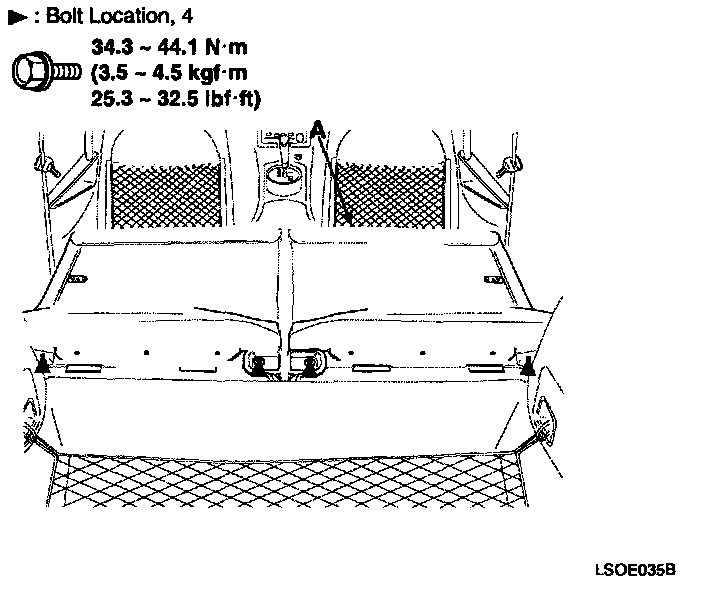

1. After loosening the rear seat back mounting bolt, remove the rear seat back (A).

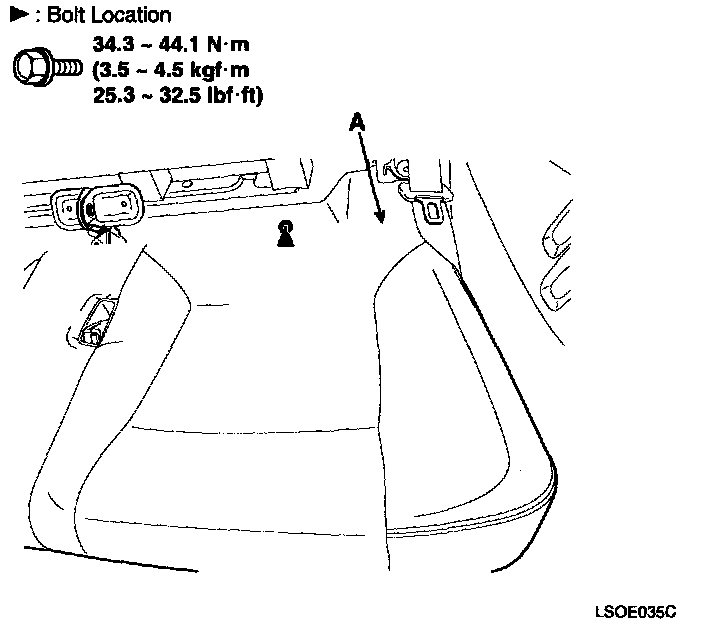

2. After loosening the rear seat cushion mounting bolt, remove the rear seat (A).

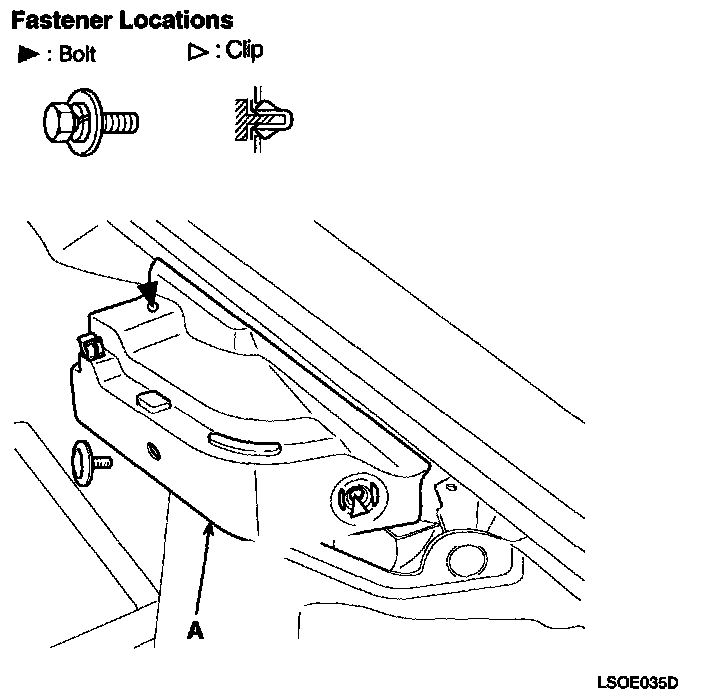

3. Remove the trim (A).

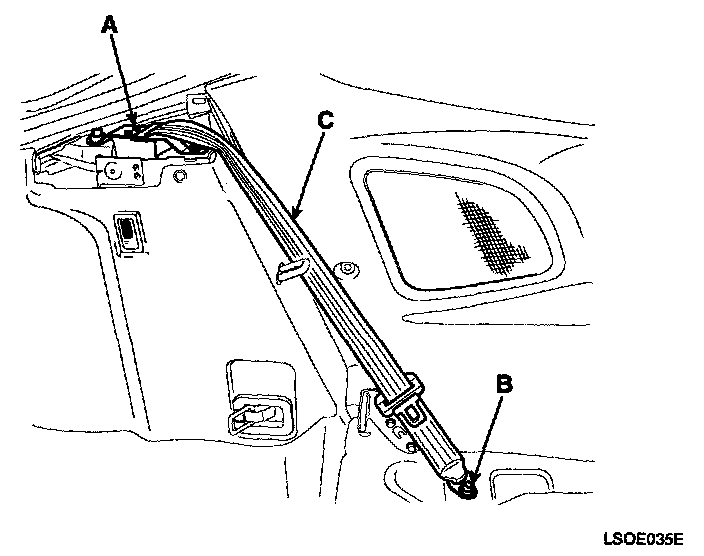

4. Loosening the retractor (A) mounting bolt.
5. After loosening the lower anchor (B) mounting bolt, remove seat belt (C).






6. Installation is the reverse of removal.
