Front Seat Belt

FRONT SEAT BELT

Front Seat Belt:

REMOVAL AND INSTALLATION
1. Loosen the front seat belt upper anchor mounting bolt.

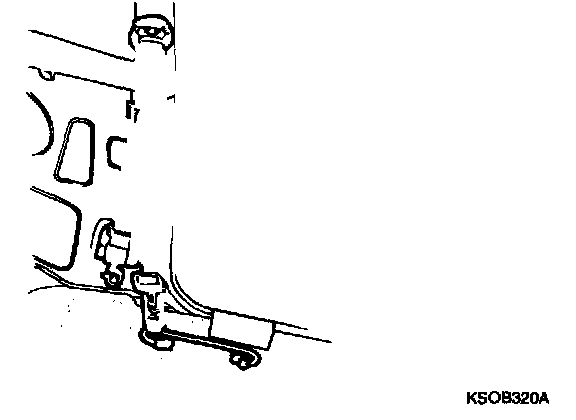

2. Loosen the sliding bar mounting bolts.
3. Loosen the seat belt webbing guide and remove the front seat belt.

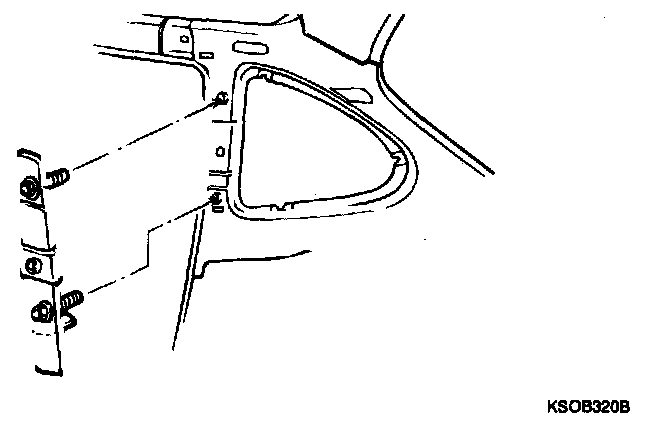

4. Remove the center pillar trim and front seat belt height adjuster.






Tightening torque: 39.2-53.9 N.m (4.0-5.5 kgf.m, 28.9-39.8 lbf.ft)

CAUTION:
1. A pretensioner functions one time only. Be sure to replace the pretensioner seat belt after it is deployed.
2. Do not attempt to disassemble or repair the seat belt pre-tensioner. When it malfunctions, replace with a new pre-tensioner seat belt.
3. Be cautious in handling a pre-tensioner seat belt, and do not drop it in water, or oil. If crushed, damaged, or deformed, replace it with a newone.
4. Only connect the battery after installation of the pretensioner seat belt has been correctly completed.
5. Removal of the pretensioner seat belt:
- Make sure that ignition is "Off".
- Disconnect the negative (-) battery terminal and make sure it does not come into contact with the body.
- Wait for about 1 minute.
- Pull the plug out from the appropriate connector at the gas generator.
- Loosen the bolt and remove the belt from the vehicle body.
