Pinout Values and Diagnostic Parameters

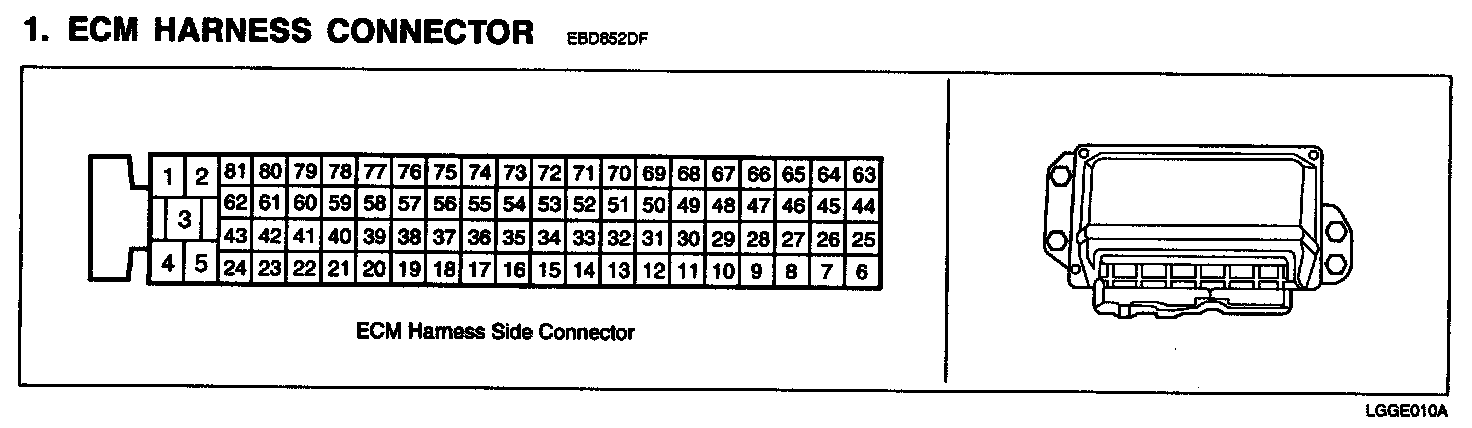

Engine Control Module (ECM) ECM Harness Connector:

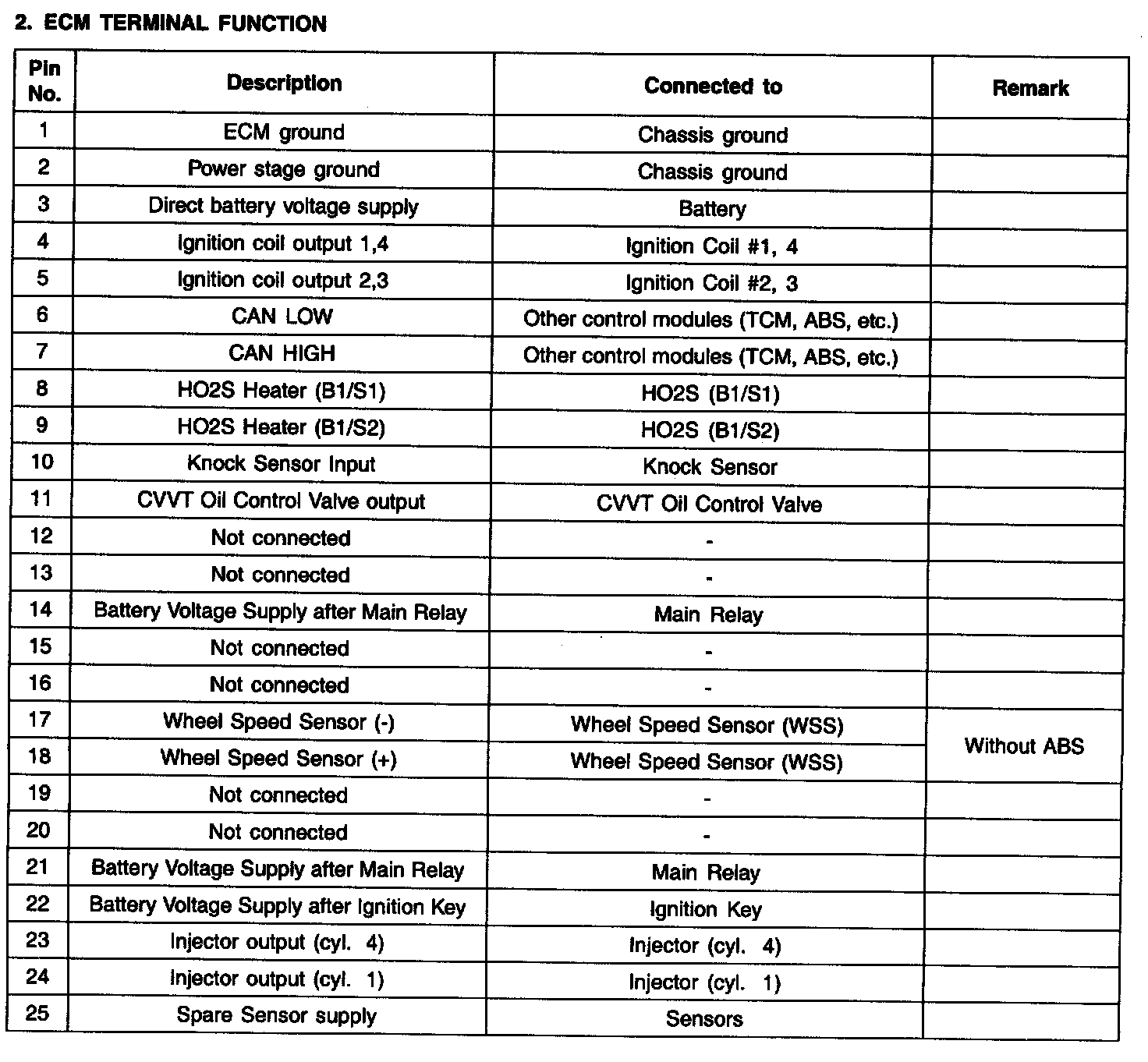

Engine Control Module ECM Terminal Function (Part 1):

Engine Control Module ECM Terminal Function (Part 2):

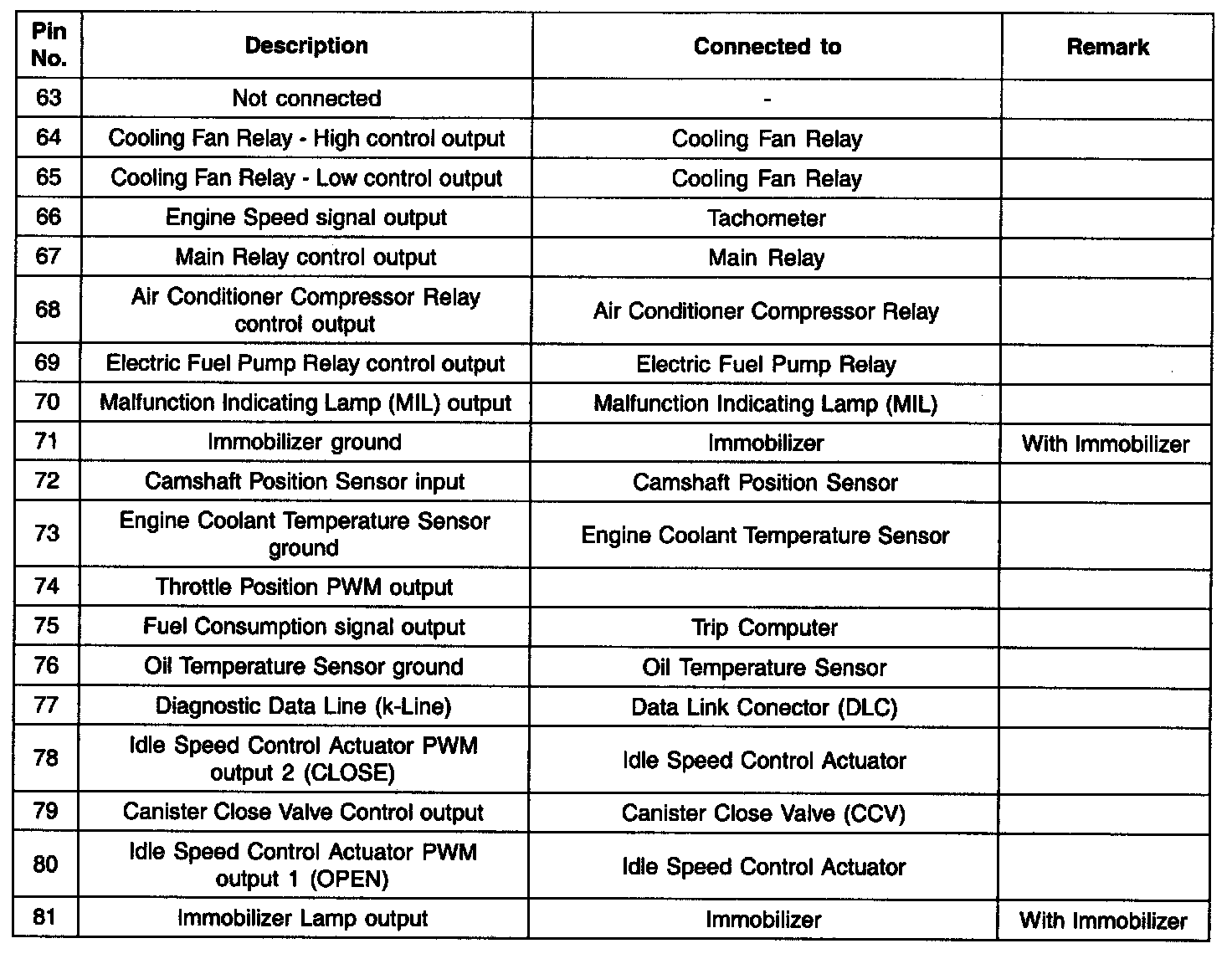

Engine Control Module ECM Terminal Function (Part 3):

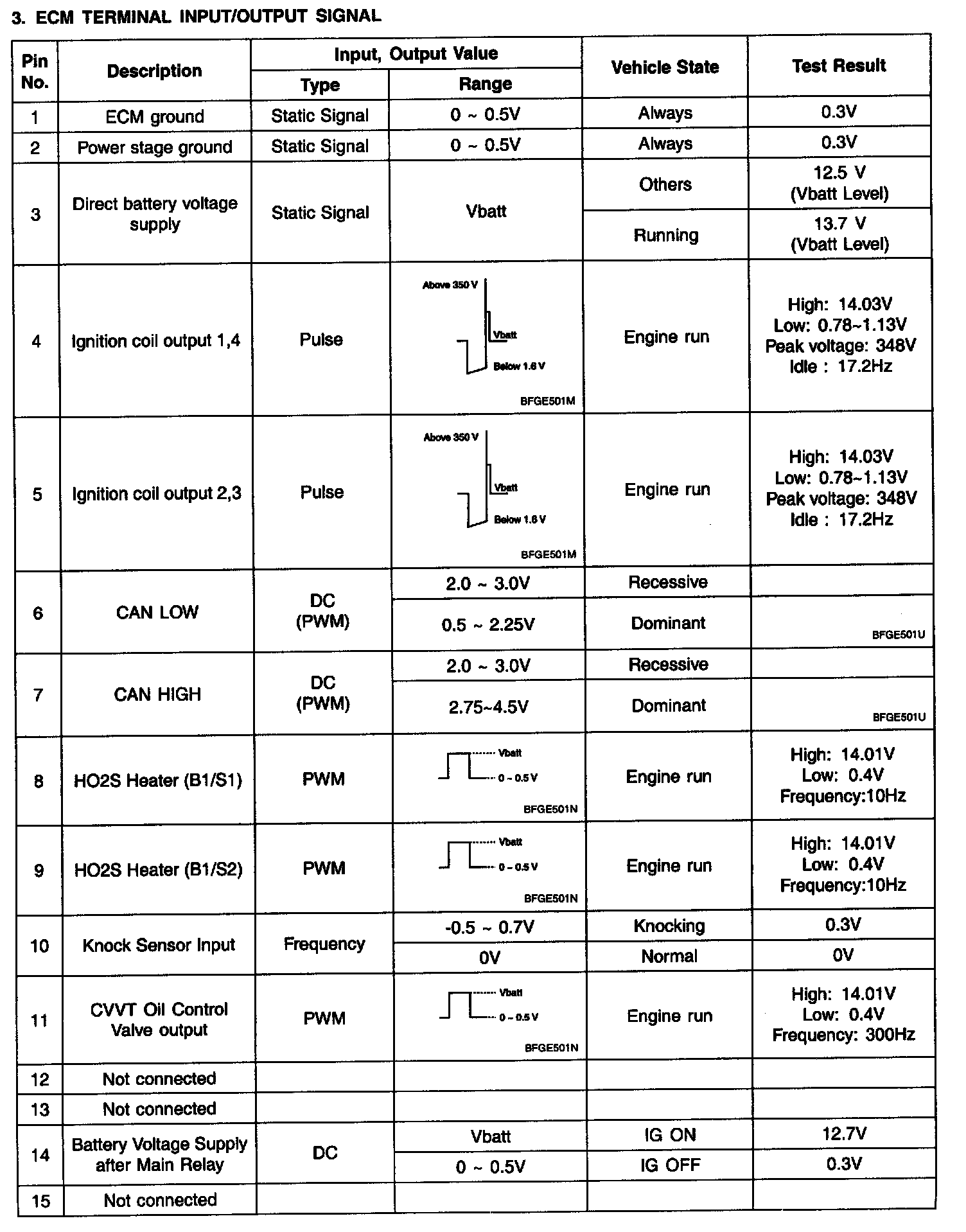

Engine Control Module ECM Terminal Input/Output Signal (Part 1):

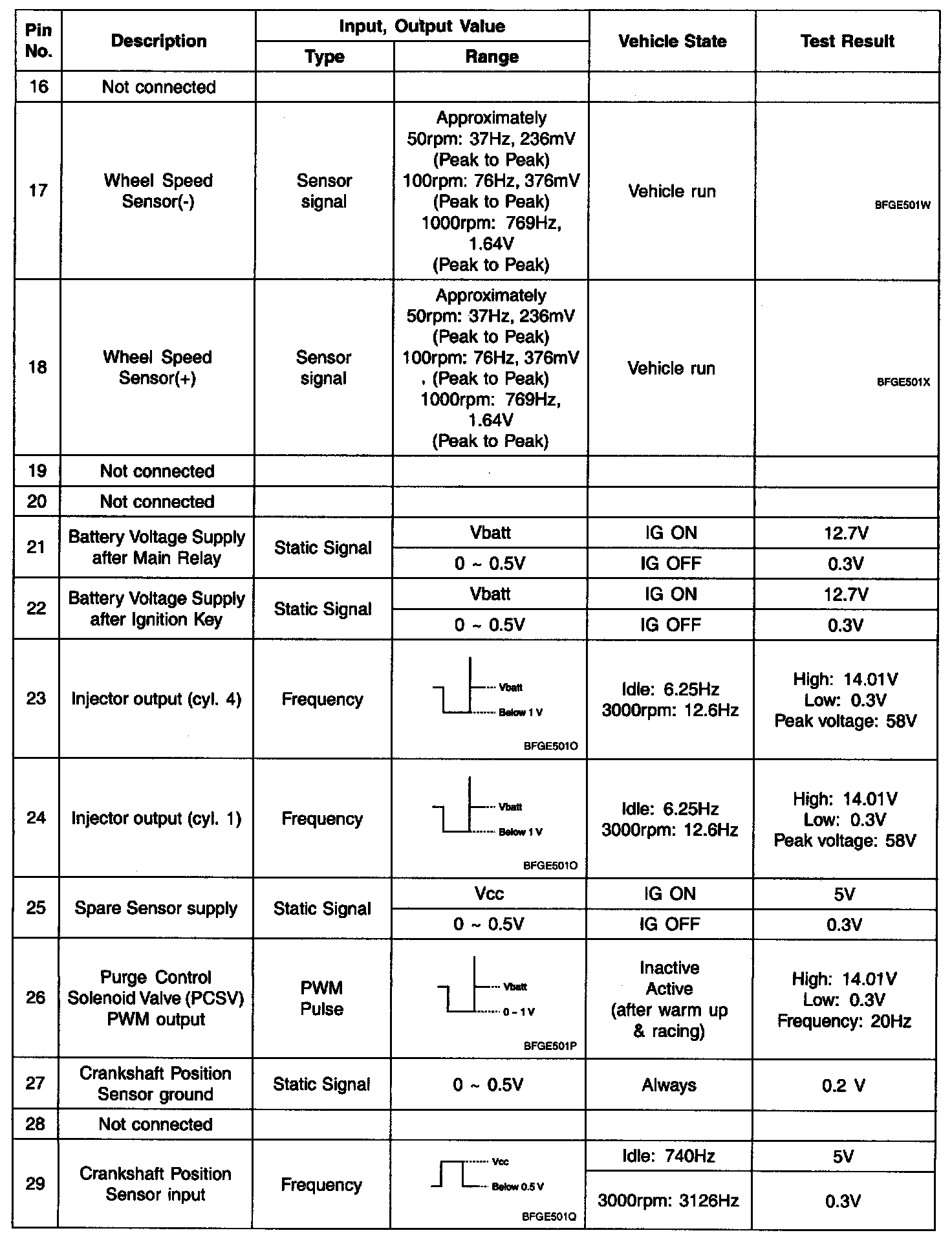

Engine Control Module ECM Terminal Input/Output Signal (Part 2):

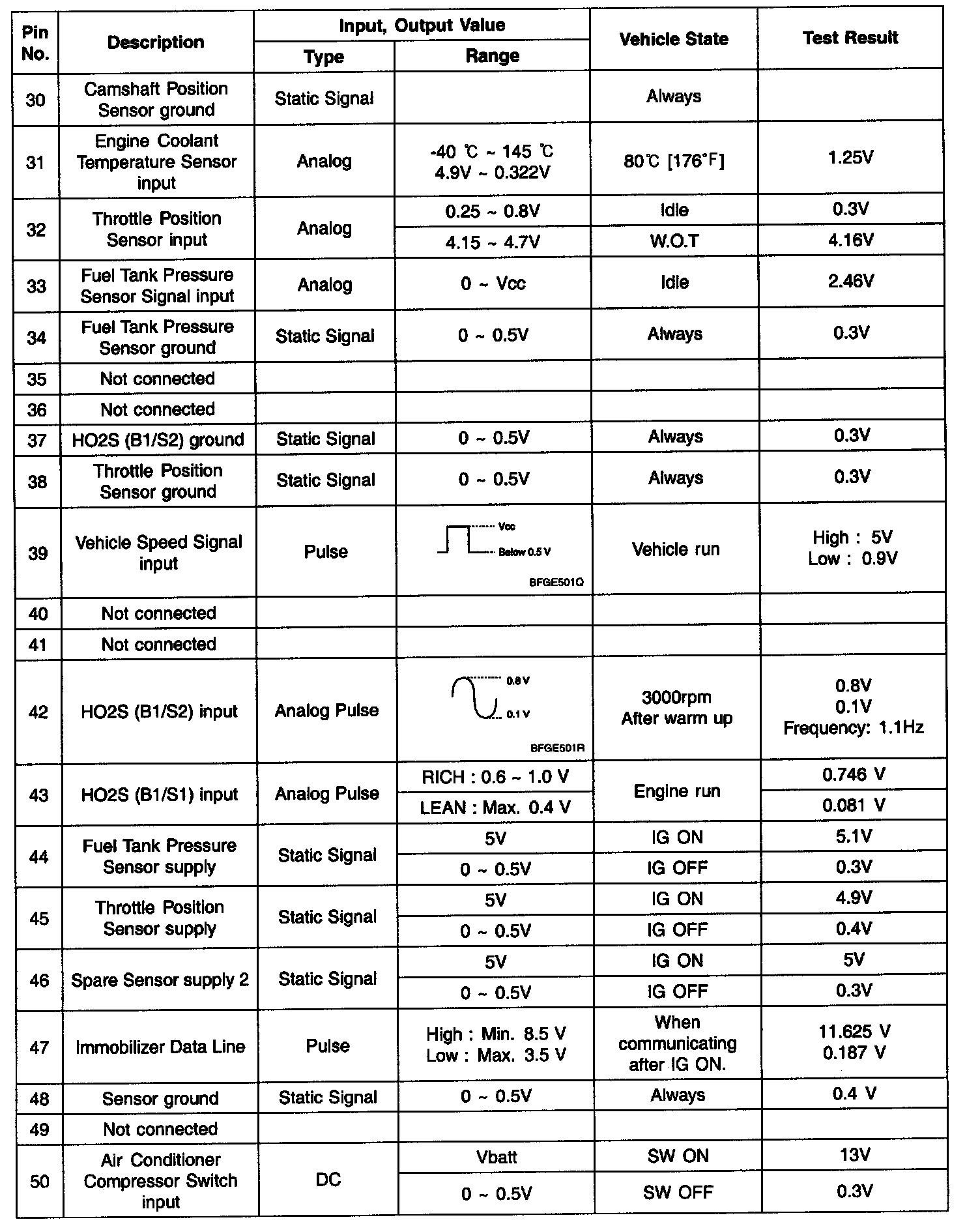

Engine Control Module ECM Terminal Input/Output Signal (Part 3):

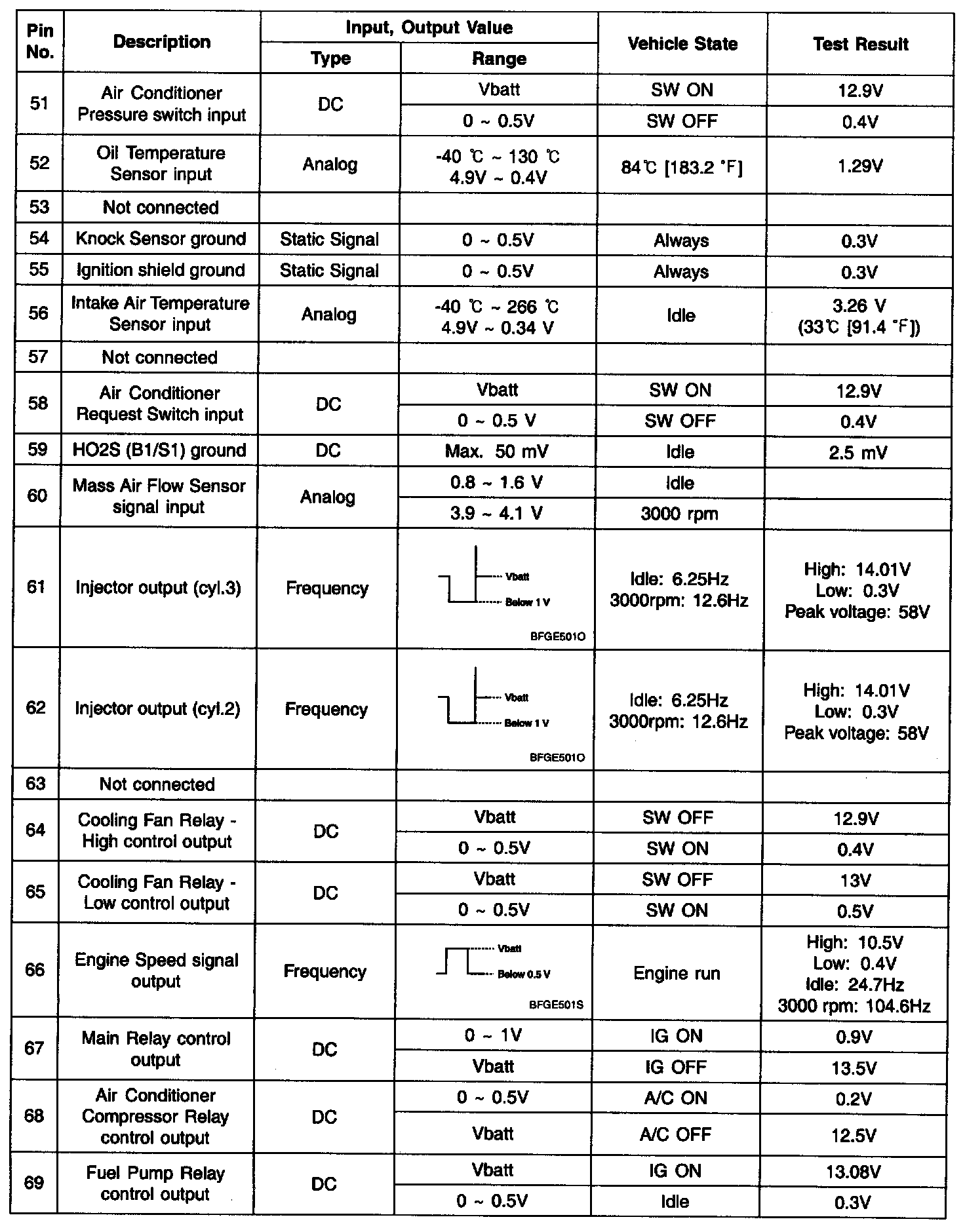

Engine Control Module ECM Terminal Input/Output Signal (Part 4):

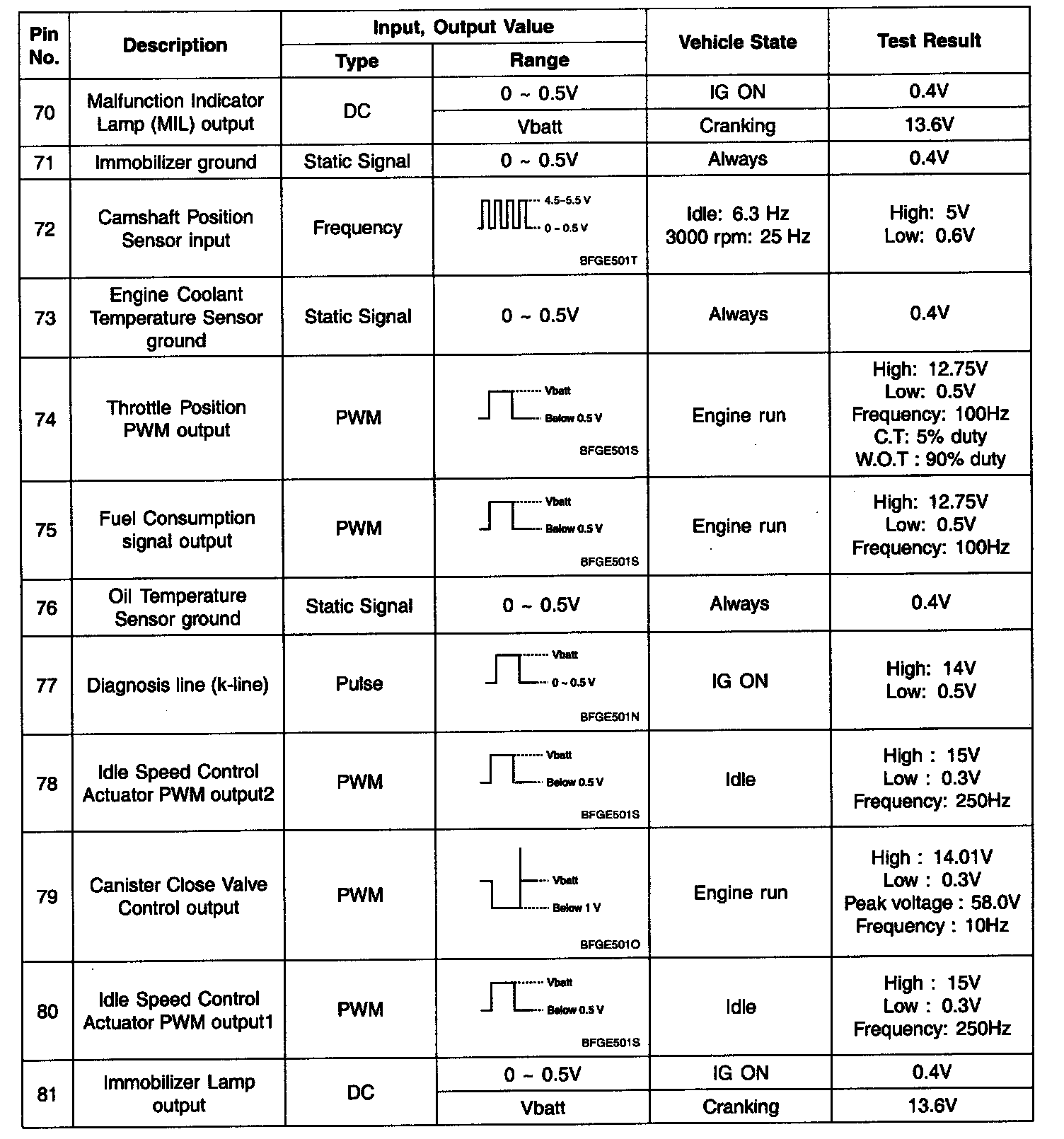

Engine Control Module ECM Terminal Input/Output Signal (Part 5):
