Blower and Controls and A/C (Automatic)

BLOWER AND A/C CONTROLS (AUTOMATIC)

CONTROL PANEL

Description:

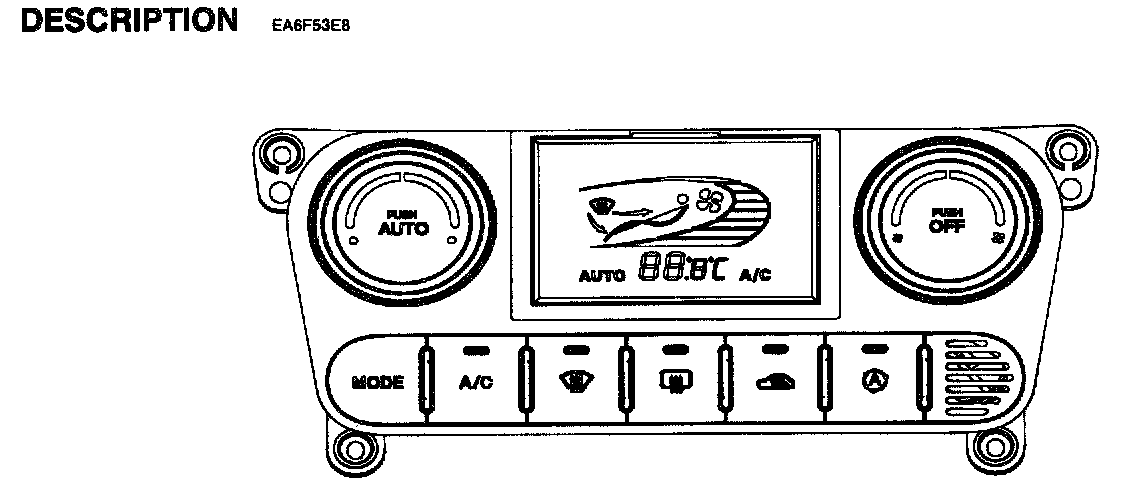

DESCRIPTION

Part 1:

Part 2:

Part 3:

Part 4:

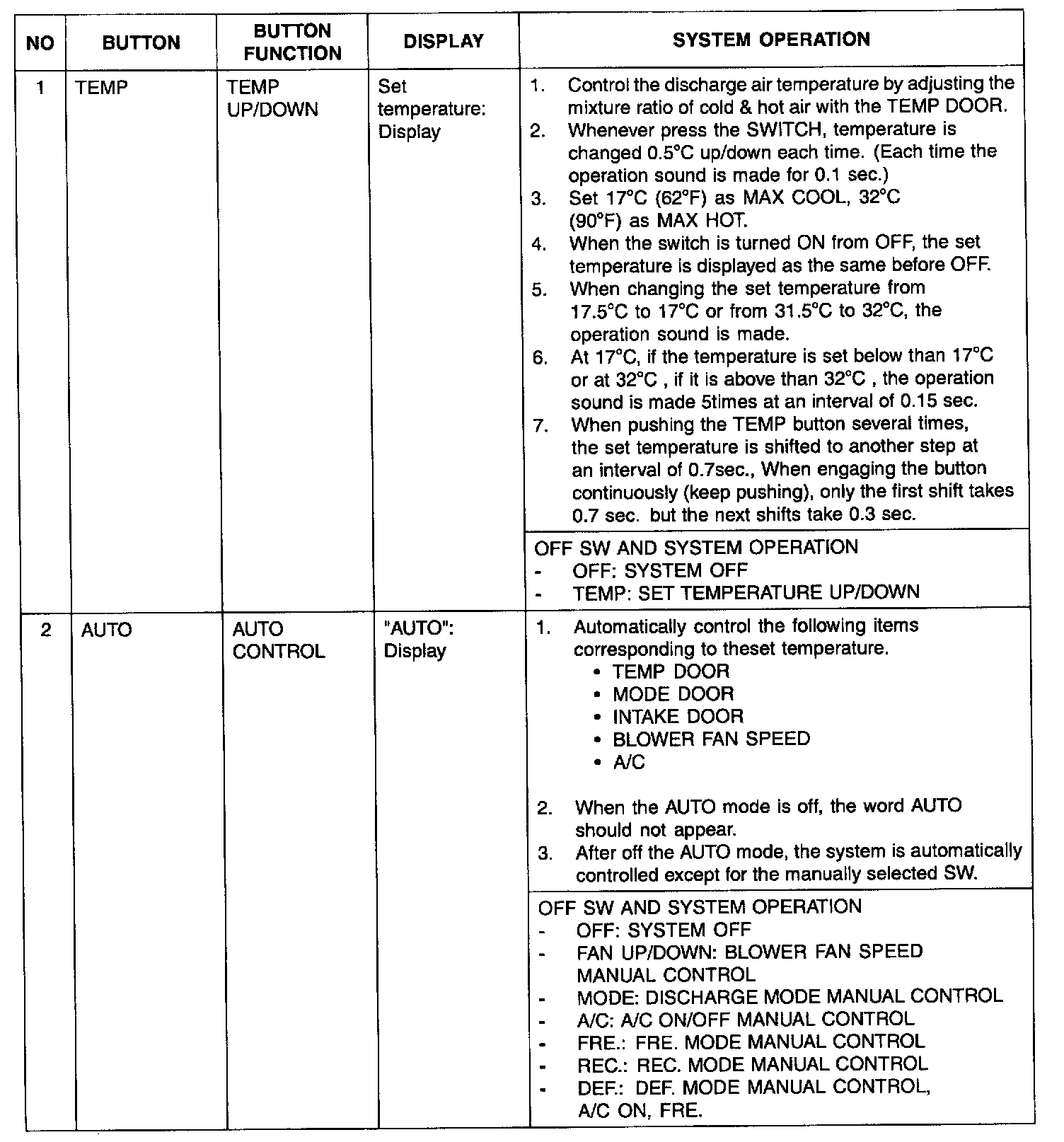

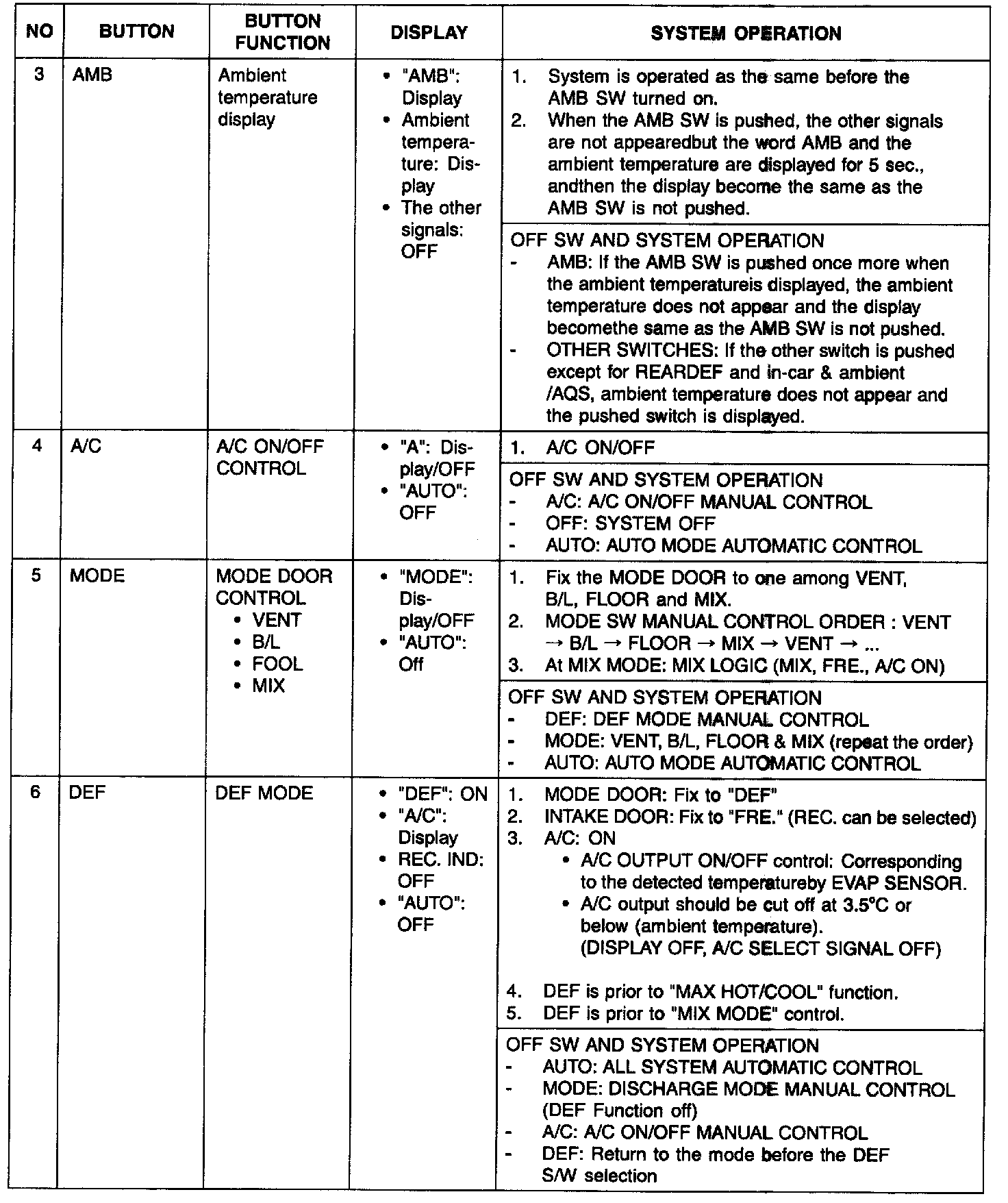

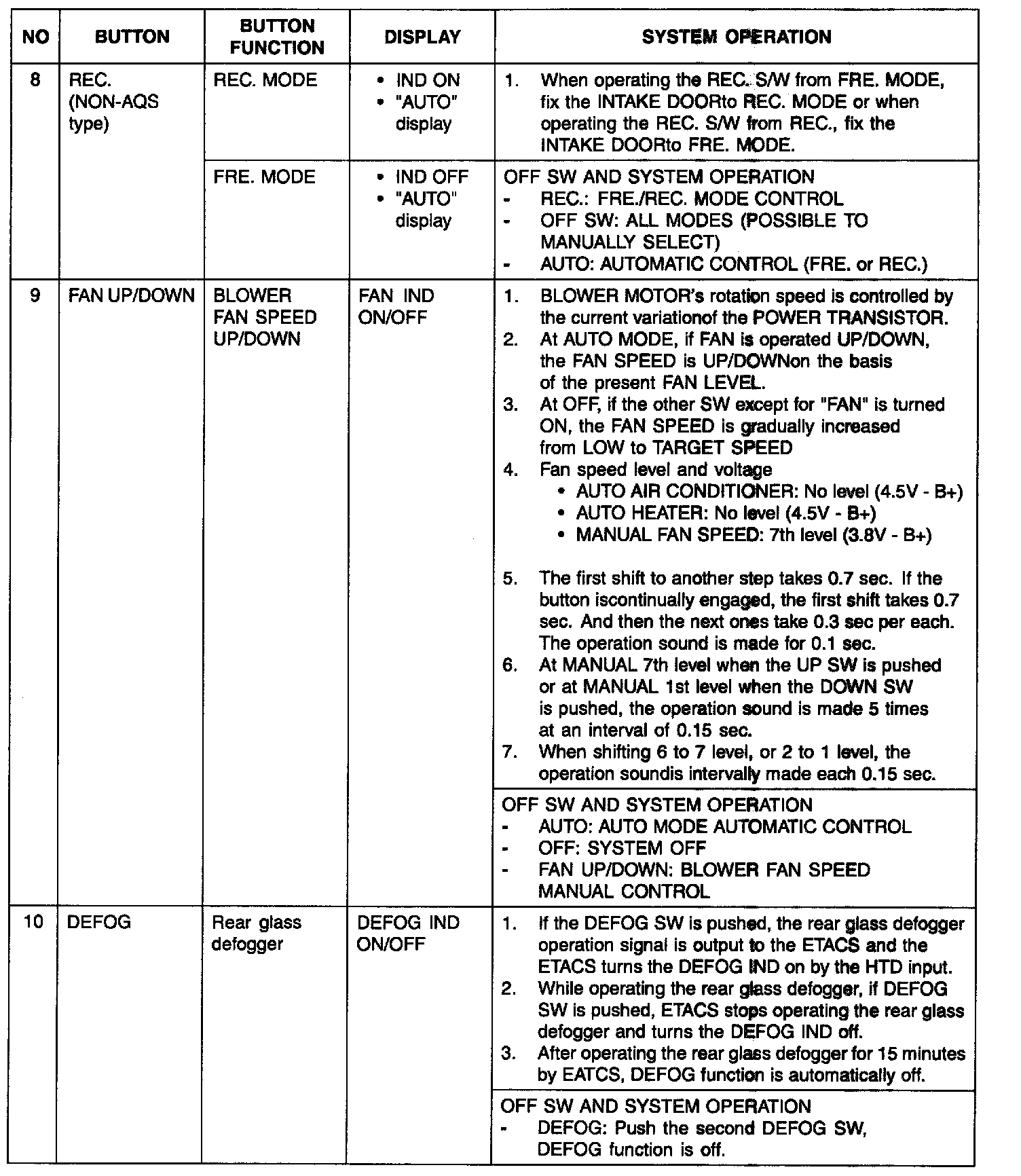

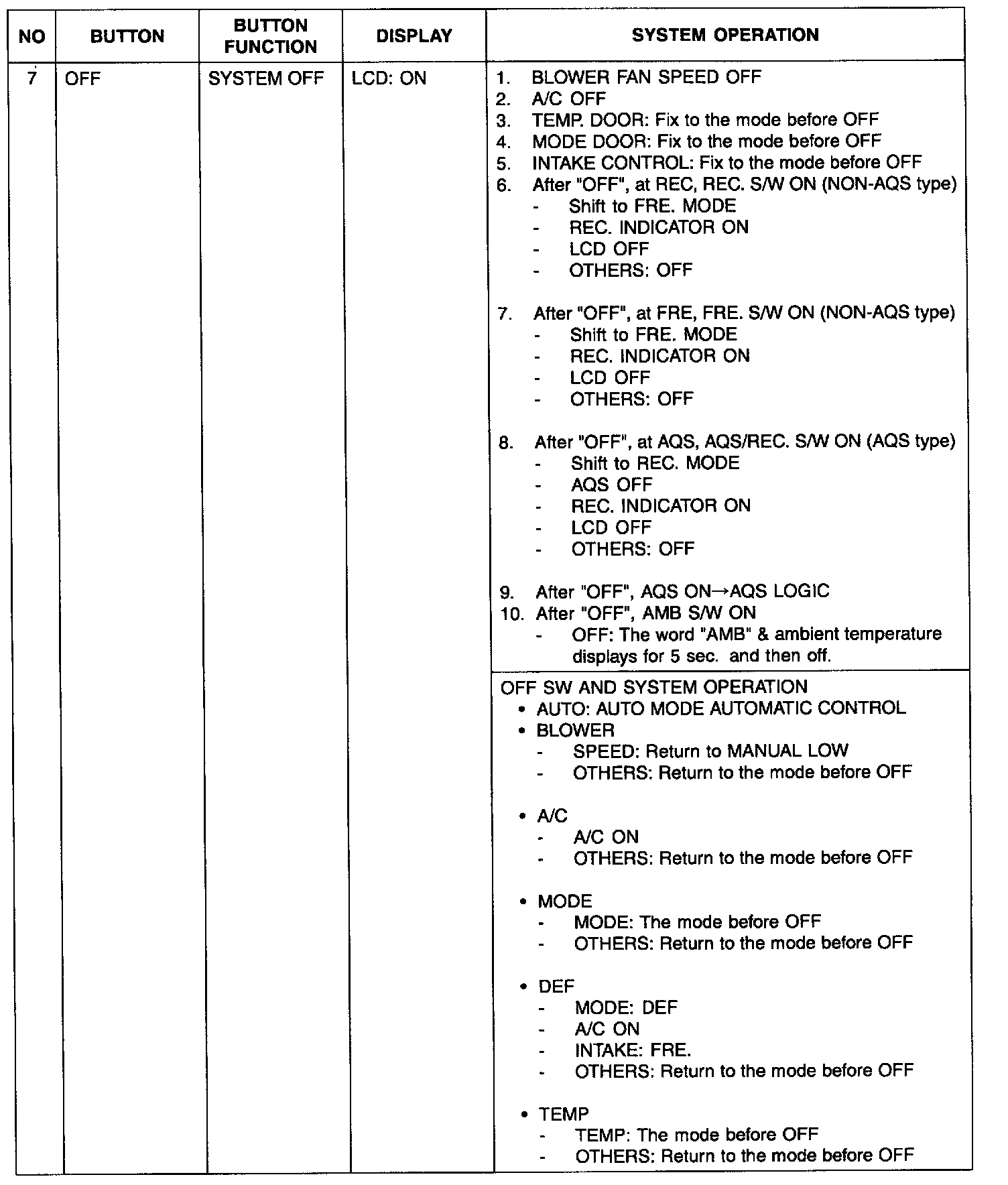

BUTTON CONTROL AND OPERATION LOGIC
1. All buttons should be back-up.
2. Push the button, then the operation sound is made for 0.1 sec. When a S/W is selected, and operation sound is made as well).

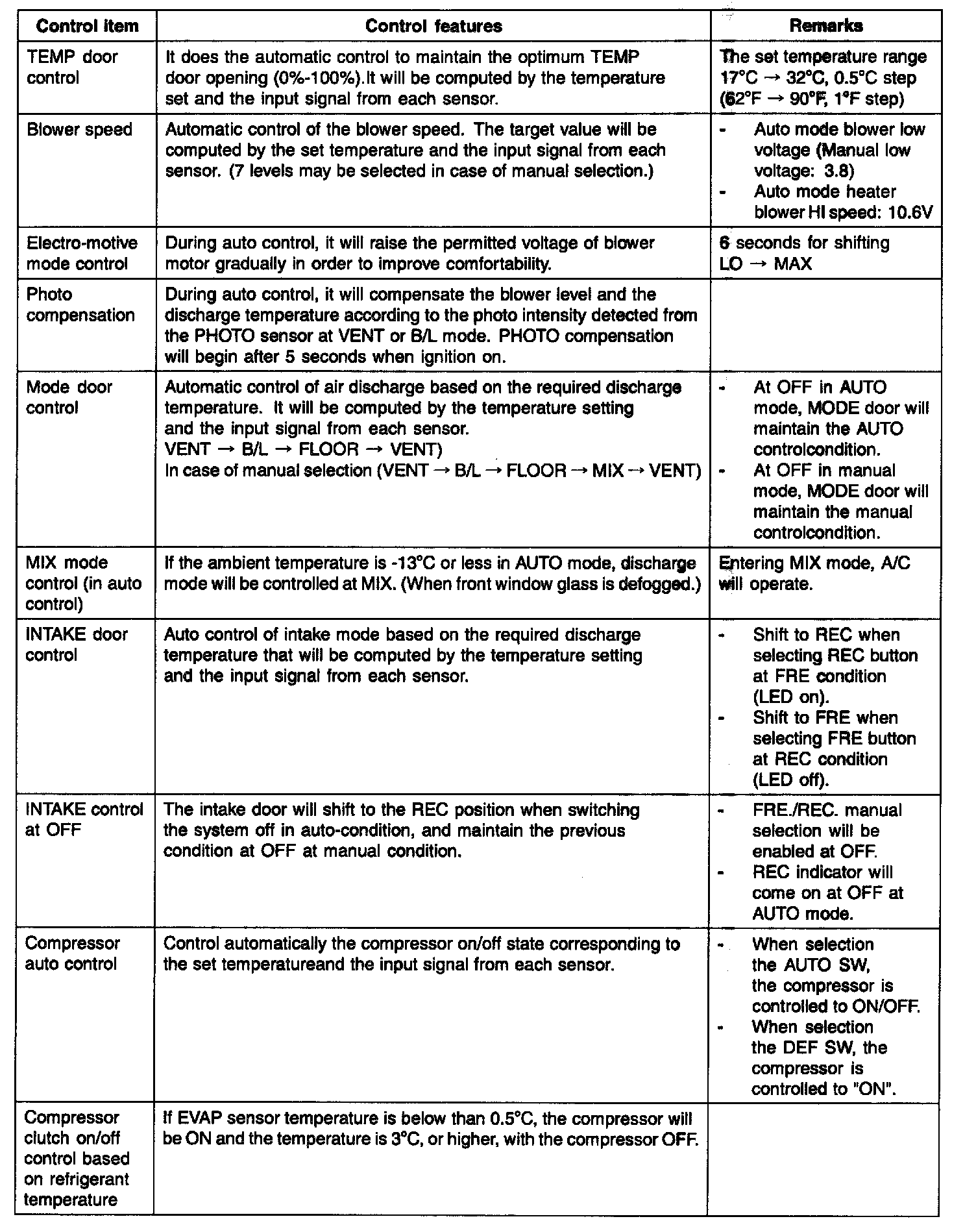

SYSTEM CONTROL FEATURES

Signal I/O For Each Control Feature:

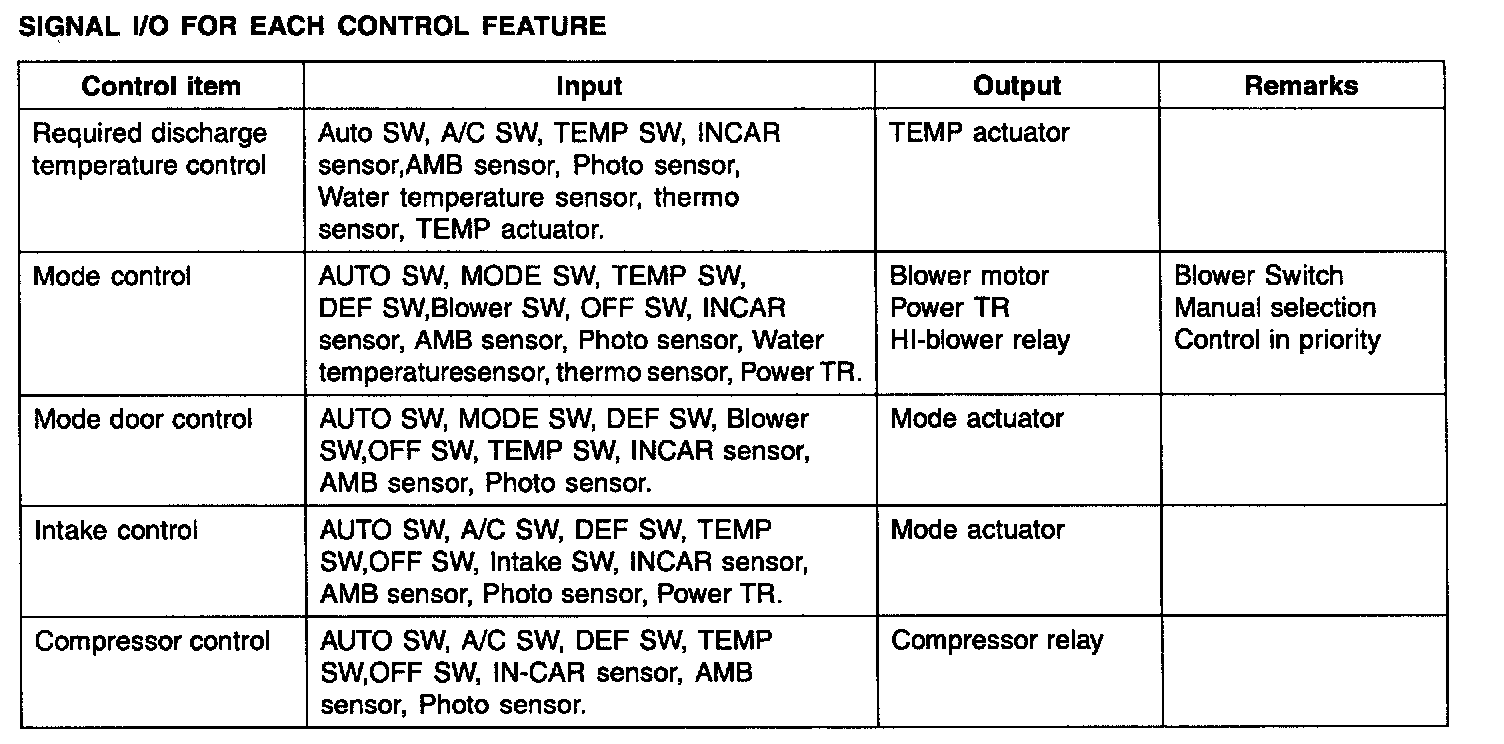

SIGNAL I/O FOR EACH CONTROL FEATURE
During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

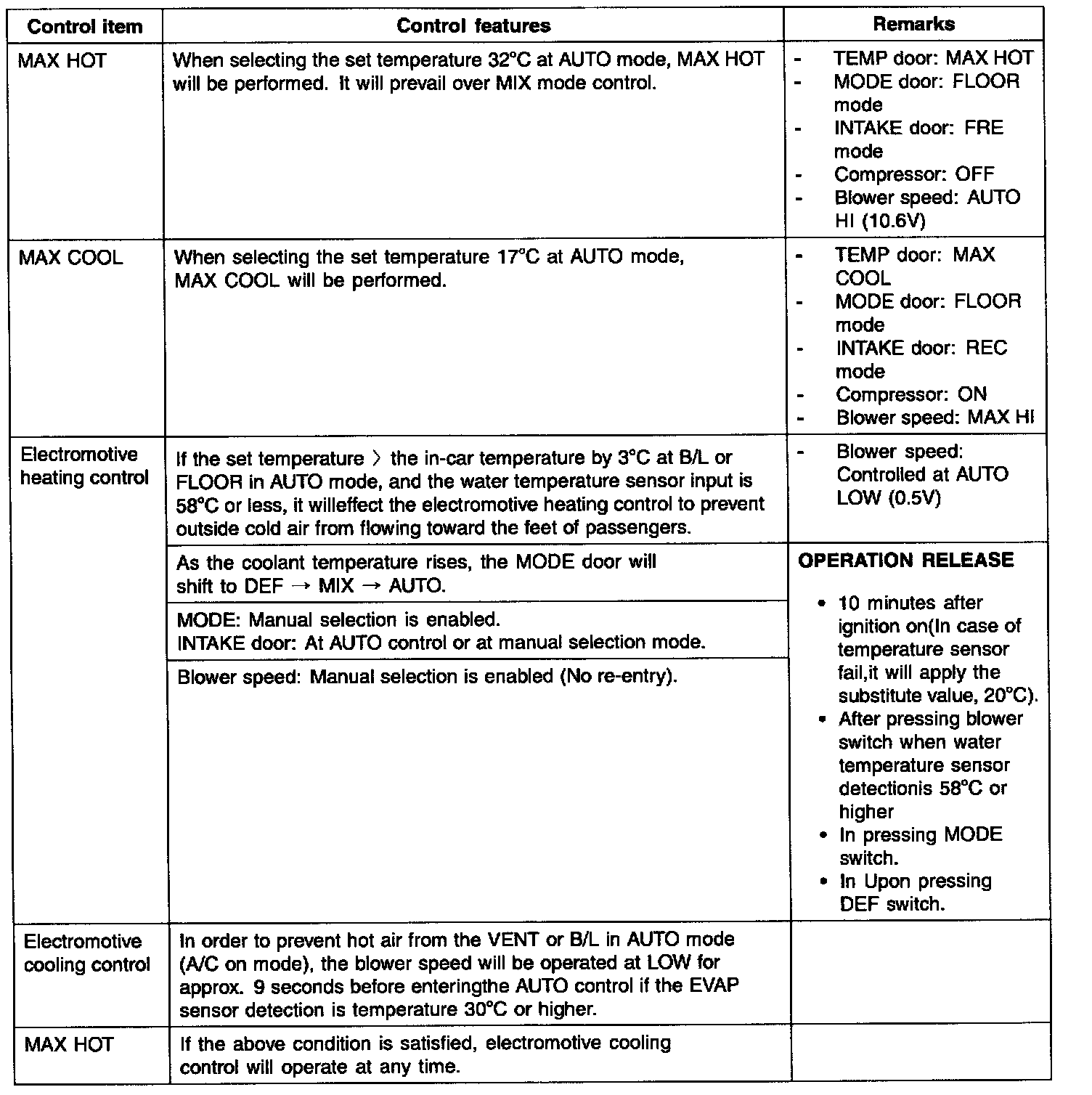

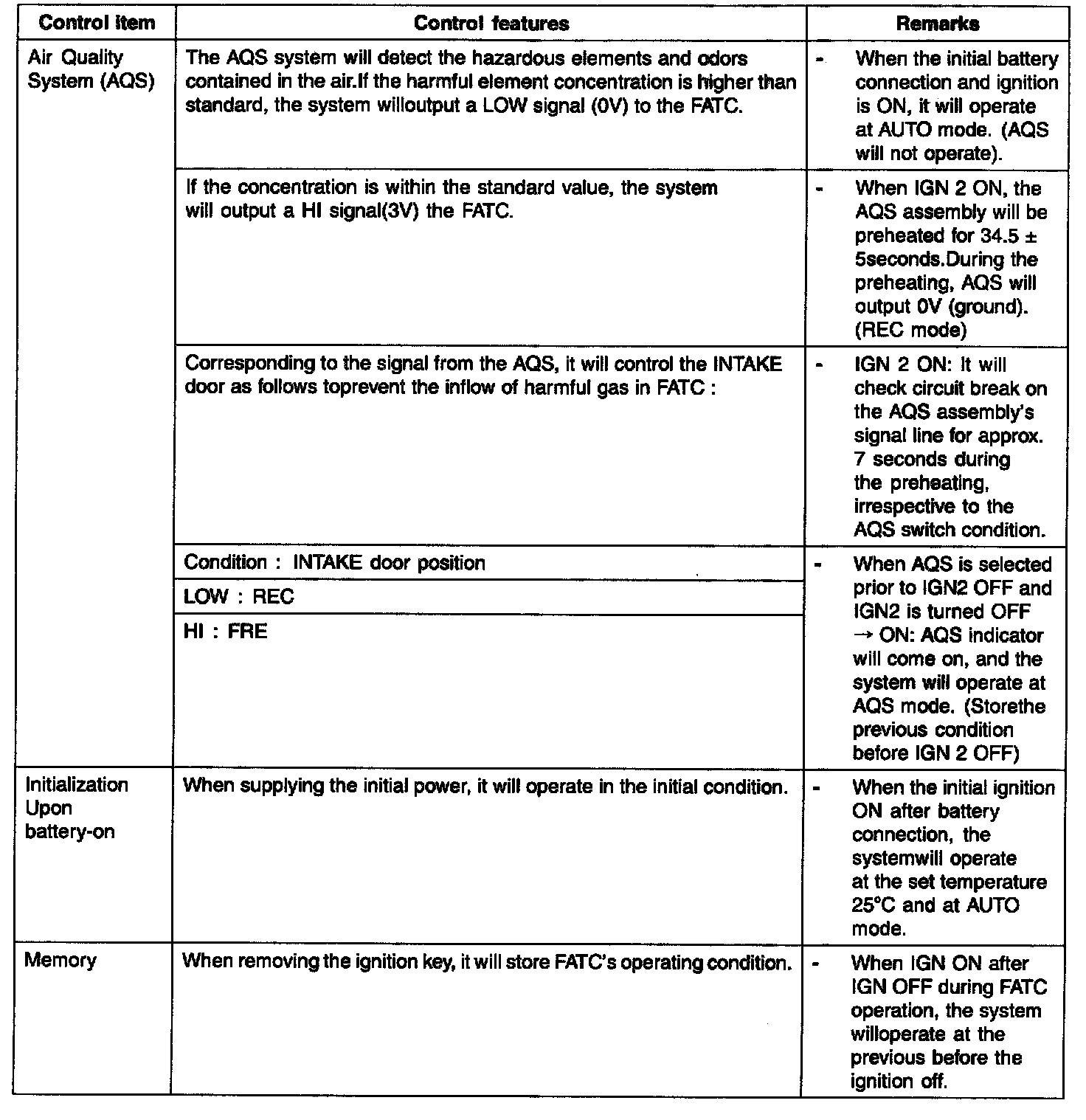

Control Specification (Part 1):

Control Specification (Part 2):

Control Specification (Part 3):

Control Specification (Part 4):

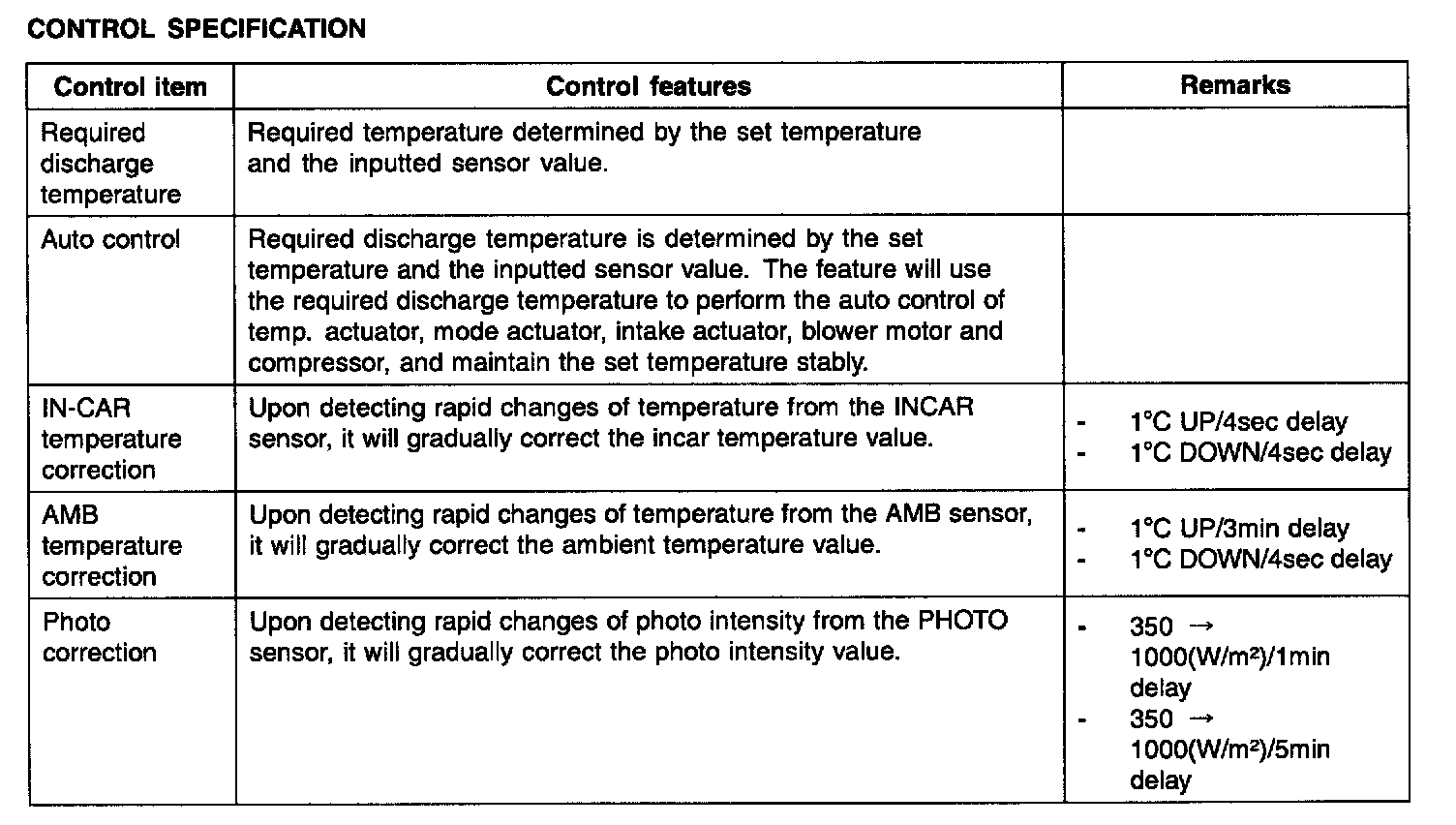

CONTROL SPECIFICATION
