Circuit Diagrams (Schematics)

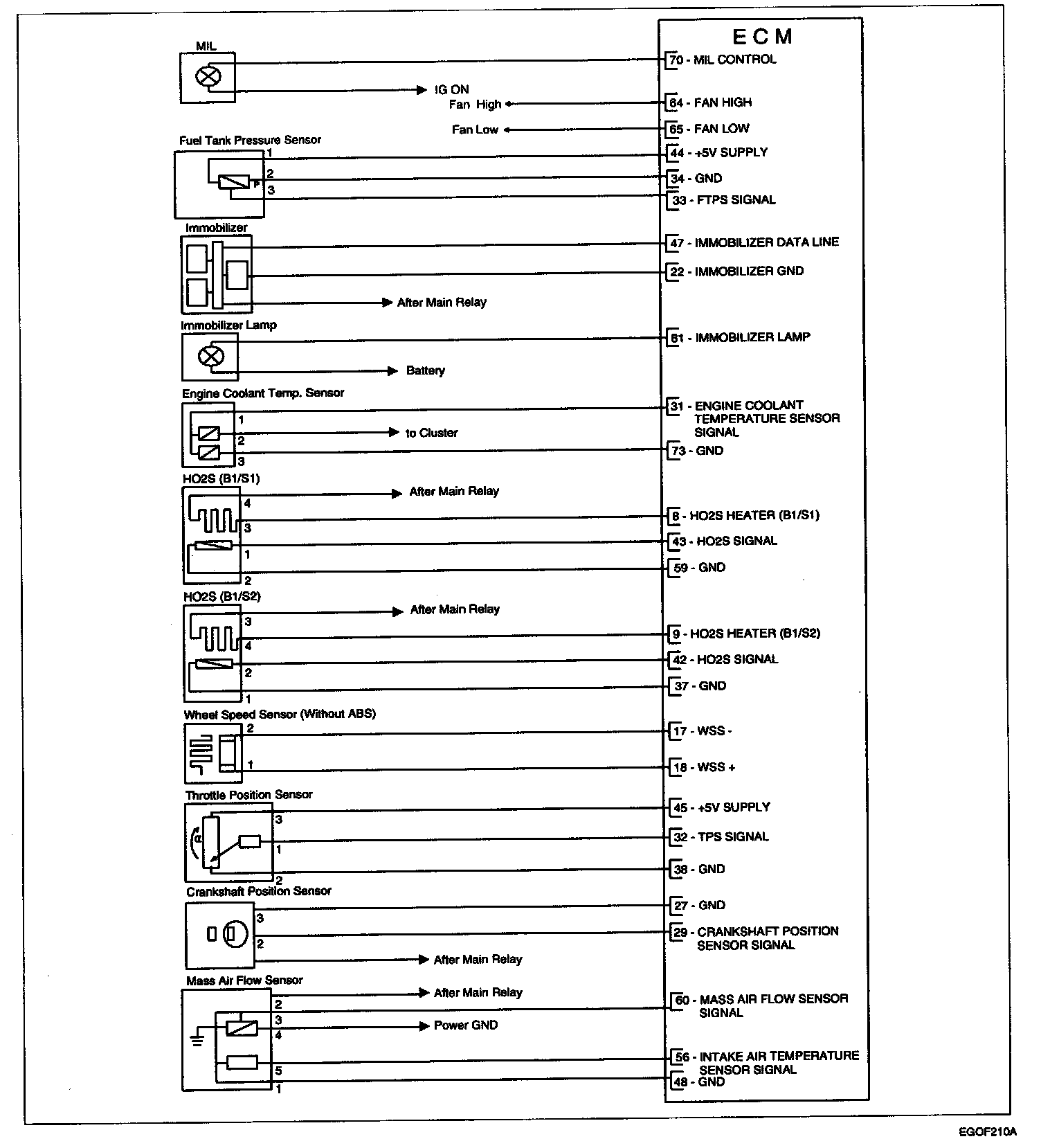

Circuit Diagram (Part 1):

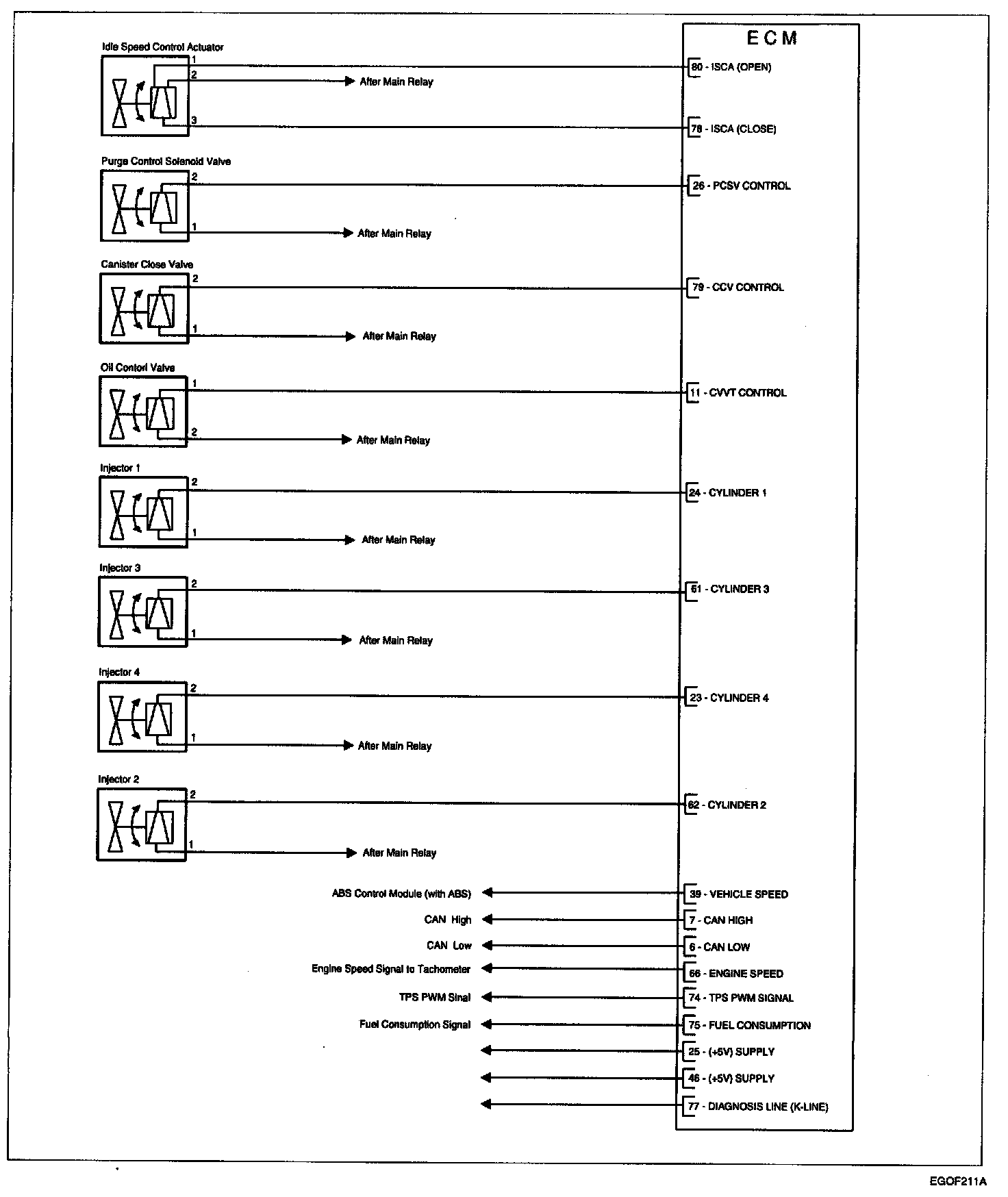

Circuit Diagram (Part 2):

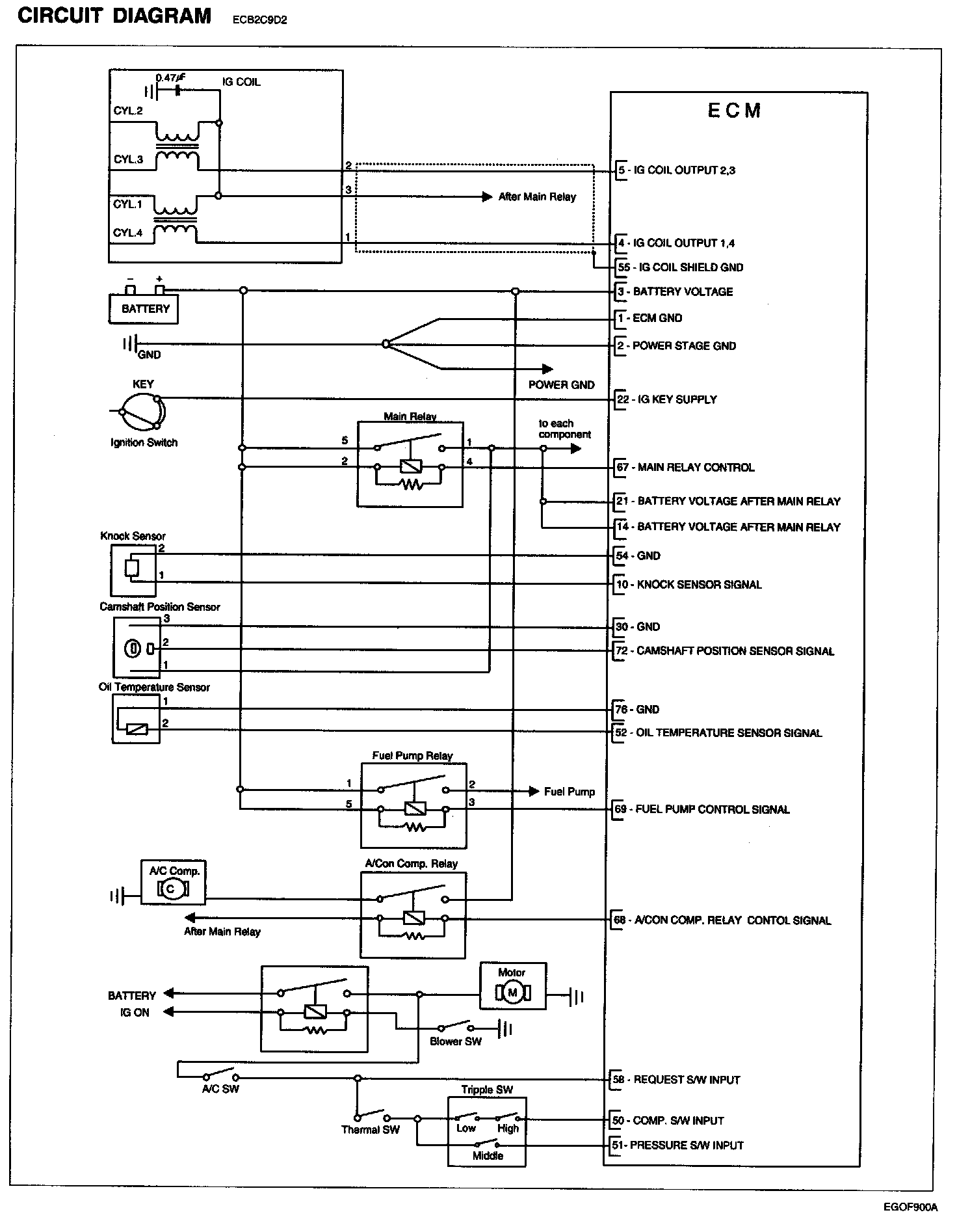

Circuit Diagram (Part 3):
