Parking Brake Cable: Service and Repair

PARKING BRAKE SYSTEM

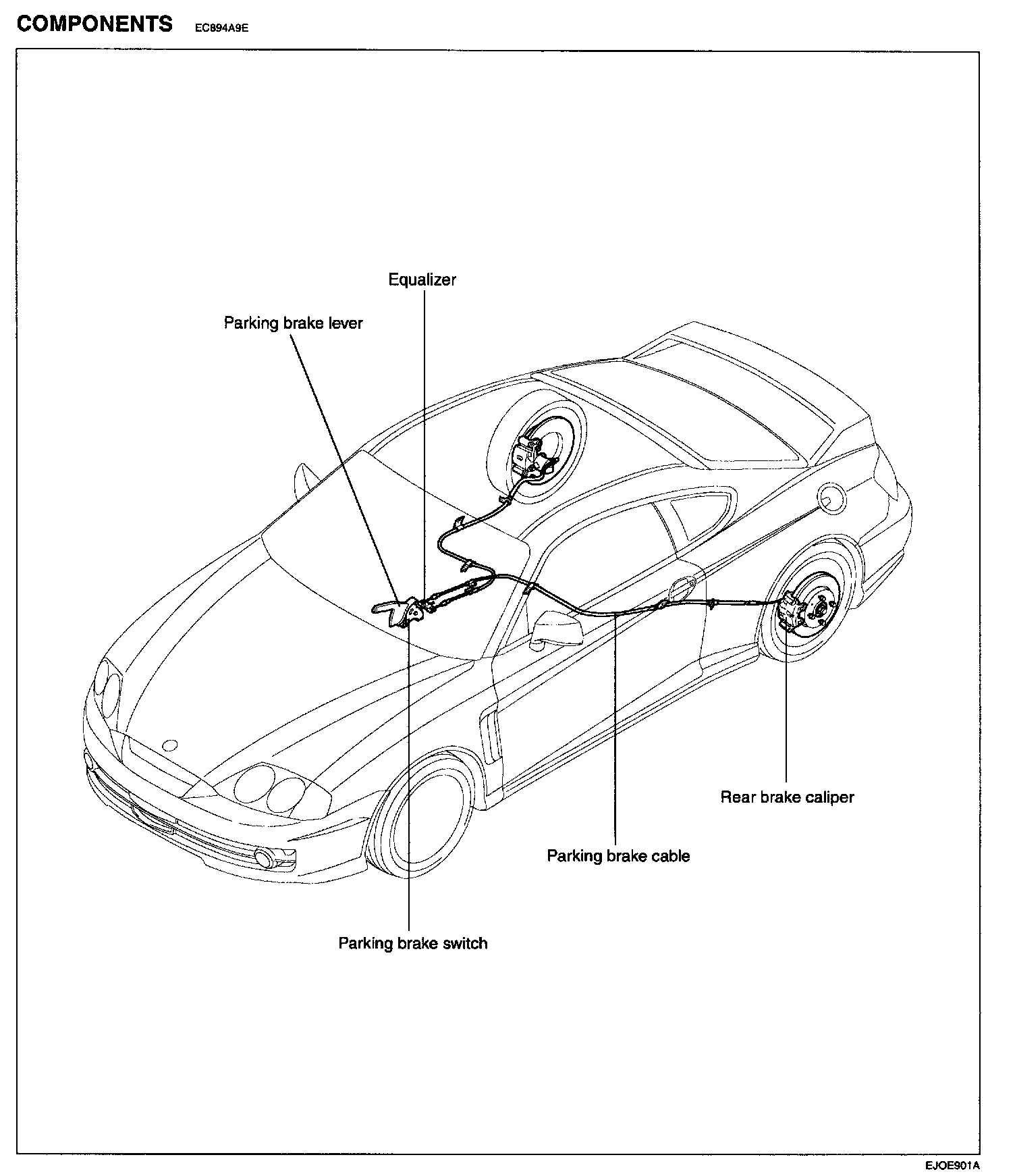

COMPONENTS:

REMOVAL

NOTE:
^ The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature failure.
^ Refer to the component as needed during this procedure.

REAR DISC BRAKE

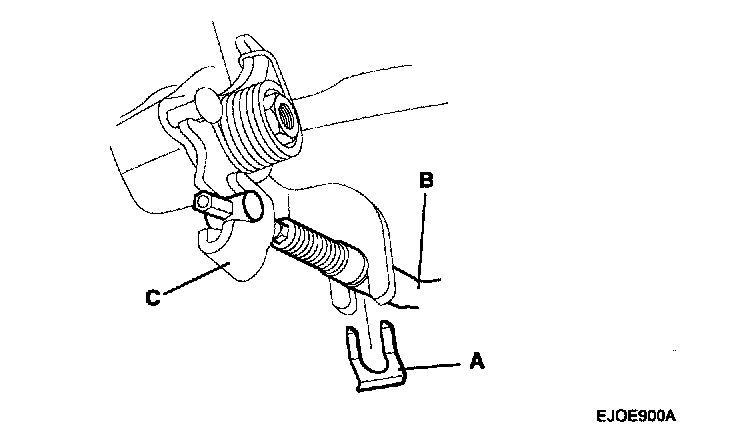

1. Release the parking brake lever fully, and remove the parking cable clip (A) from the parking brake cable.





2. Disconnect the parking brake cable (B) from the lever (C).
