Quarter Inner Trim

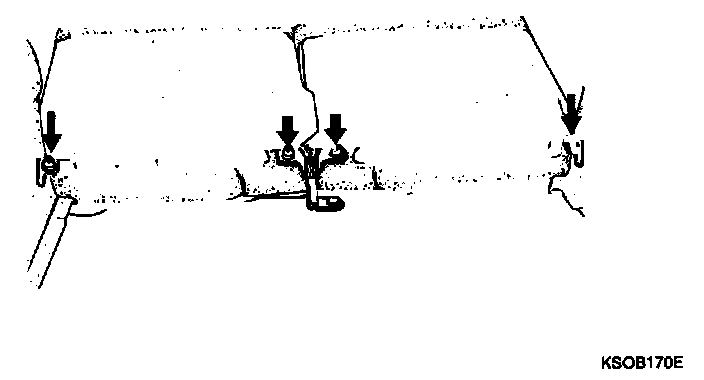

QUARTER INNER TRIM1. Remove the rear seat cushion mounting bolts from the rear seat cushion.
Tightening torque: 16.7-25.5 N.m (1.7-2.6 kgf.m, 12.3-18.8 lbf.ft)

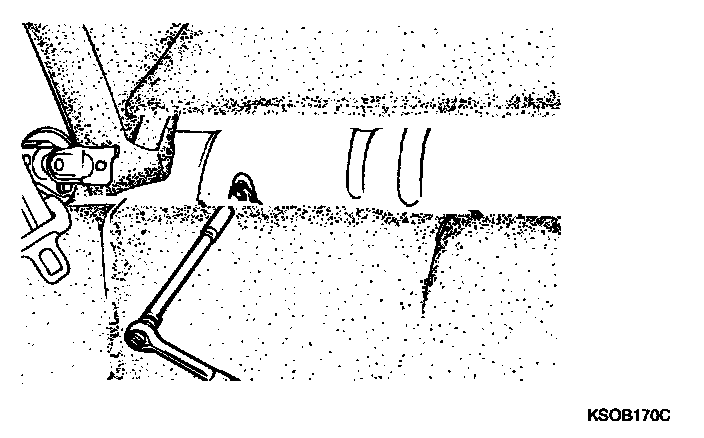

2. Remove the rear seat back mounting bolts from the rear seat back.
Tightening torque: 16.7-25.5 N.m (1.7-2.6 kgf.m, 12.3-18.8 lbf.ft)

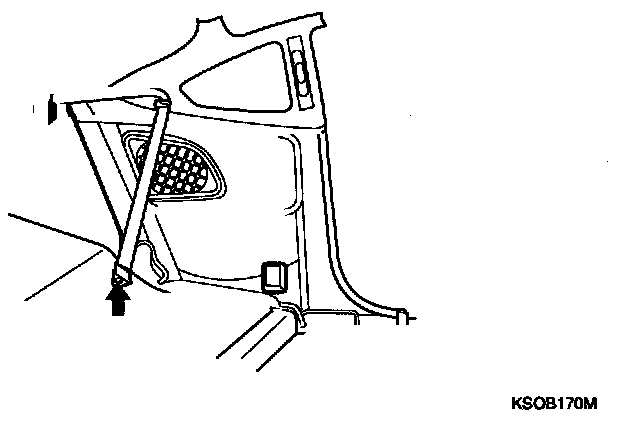

3. Remove the rear seat belt upper anchor mounting bolt.

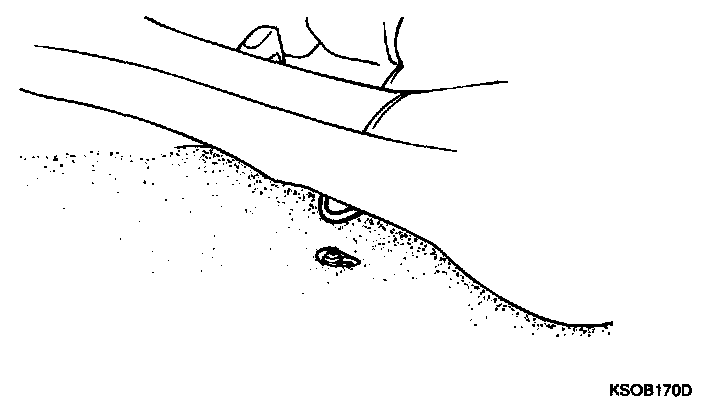

4. Remove the rear sear back lower anchor mounting bolt and remove rear seat belt.
Tightening torque: 39.2-49.0 N.m (4.0-5.0 kgf.m, 28.9-36.2 lbf.ft)

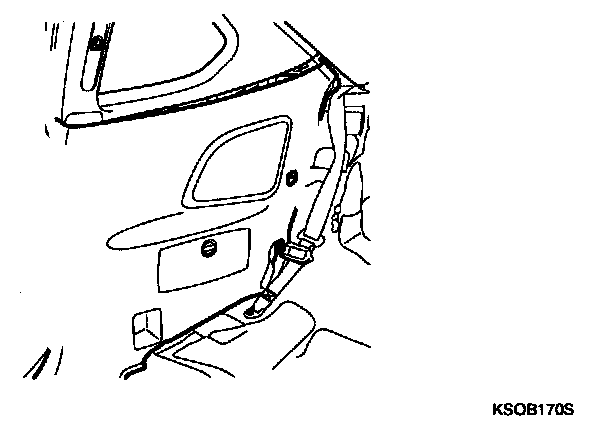

5. Remove the quarter inner trim mounting screws(4EA) from the quarter inner trim and remove the inner trim assembly.
