Front Fender: Service and Repair

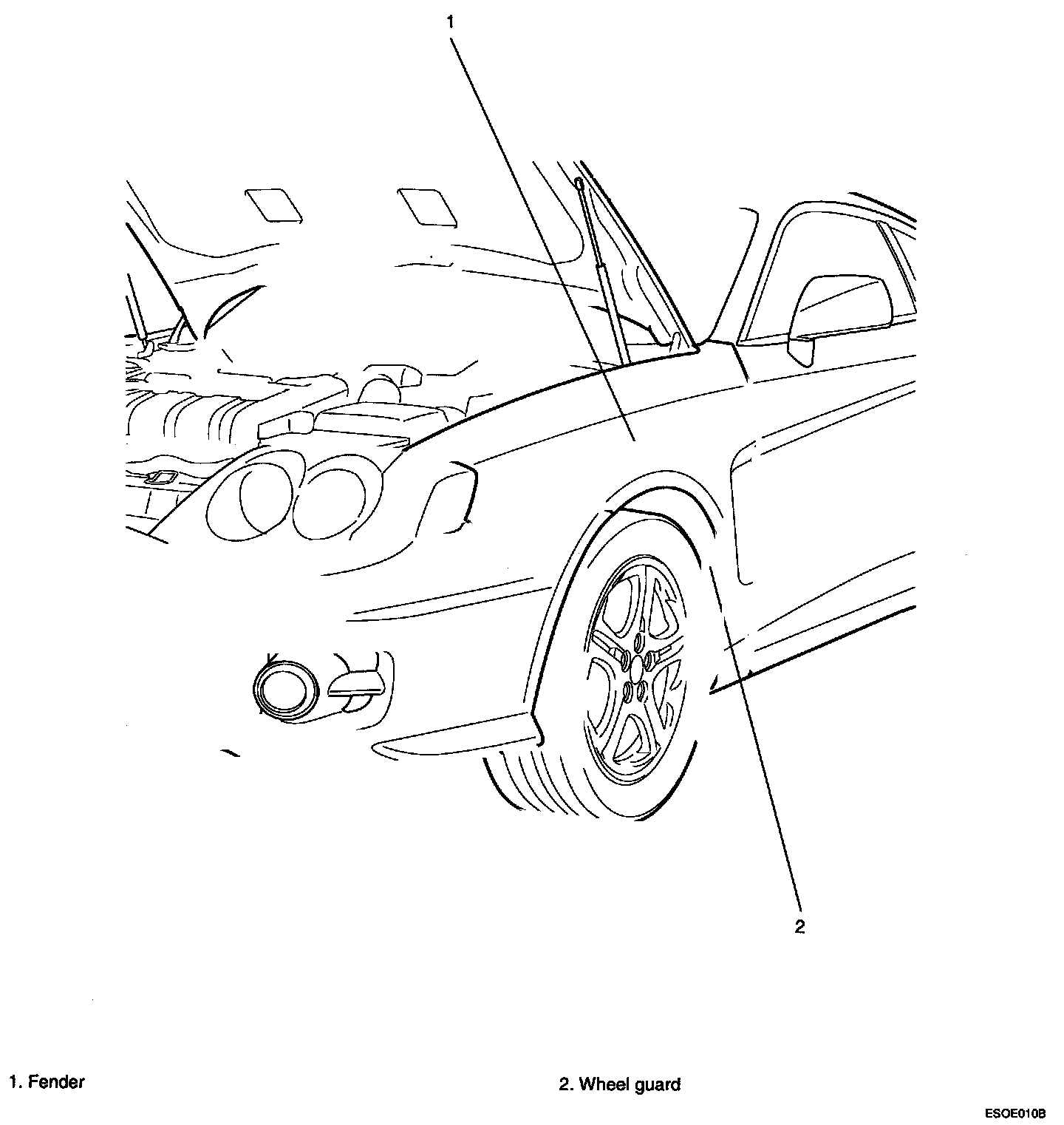

FENDER

Fender:

REMOVAL AND INSTALLATION

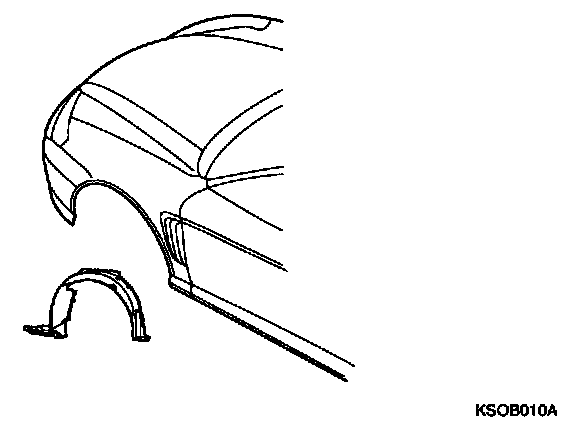

1. Remove the front mud guard and wheel guard.

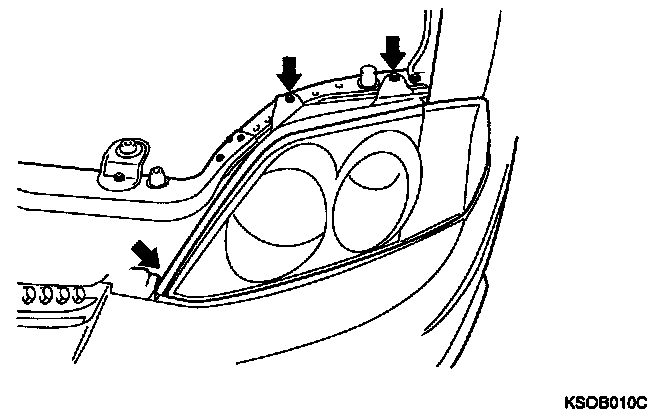

2. Remove the 3 bolts holding the head lamp and disconnect the wire connector.
Remove the head lamp assembly.






3. Remove the front bumper. (Refer to front bumper)

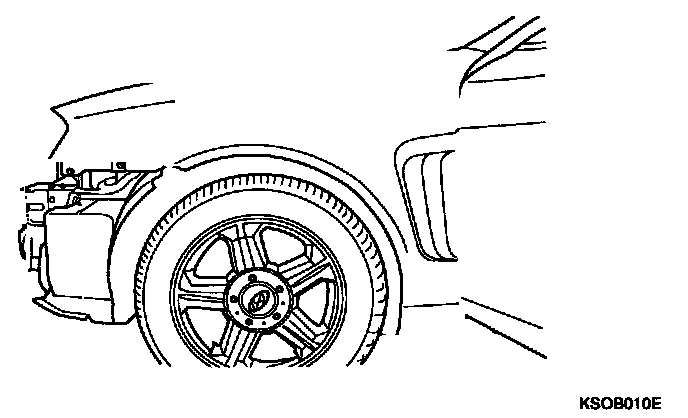

4. Remove the fender mounting bolts and remove the fender panel assembly.

CAUTION: Use care to avoid damaging the paint.






5. Installation is the reverse of the removal.

N0TE: In order to prevent the fender mounting bolt area from forming rust, apply tape sealer between the fender and the body panel.
