Remote Control: Testing and Inspection
AUDIO
REMOTE CONTROL
INSPECTION
1.

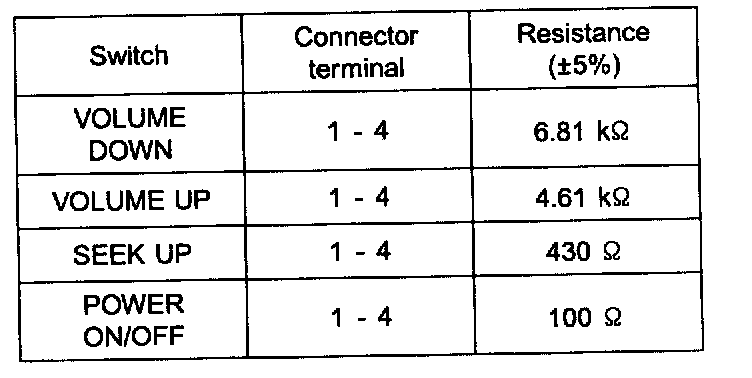

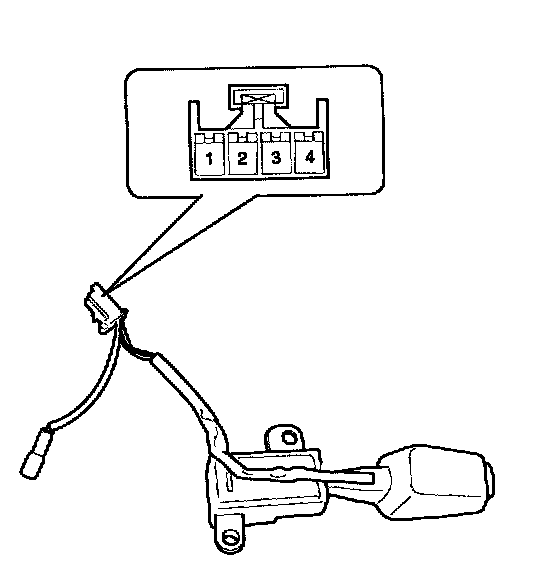

Check for resistance between No. 1 and No. 4 terminals in each switch position.
