Immobilizer States

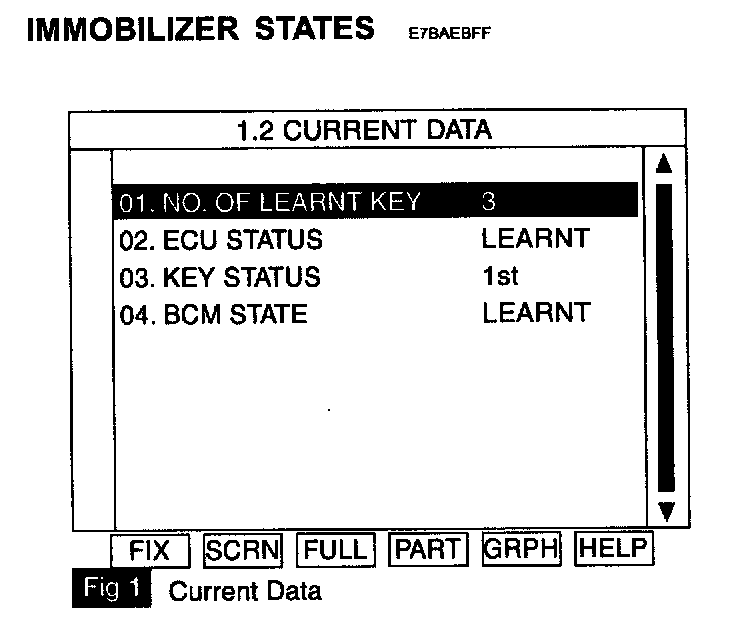

IMMOBILIZER STATES

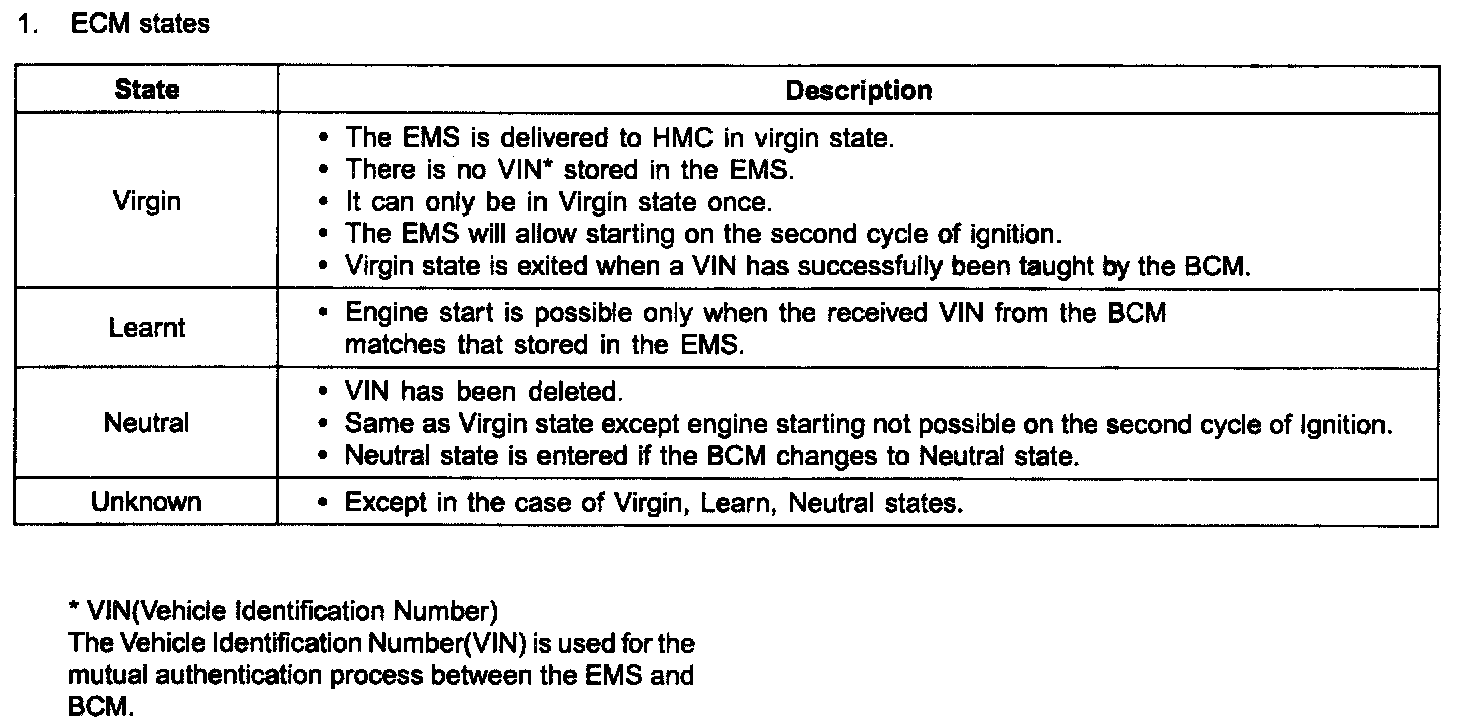

1. ECM states

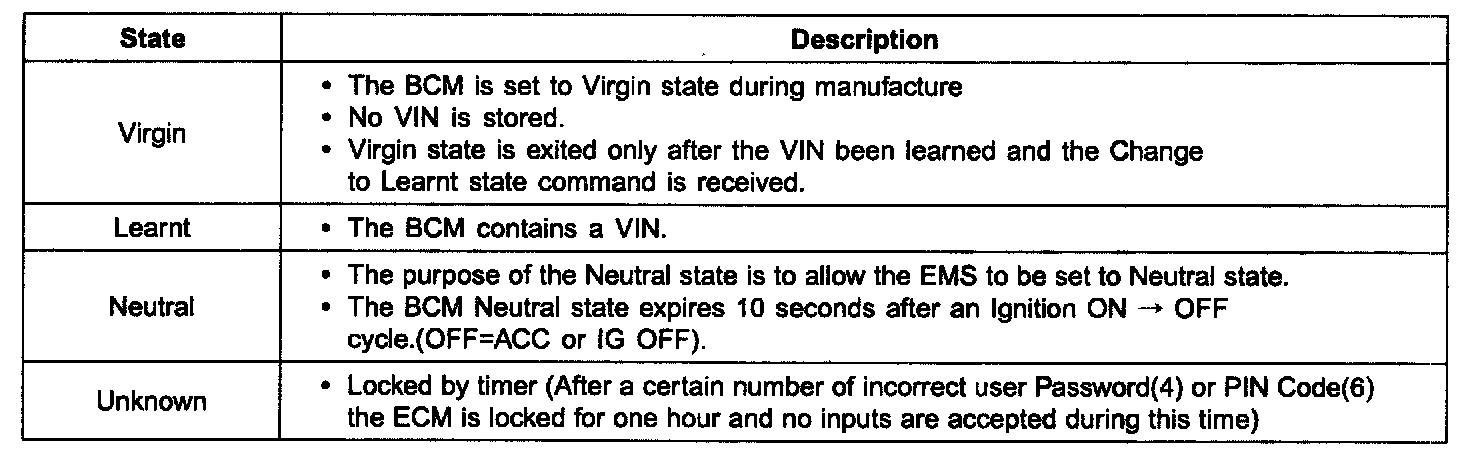

2. BCM (Body Control Module) states

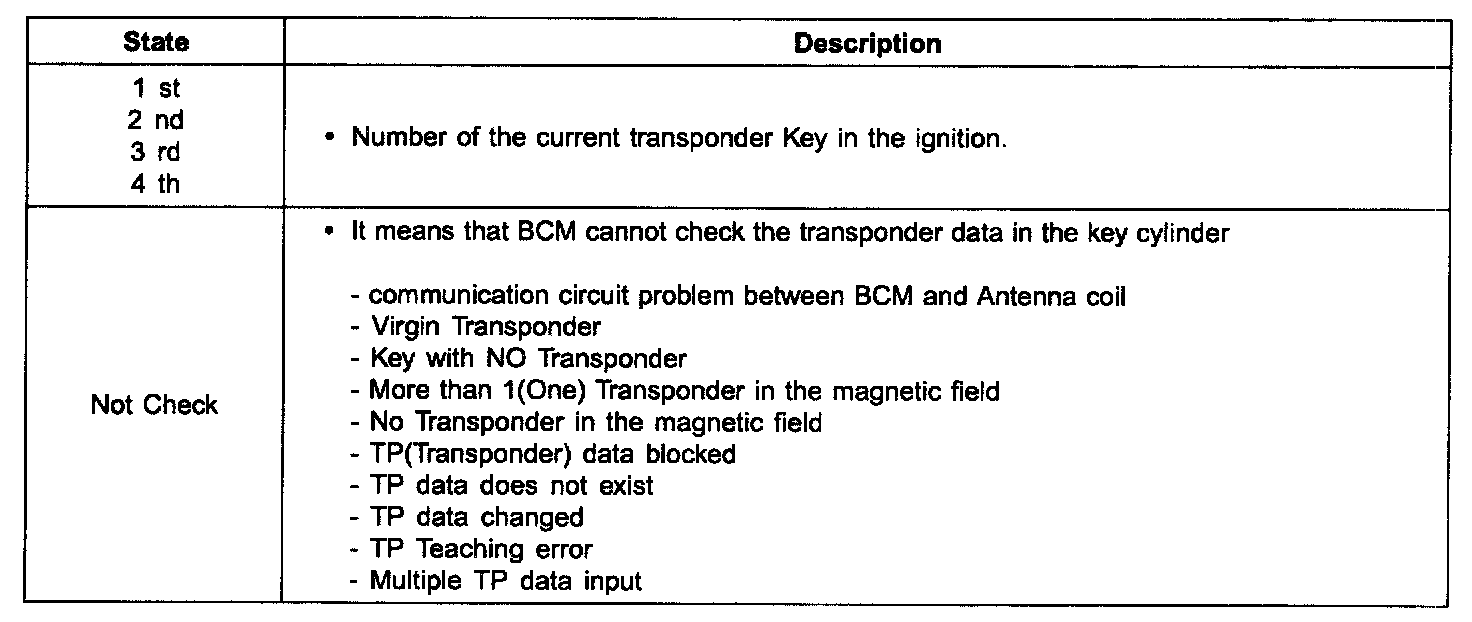

3. Key states
