Hydraulic Pressure Test
HYDRAULIC PRESSURE TEST1. Warm up the engine until the automatic transaxle fluid temperature is 80-100 degrees C (176-212 degrees F).
2. Jack up the vehicle so that the wheels are free to turn.

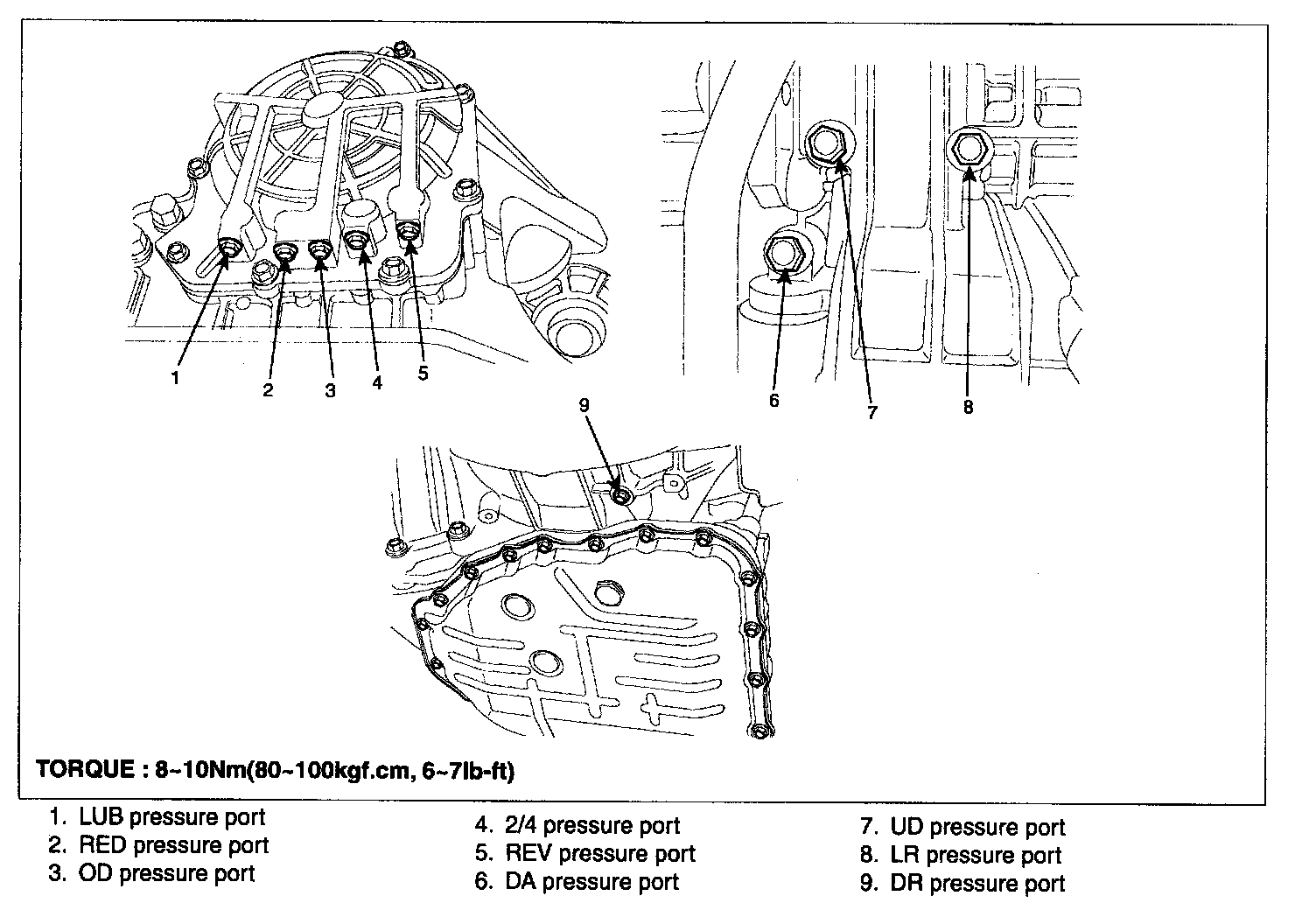

3. Connect the special tools (09452-21500, 09452-21000) oil pressure gauge to each pressure discharge port.
4. Measure the hydraulic pressure at each port under the conditions given in the standard hydraulic pressure table, and check that the measured values are within the standard value ranges.
5. If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table.
a. Bottom side

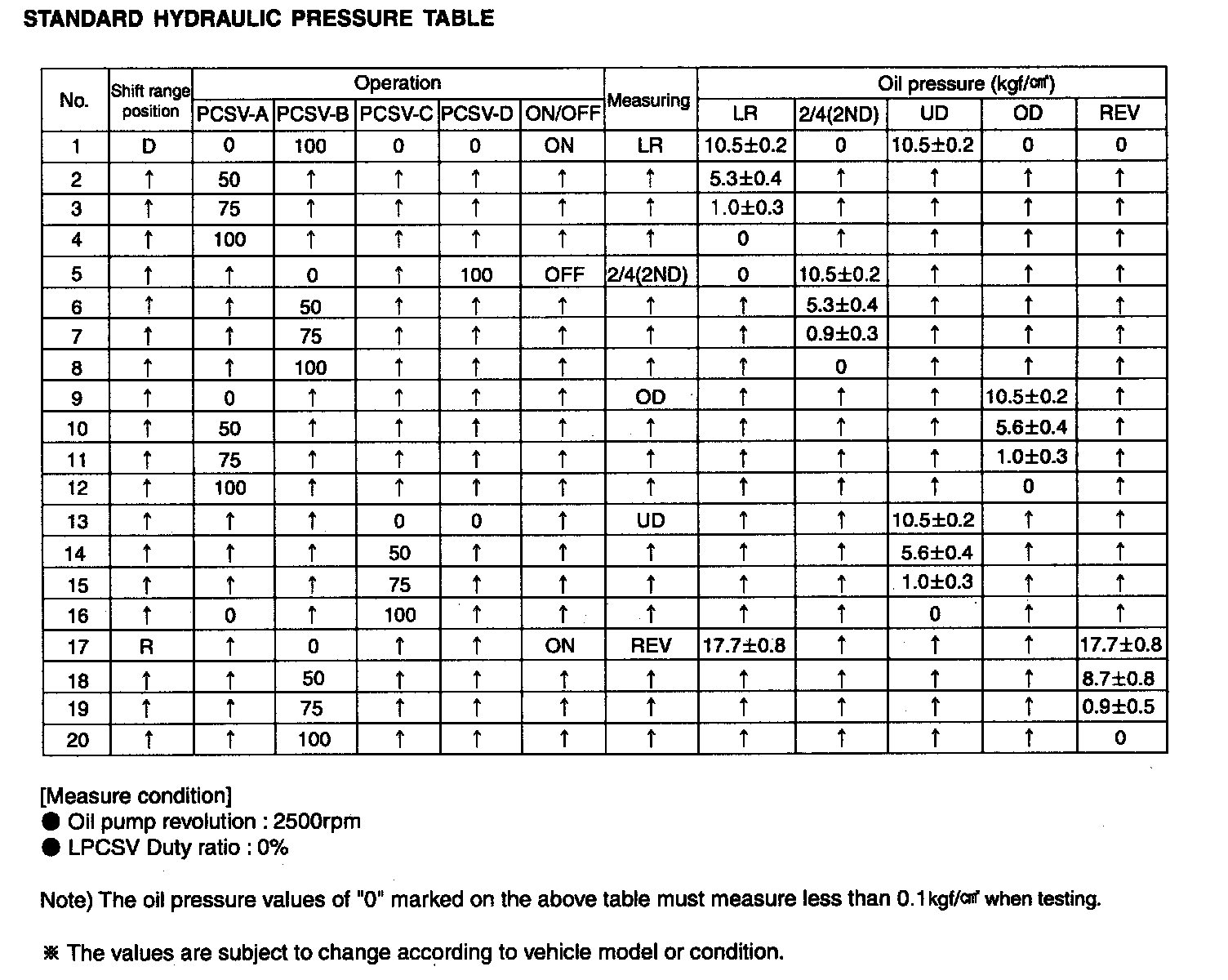

STANDARD HYDRAULIC PRESSURE TABLE
[Measure condition]
^ Oil pump revolution: 2500 rpm
^ LPCSV Duty ratio: 0%
Note) The oil pressure values of "0" marked on the above table must measure less than 0.1 kgf/cm2 when testing.
* The values are subject to change according to vehicle model or condition.
