Installation

FRONT STRUT

INSTALLATION

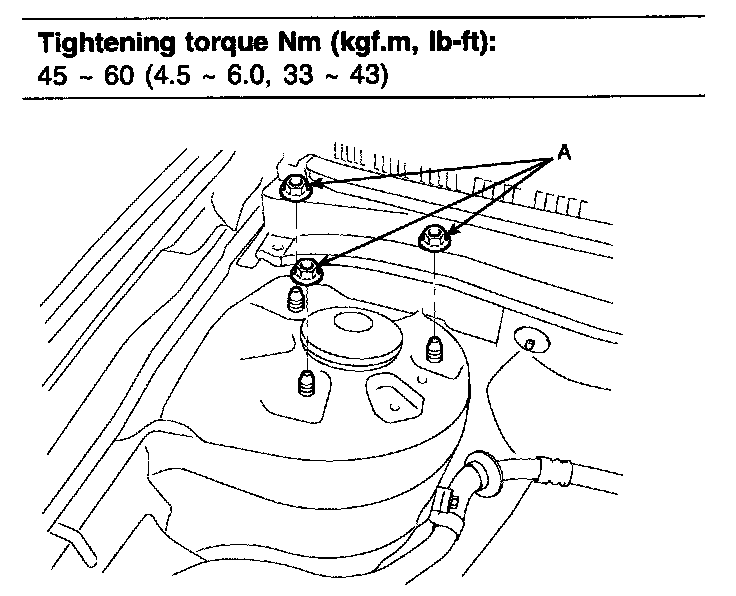

1. Install the front strut assembly to the wheel housing panel by tightening the mounting nuts (A).





2. Connect the front strut assembly (A) with the knuckle by tightening the bolts & nuts.

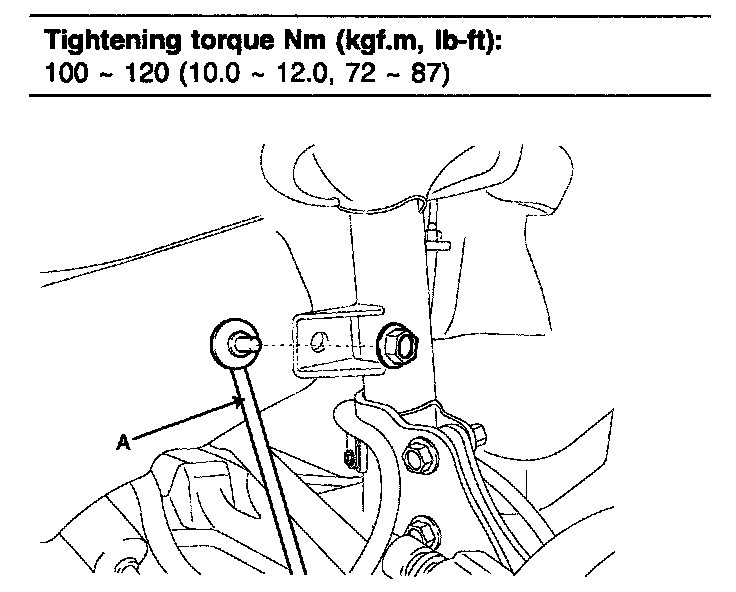

3. Install the stabilizer link (A) to the front strut assembly and then tighten the nut.





4. Install the brake hose and wheel speed sensor bracket to front strut assembly by tightening the mounting bolts (A).





5. Install the front wheel & tire.

Tightening torque Nm (kgf-m, lb-ft): 90-110 (9.0-11.0, 65-80)

CAUTION: Be careful not to damage to the hub bolts when installing the front wheel & tire.
