Fuel Filler Neck: Service and Repair

FILLER-NECK ASSEMBLY

REMOVAL
1. Disconnect the fuel filler hose (A), the leveling hose (B) and the vacuum hose (C).






2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).






3. Remove the rear-LH wheel, tire, and the inner wheel house.

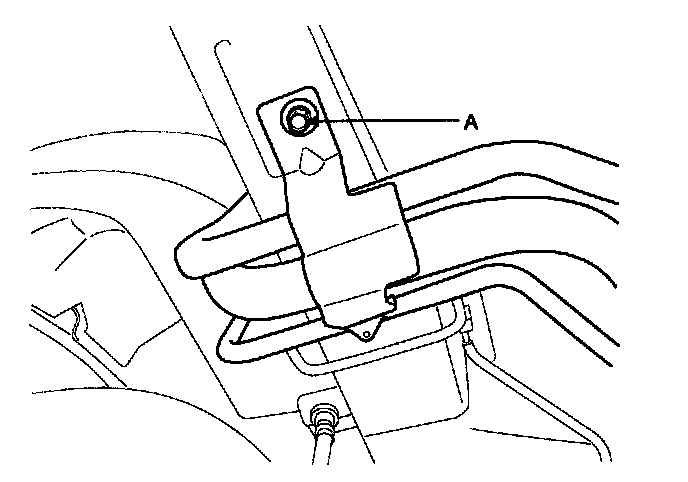

4. Remove the bracket mounting bolts (A) and remove the filler-neck assembly.






INSTALLATION
1. Installation is reverse of removal.
