Driver/Vehicle Information Display: Service and Repair

TRIP COMPUTER

REMOVAL
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster facia panel (A) after loosening 2 screws.

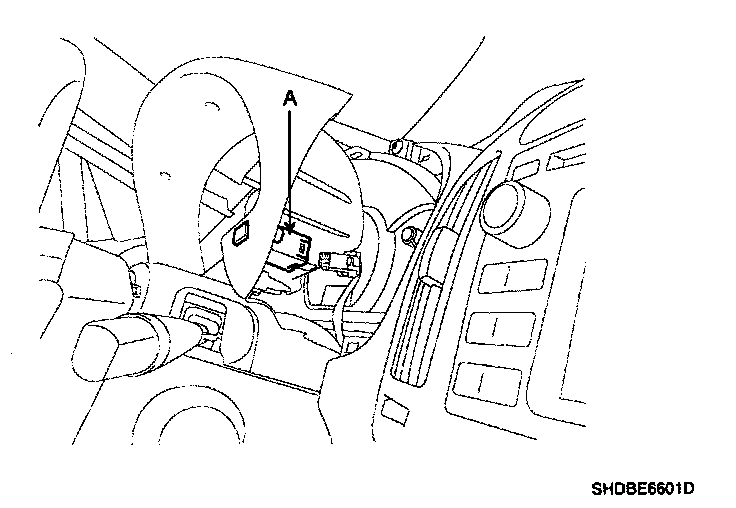

3. Remove the trip computer switch (A) from the cluster facia panel after disconnecting the trip computer connector.






INSTALLATION
1. Install the trip computer to the cluster facia panel.
2. Install the cluster facia panel.

INSPECTION
1. Remove the cluster facia panel (B).
2. Operate the switch (A) and check for continuity between terminals with an ohmmeter.
