Driver/Vehicle Information Display: Description and Operation

TRIP COMPUTER

DESCRIPTION

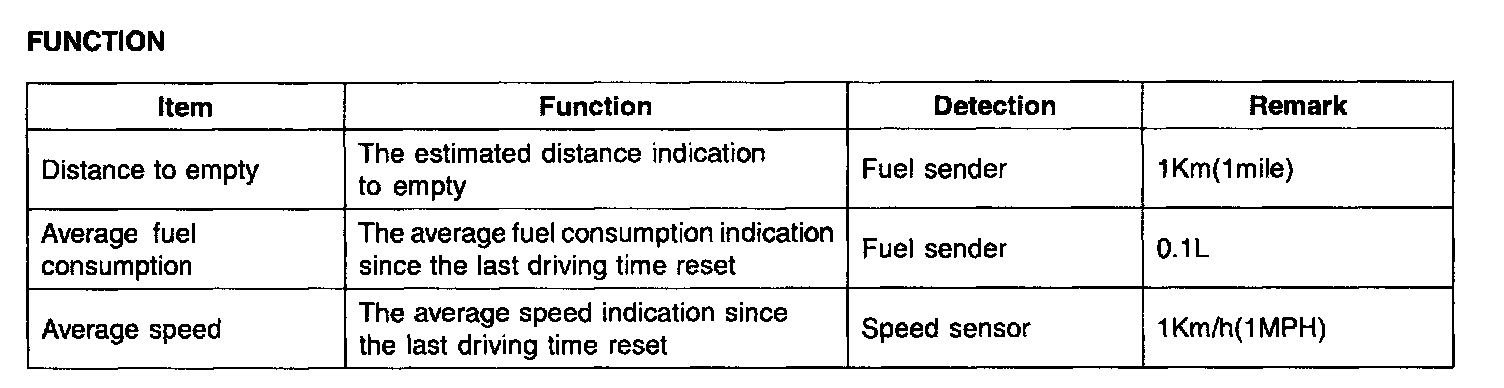

The trip computer displays information related to driving, including distance to empty, average speed and average fuel consumption on this display.

To change the function as described below, push the mode button less than 2 second.

Distance to empty [1] -> Average fuel consumption [2] -> Average speed [3] -> TRIP [4] -> Distance to empty [1].






OPERATION

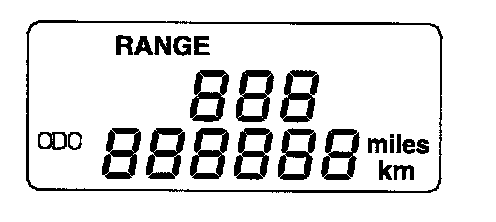

DISTACE TO EMPTY MODE

External Amplifier:

1. Description
This mode indicates the estimated distance to empty based on the current fuel in the fuel thank and the amount of fuel delivered to the engine.

2. Indication range 50 Km - 999 Km (30 miles - 999 miles)
3. Indication division : 1 Km (mile)
When the remaining distance is below 50 Km (30 miles), a blinking "---" symbol will be displayed. (Blinking interval : 0.6 sec.)

4. Data clear: at battery + off

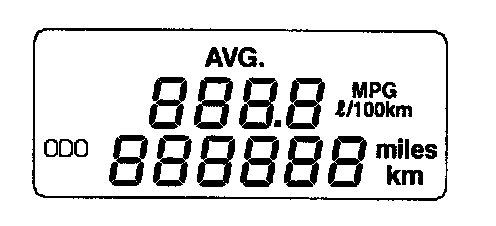

AVERAGE FUEL CONSUMPTION MODE






1. Description
This mode calculates the average fuel consumption from the total used fuel and the distance after reconnecting the batter or resetting the data.

2. Indication range : 0.1 L - 199.9 L/100 Km or MPG (mile per gallon)
3. Indication division : 0.1 L/100 Km (MPG)
When there is no pulse signal on vehicle speed after reconnecting the battery or resetting the data, "---L/100 Km (MPG)" symbol will be displayed.

4. Indication interval: 10 sec.
5. Data clear: press the reset button for more than 1 sec. or Battery + on

AVERAGE SPEED MODE






1. Description
This mode indicates the estimated speed by the driving distance to the indication timing after reconnecting the batter or resetting the data.

2. Indication range : 0 Km/h (MPH) - 999 Km/h (MPH)
3. Indication division : 1 Km/h (MPH)
When the battery is reconnected or the data are reset, "---" symbol will be displayed until the timing.

4. Indication interval : 10 sec.
5. Data clear: press the reset button for more than 1 sec. or Battery + on
