Home >> Hyundai >> 2008 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> System Diagram >> Electronic Stability Control (ESC) >> ESC Circuit Diagram (1)

ESC Circuit Diagram (1)

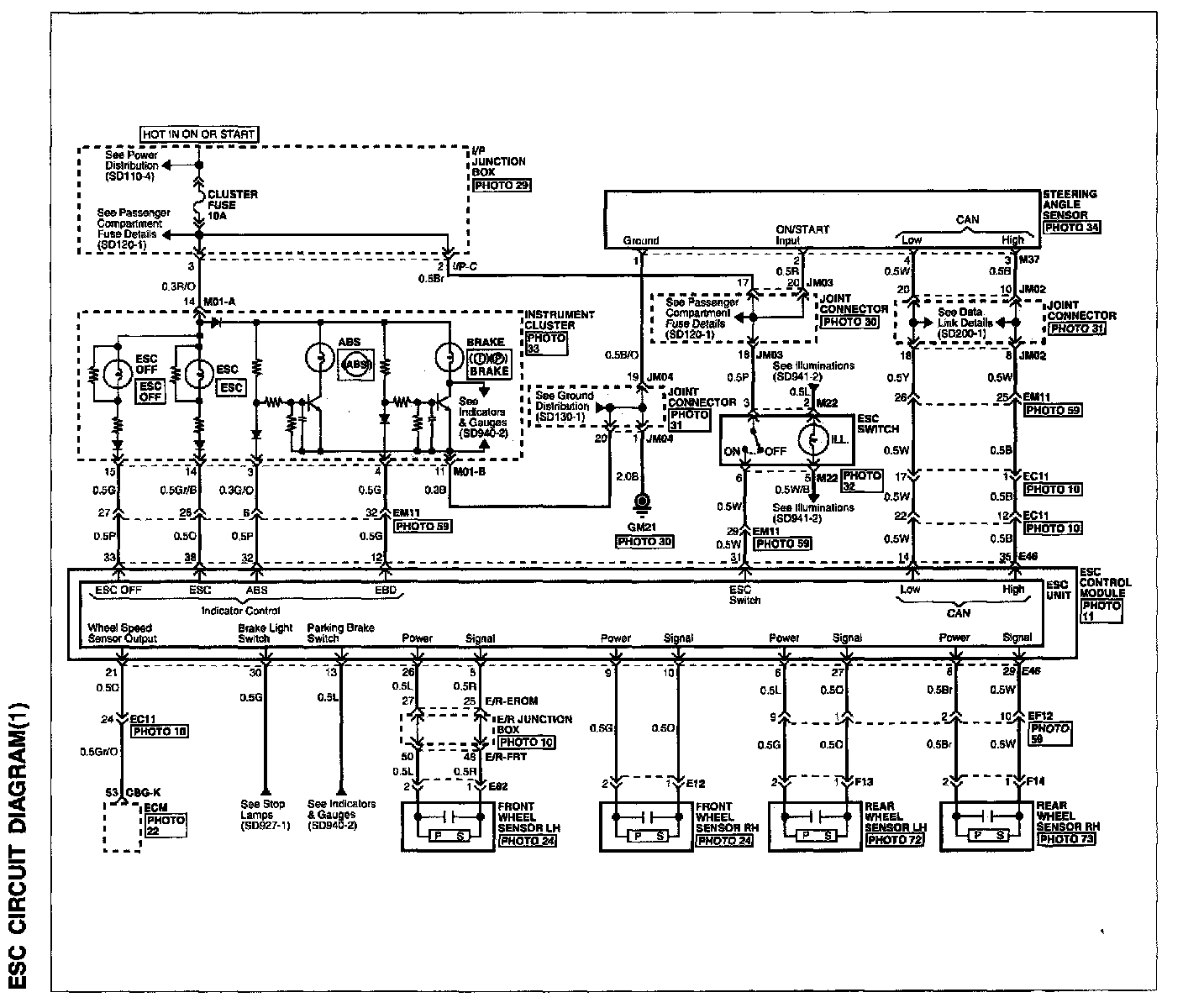

ESC CIRCUIT DIAGRAM (1)

ESC CIRCUIT DIAGRAM (1):
