Home >> Hyundai >> 2008 >> Elantra L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

ESC HECU CONNECTOR INPUT/OUTPUT

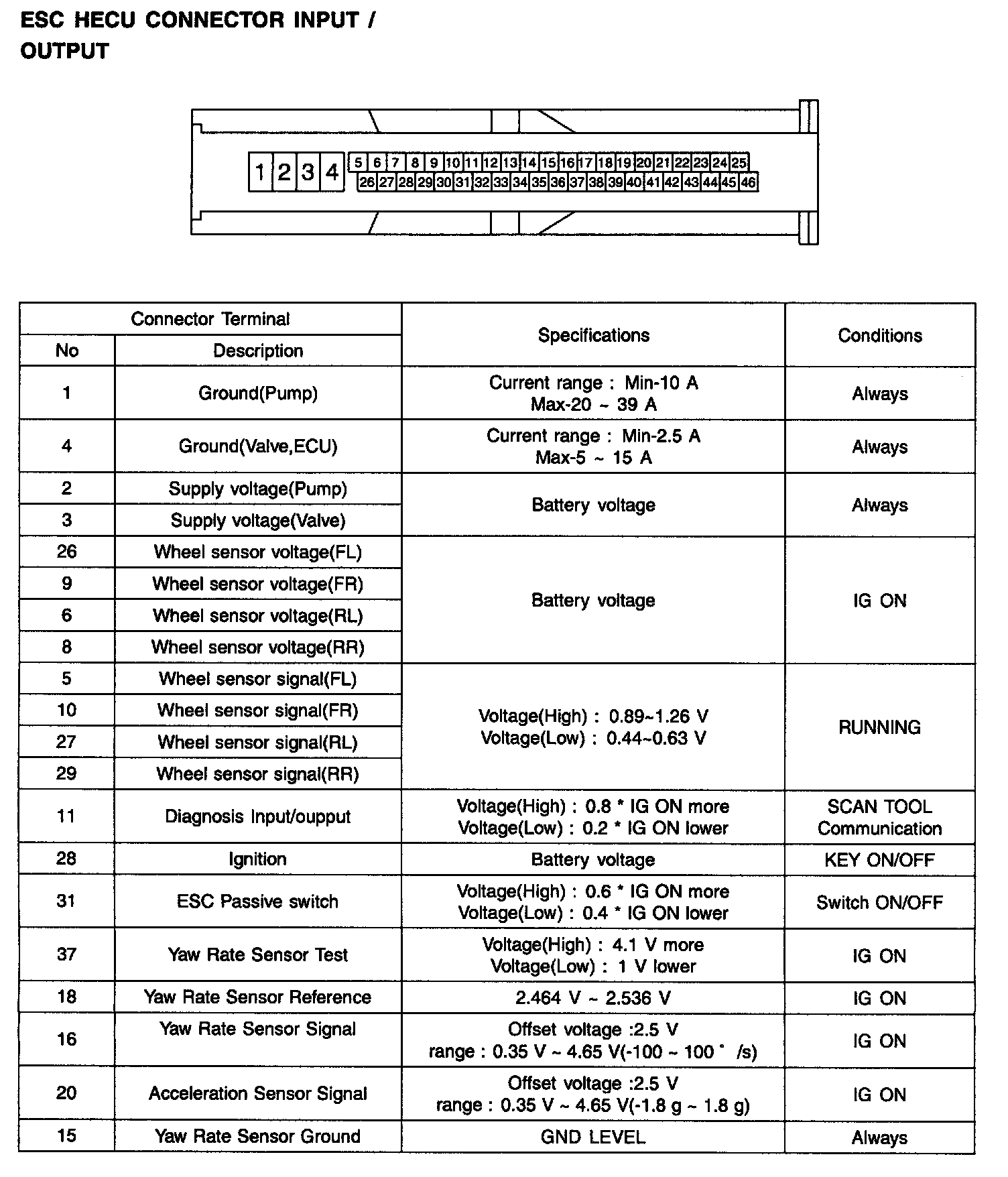

ESC HECU CONNECTOR INPUT/OUTPUT (Part 1):

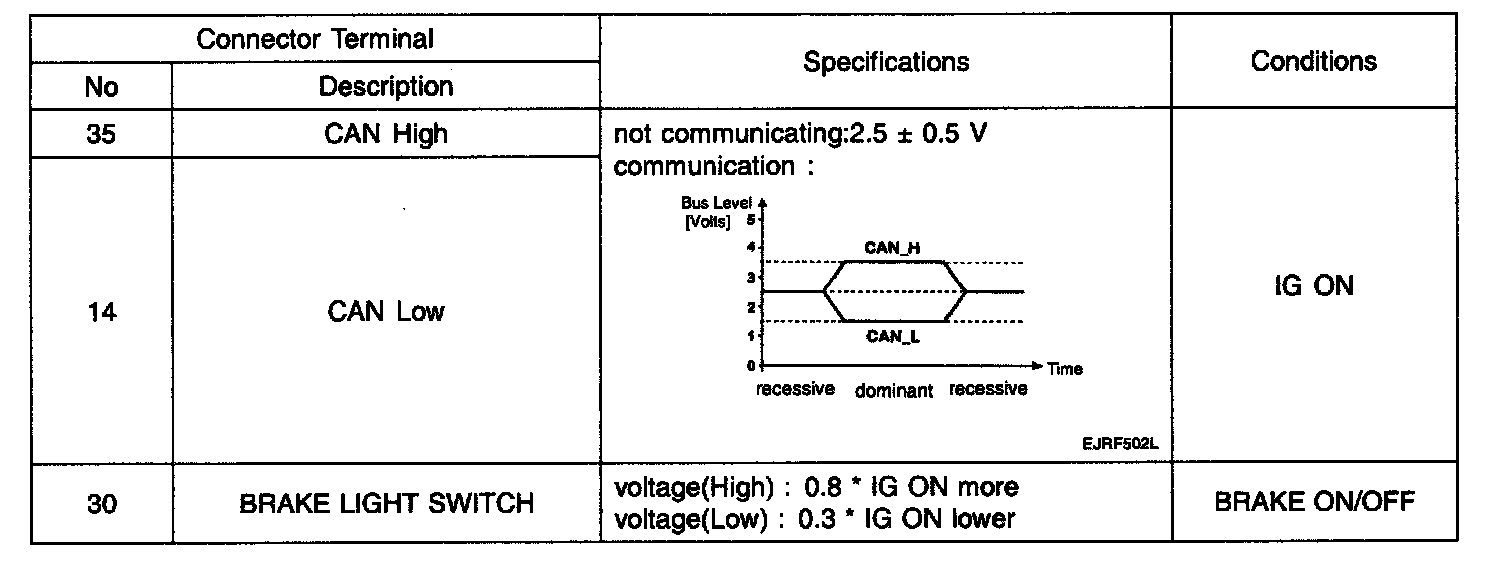

ESC HECU CONNECTOR INPUT/OUTPUT (Part 2):
