ABS Control

ABS CONTROL

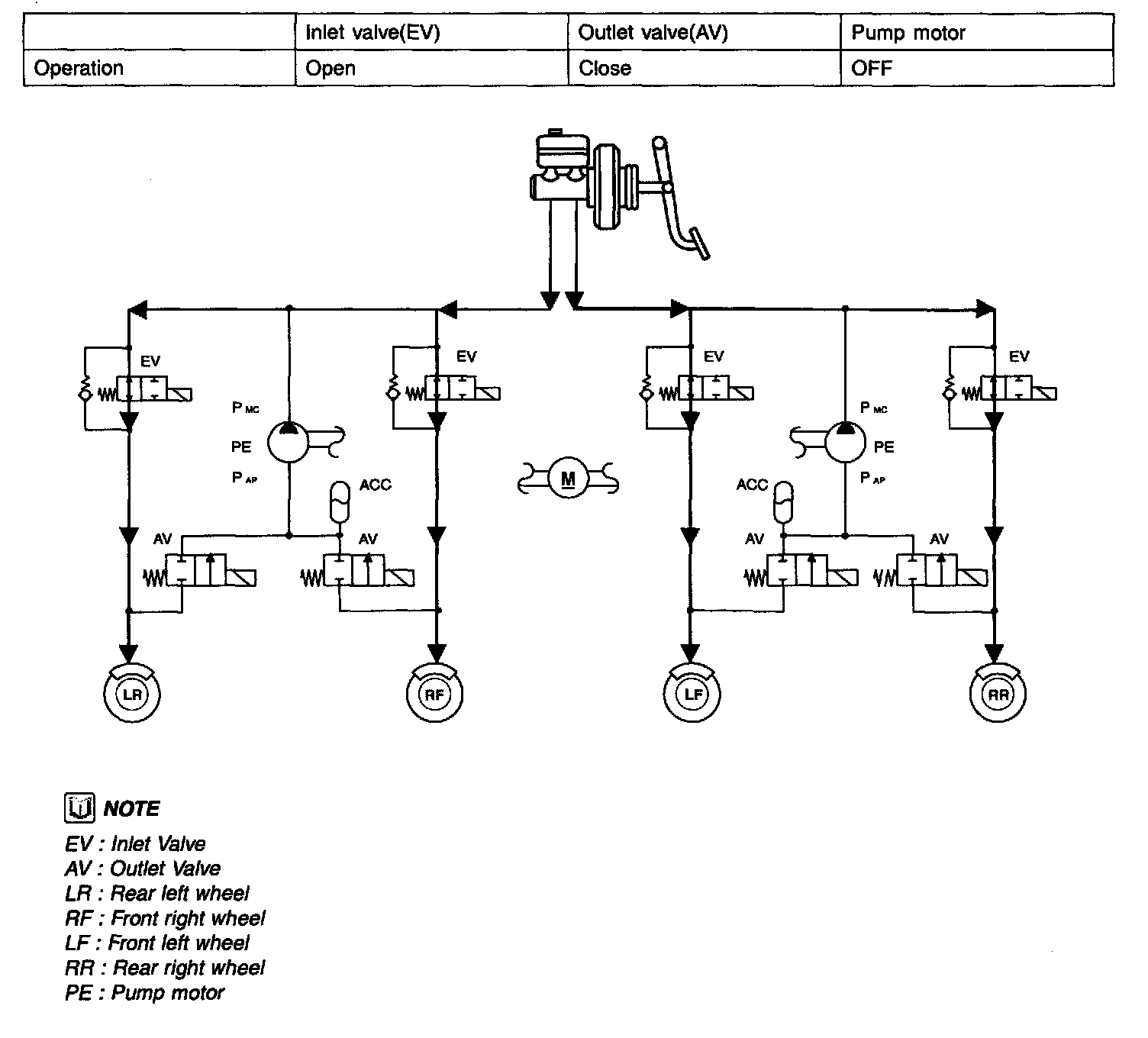

1. NORMAL BRAKING without ABS

NORMAL BRAKING without ABS:

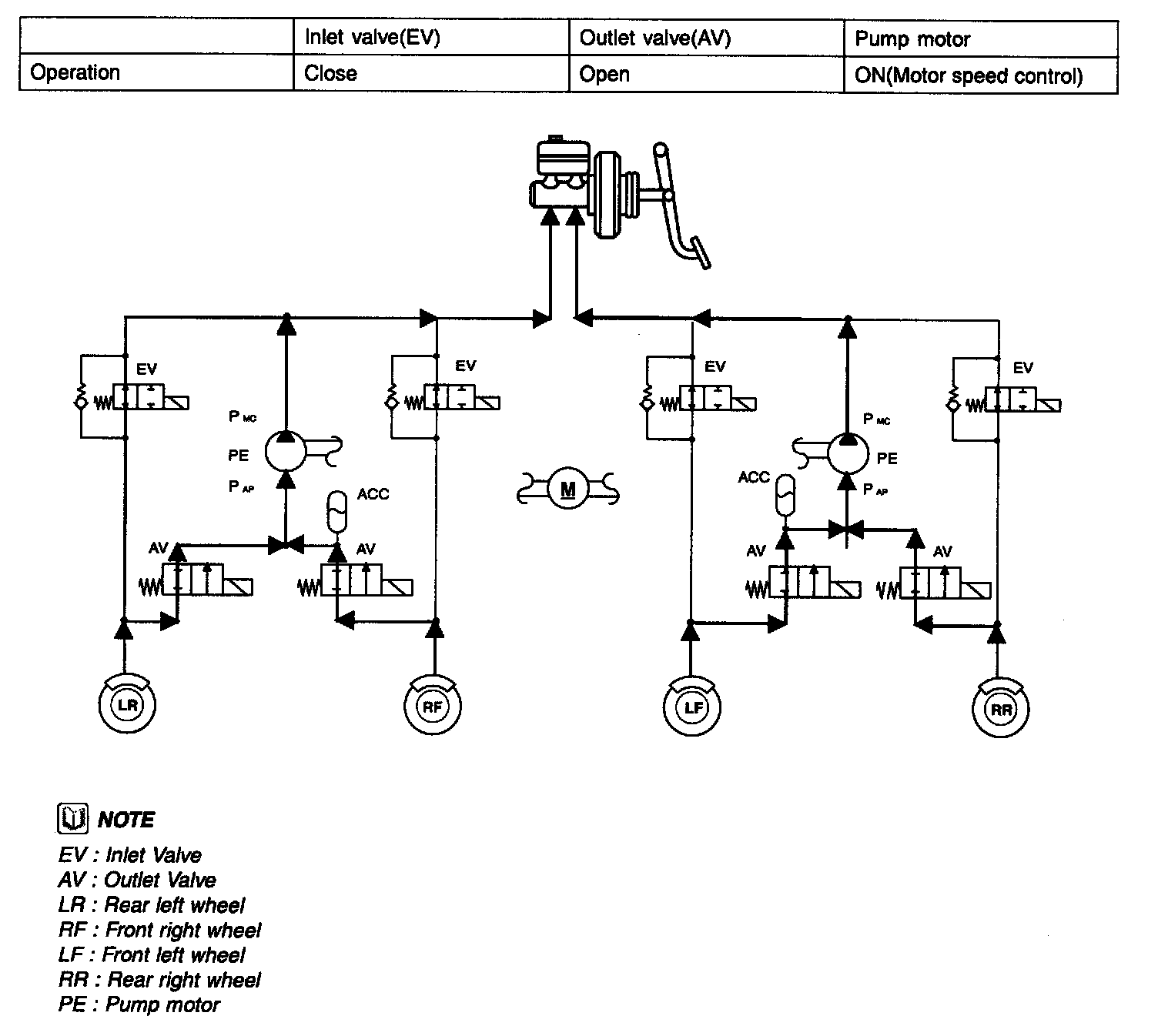

2. DECREASE MODE

DECREASE MODE:

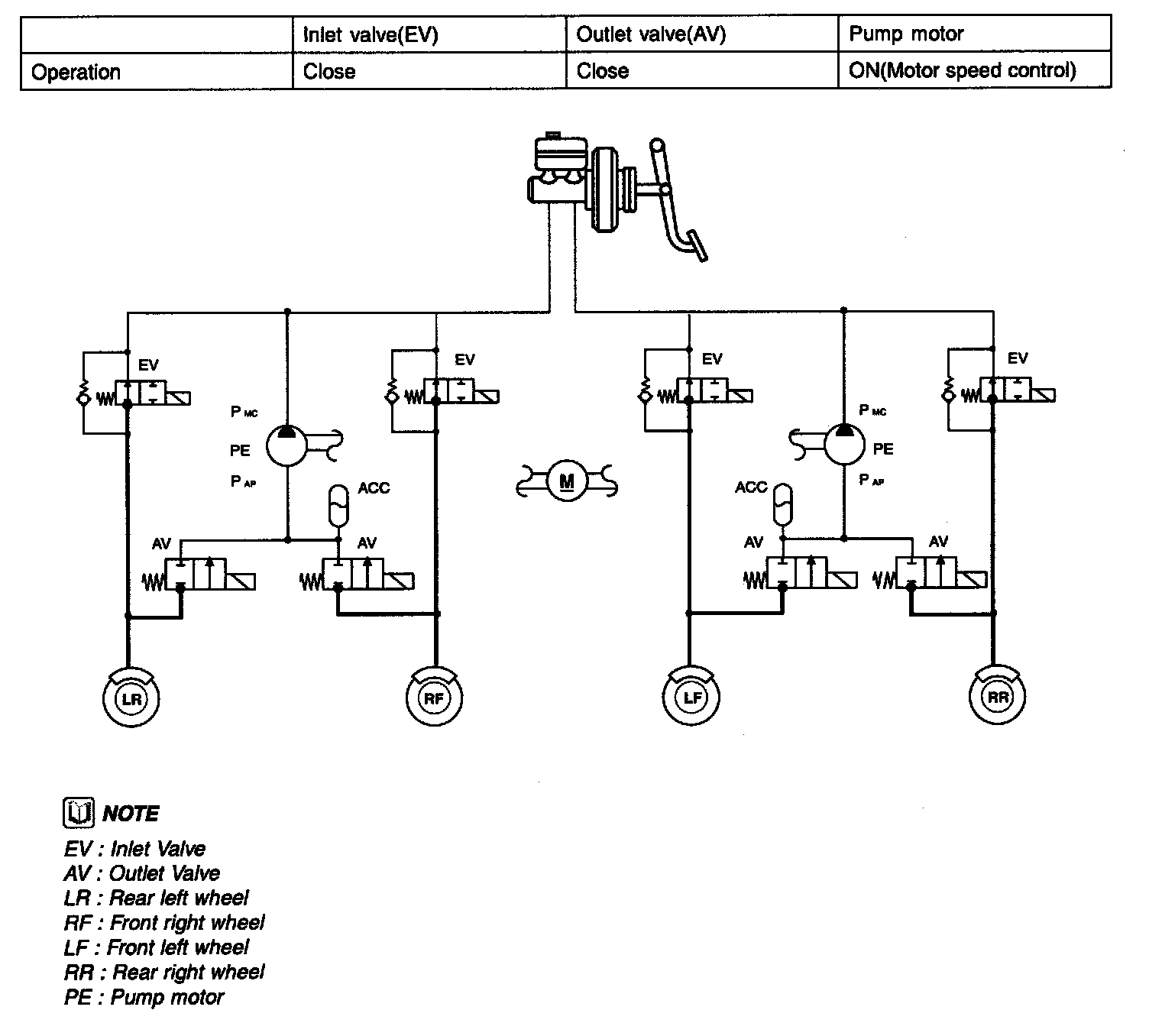

3. HOLD MODE

HOLD MODE:





4. INCREASE MODE

INCREASE MODE:
