Sunroof Assembly Replacement

SUNROOF ASSEMBLY REPLACEMENT

1. Remove the follows parts.
- Door scuff trim.
- Front pillar trim.
- Center pillar trim.
- Rear pillar trim.
- Headlining.
- Sunroof glass.

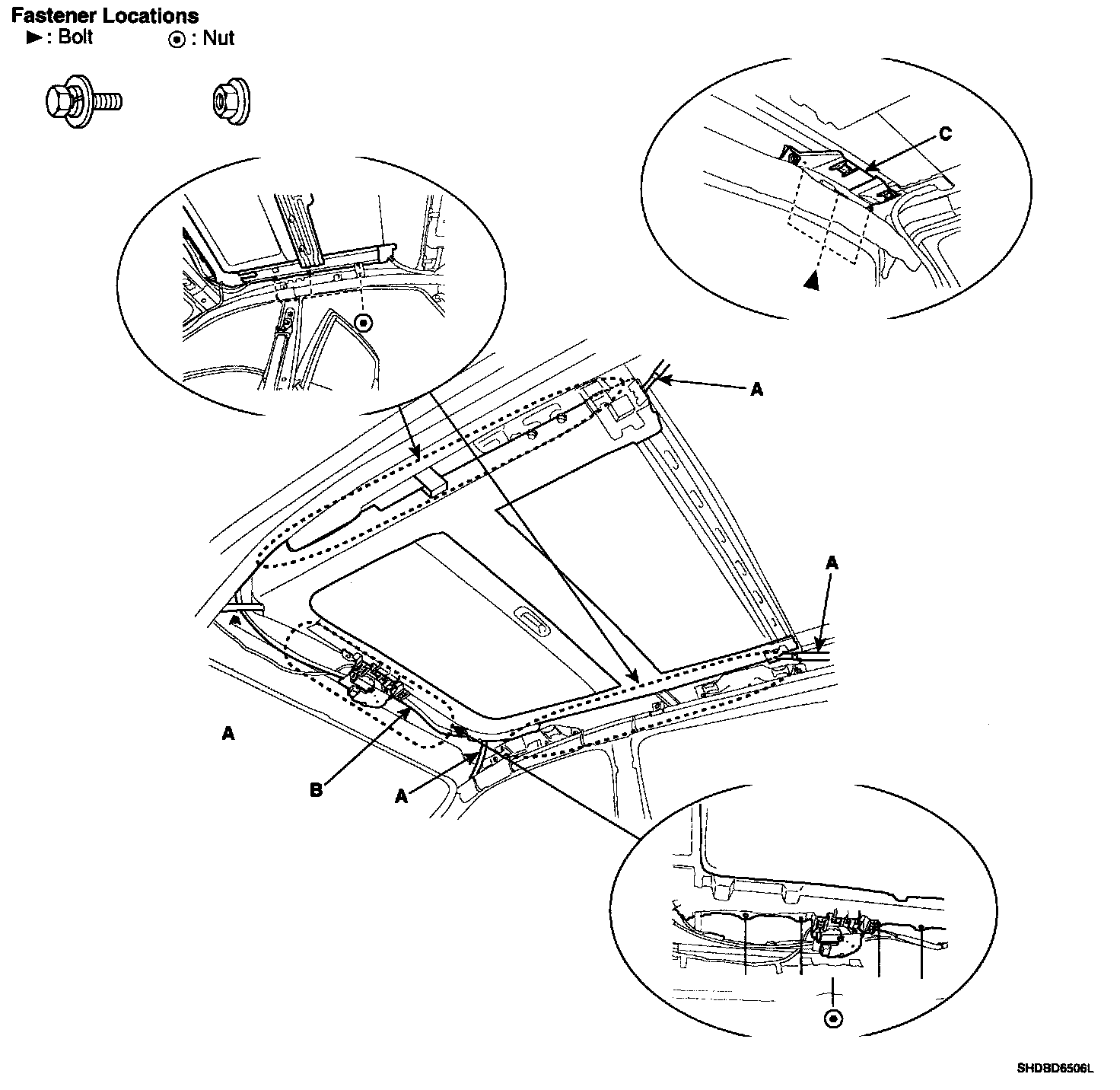

2. Disconnect the drain tubes (A).
3. Remove the bracket (C).
4. After loosening the mounding bolts and nuts, remove the sunroof assembly (B).

NOTE: Take care not to scratch the interior trims and other parts.

5. Installation is the reverse of removal.
