Lower Crash Pad Panel Removal and Installation

LOWER PANEL REPLACEMENT

1. Remove the crash pad side cover.

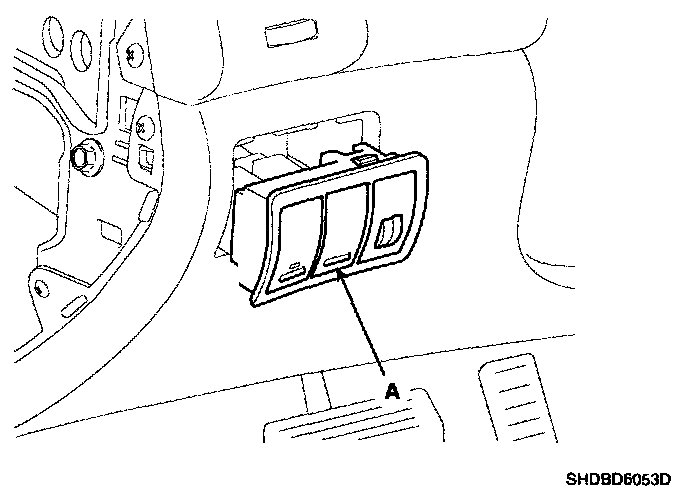

2. Remove the switch assembly (A).

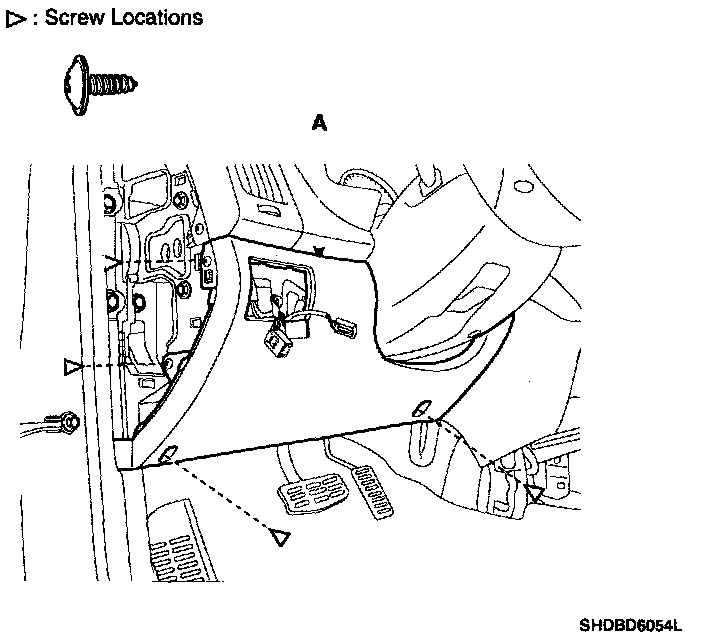

3. After loosening the crash pad lower panel mounting screw, then remove the lower panel (A).

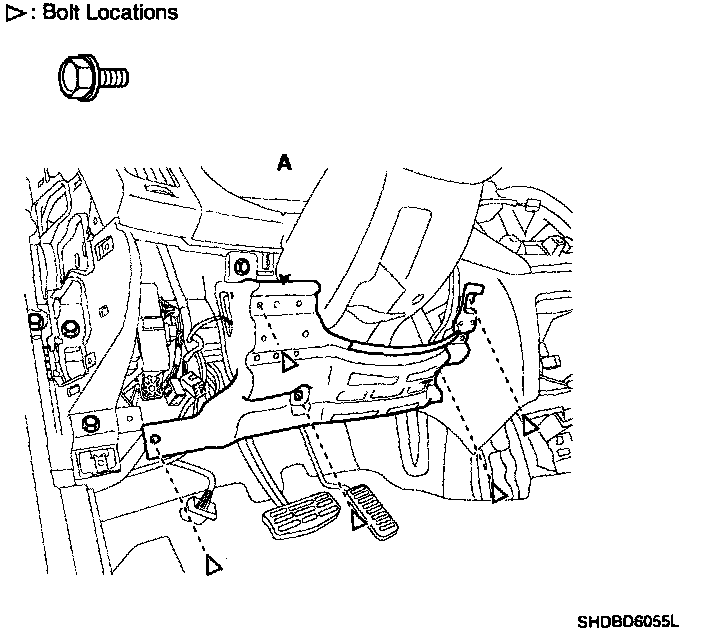

4. Remove the reinforcing panel (A).






5. Installation is the reverse of removal.
