Rear Wiper Motor

REAR WIPER MOTOR

INSPECTION
1. Remove the connector from the rear wiper motor.

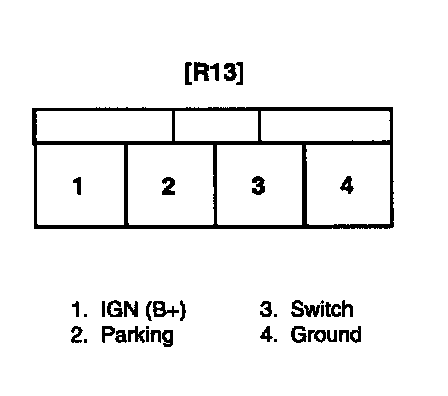

2. Connect battery positive (+) and negative (-) cables to terminals 3 and 4 respectively.




3. Check that the motor operates normally. Replace the motor if it operates abnormally.
